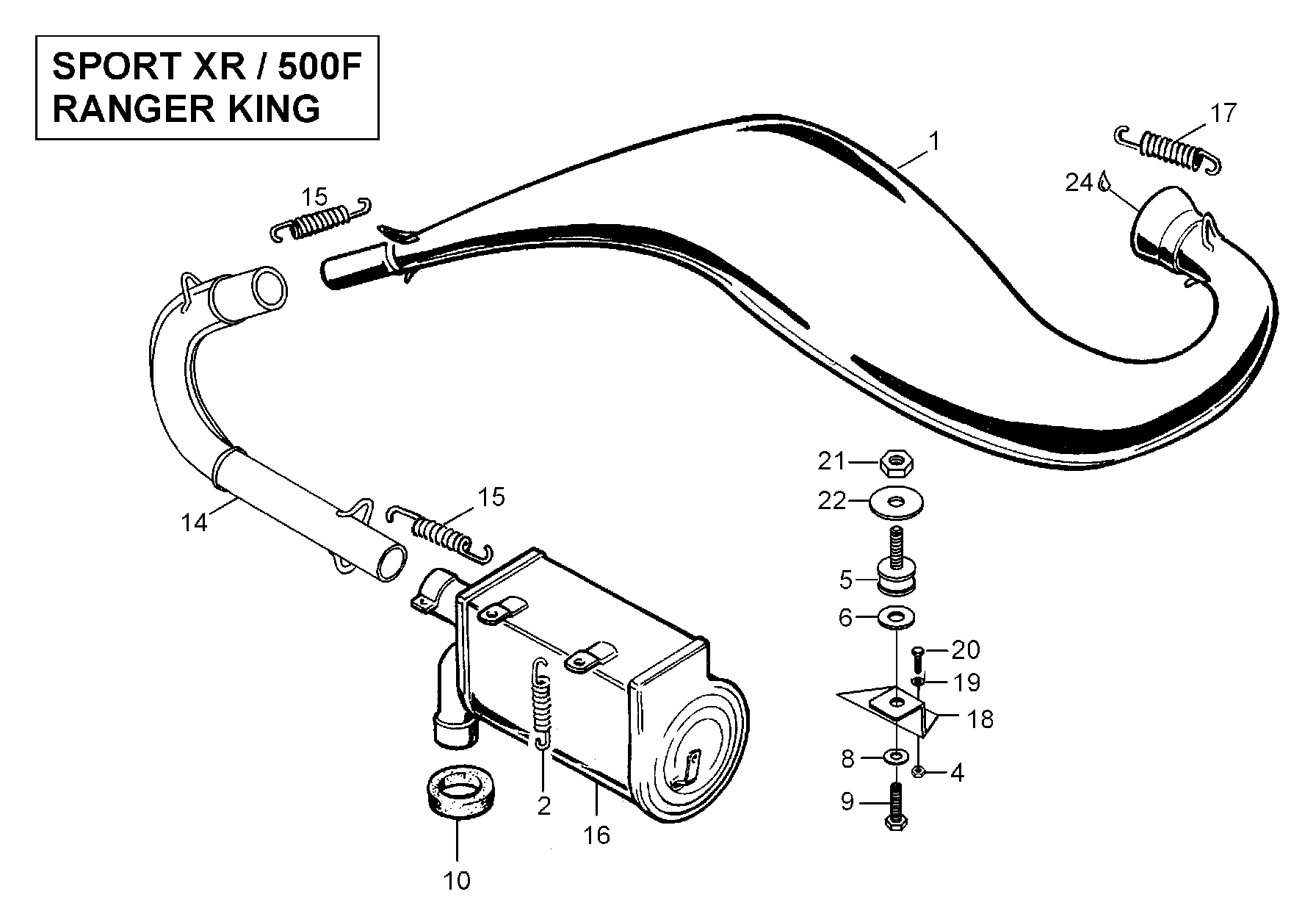

01- Muffler для BRP Lynx Sport XR - 1999
-
№АртикулНазвание
-
15141404 MufflerMuffler
-
2420938795 SpringSpring
-
433011 Nut elastic M8Nut elastic M8
-
528245 Rubber stopperRubber stopper
-
6543547 WasherWasher
-
820014 Lock washerLock washer
-
940116 Screw M8x12Screw M8x12
-
10570039000 Rubber flangeRubber flange
-
145341367 Tail pipeTail pipe
-
15414851600 SpringSpring
-
16514038600 After muflerAfter mufler
-
17414893700 SpringSpring
-
185341406 Muffler supportMuffler support
-
1920004 WasherWasher
-
2040035 Screw M8x16Screw M8x16
-
2133011 Lock nut M8Lock nut M8
-
2220010 WasherWasher
-
24413710300 Loctite 17914Loctite 17914
