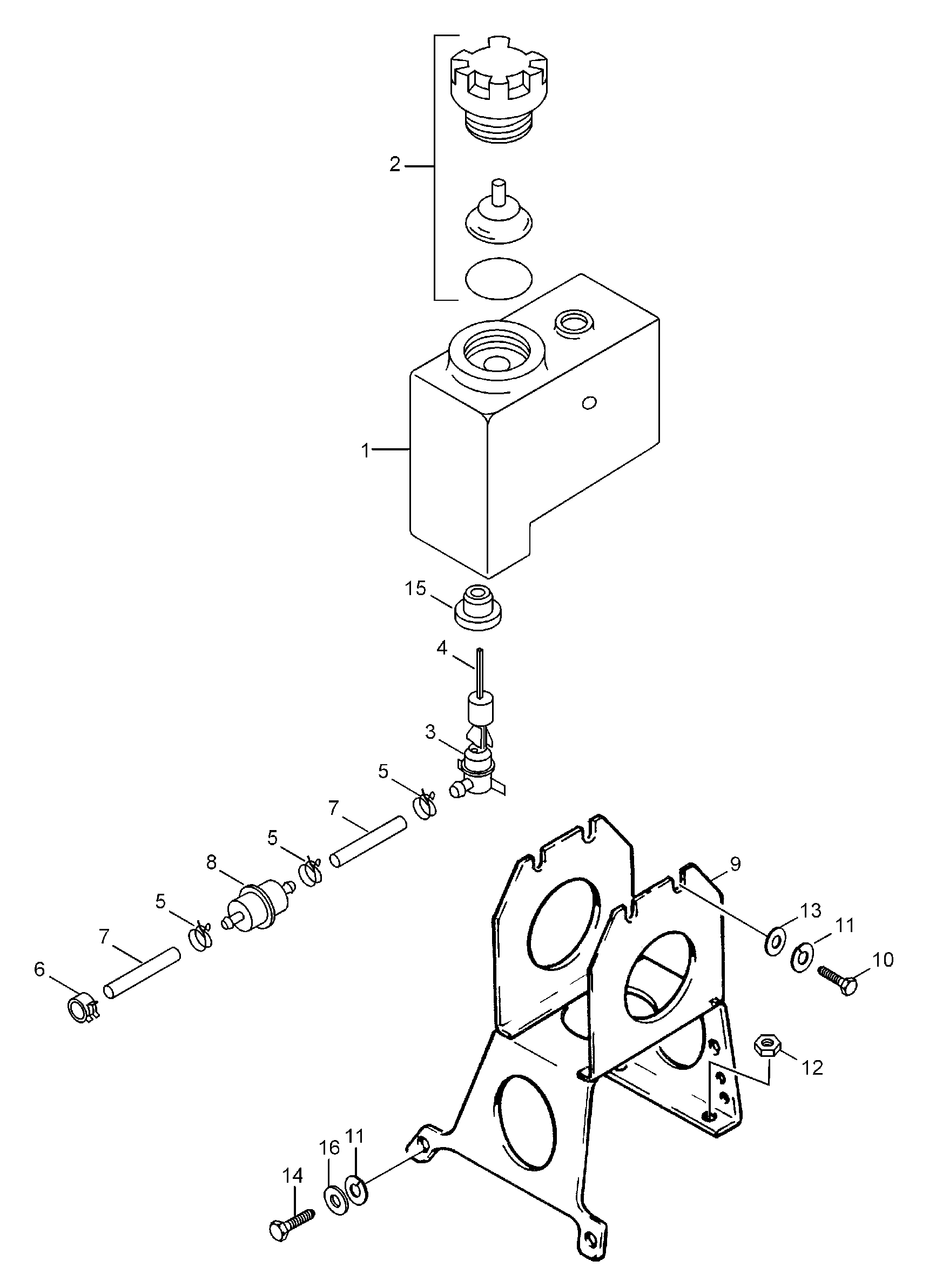

01- Oil Tank для BRP Lynx Sport XR - 1999
-
№АртикулНазвание
-
1572091600 Oil tankOil tank
-
2572071000 CapCap
-
3414681800 Oil level sensorOil level sensor
-
4414681900 Float for sensorFloat for sensor
-
527119F Spring clipSpring clip
-
6414420700 Spring clipSpring clip
-
739046 Hose 11/8Hose 11/8
-
8414536500 Oil filterOil filter
-
95344677 Oiltank supportOiltank support
-
1040114 Screw M6x10Screw M6x10
-
1120052 Lock washerLock washer
-
1233010 Nut elastic M6Nut elastic M6
-
1320009 WasherWasher
-
1440029 Screw M6x16Screw M6x16
-
15570023000 GrommetGrommet
