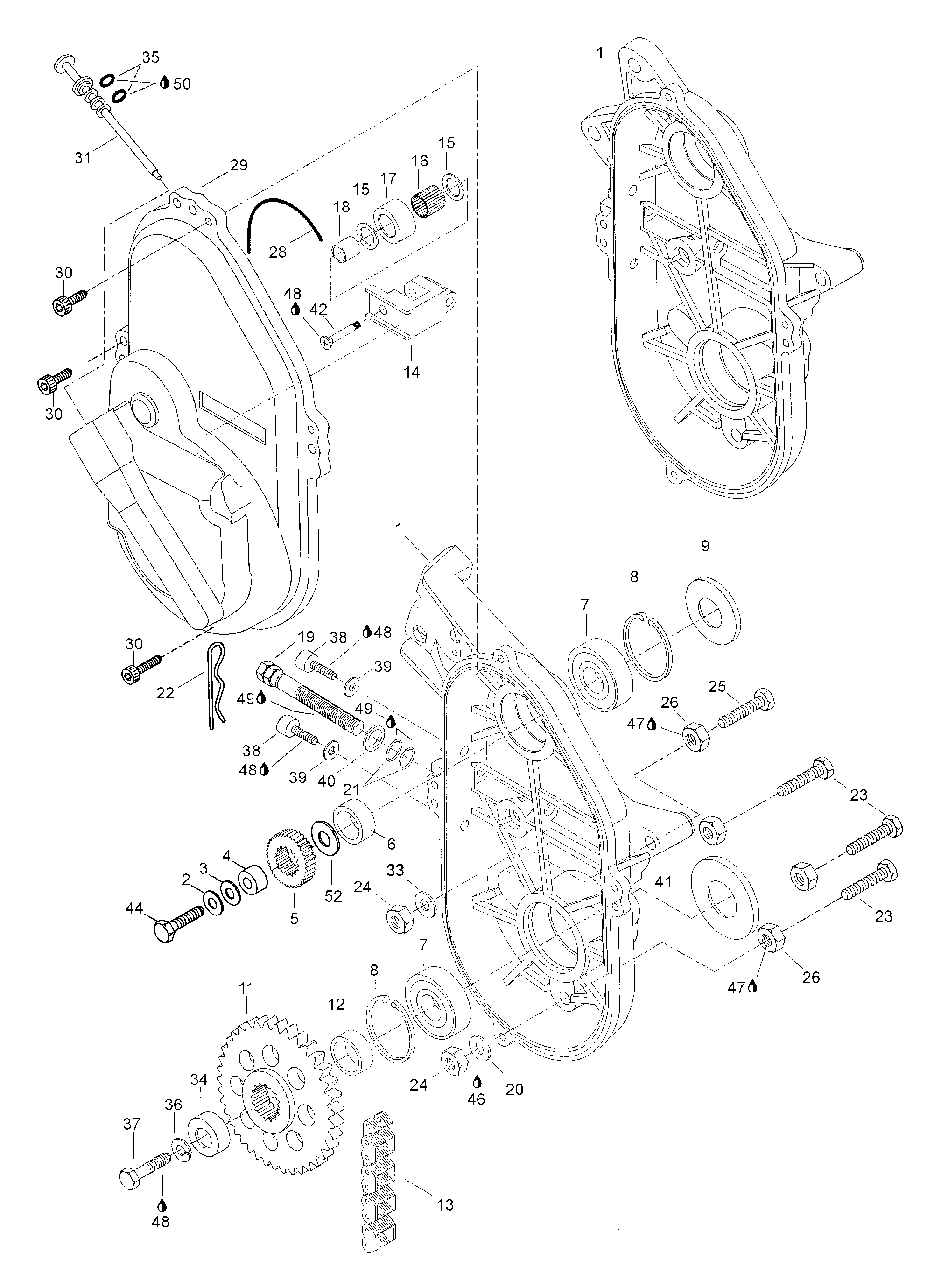

05- Chaincase для BRP Lynx Sport XR - 1999
-
№АртикулНазвание
-
1504144600 ChaincaseChaincase
-
220072 Lock washerLock washer
-
3546336 WasherWasher
-
45440583 SleeveSleeve
-
5504056000 22 tooth sprocket22 tooth sprocket
-
6504093400 ShimShim
-
7405404400 Ball bearing 6205Ball bearing 6205
-
8371901700 CirclipCirclip
-
9414531200 Oil sealOil seal
-
11504070900 Sprocket (44-tooth)Sprocket (44-tooth)
-
12504146400 BushingBushing
-
13412105500 Drive chain, 72 linksDrive chain, 72 links
-
14504081000 Chain tensionerChain tensioner
-
15504080300 WasherWasher
-
1631050 Needle bearingNeedle bearing
-
17414531300 RollerRoller
-
18504080200 BushingBushing
-
19732601311 Adjustment screwAdjustment screw
-
2020073 Gasket-ringGasket-ring
-
21414484400 O-ringO-ring
-
22414575600 Hair pinHair pin
-
2340201 Screw M10x40Screw M10x40
-
2433012 Nut elastic M10Nut elastic M10
-
2540043 Screw M10x70Screw M10x70
-
26504083800 SpacerSpacer
-
28414362300 O-ringO-ring
-
29080037100 Chaincase coverChaincase cover
-
3040340 Allen screw M6x30Allen screw M6x30
-
31572092700 Filled cap assyFilled cap assy
-
3320005 WasherWasher
-
34501023100 CapCap
-
3528402 O-ringO-ring
-
3620068 Lock washerLock washer
-
3740040 Screw M10x25Screw M10x25
-
38732601132 Allen screw M8x10Allen screw M8x10
-
3920042 Gasket ringGasket ring
-
4020005 WasherWasher
-
41581101700 Oil sealOil seal
-
42732601144 ScrewScrew
-
4440036 Screw M8x20Screw M8x20
-
46413702700 Loctite 515Loctite 515
-
47413703000 Loctite 242Loctite 242
-
48413707400 Loctite 271Loctite 271
-
49413706100 Lithium greaseLithium grease
-
50504082900 WasherWasher
