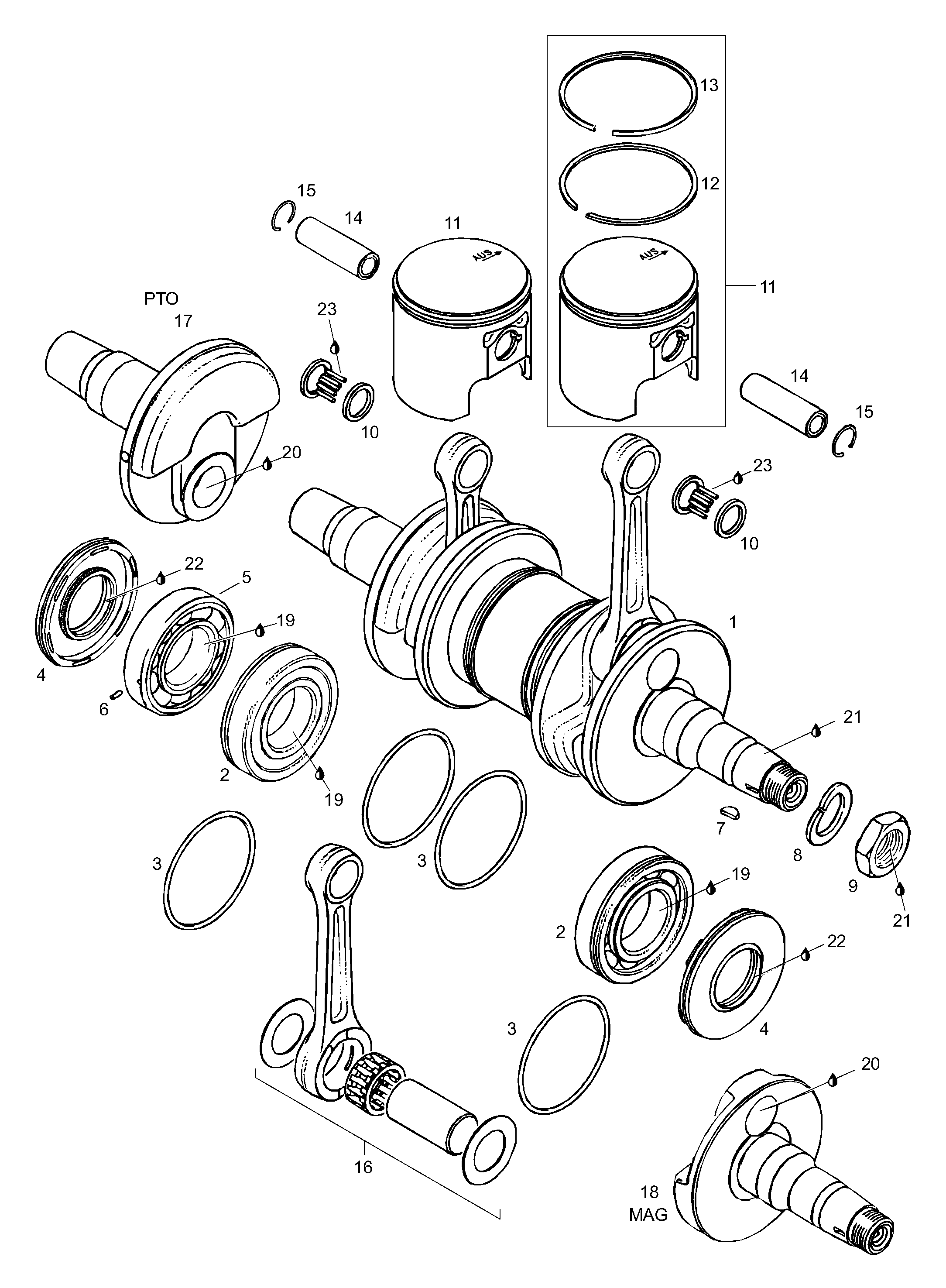

01- Crankshaft Assy для BRP Lynx XR 500 F - 2000
-
№АртикулНазвание
-
1420888390 Crankshaft assy. Includes items 1 thru 6Crankshaft assy. Includes items 1 thru 6
-
2420832570 Bearing 6207Bearing 6207
-
3420250165 O-ringO-ring
-
4420831950 Oil sealOil seal
-
5420832574 B.Bearing 6207 assy. Includes items 5 thru 6B.Bearing 6207 assy. Includes items 5 thru 6
-
6420929972 Drive PinDrive Pin
-
7420246055 Woodruff KeyWoodruff Key
-
8420945759 Lock WasherLock Washer
-
9420842230 NutNut
-
10420832320 Cagel. needle bearingCagel. needle bearing
-
11420888175 Piston assy, 71.92mmPiston assy, 71.92mm
-
11420888176 Piston assy, 72.17mmPiston assy, 72.17mm
-
11420888177 Piston assy, 72.42mmPiston assy, 72.42mm
-
12420915850 Piston ring 72 mmPiston ring 72 mm
-
12420915851 Piston ring 72.25 mmPiston ring 72.25 mm
-
12420915852 Piston ring 72.50 mmPiston ring 72.50 mm
-
13420815200 Piston ring 72.0 mmPiston ring 72.0 mm
-
13420815201 Piston ring 72.25 mmPiston ring 72.25 mm
-
13420815202 Piston ring 72.50 mmPiston ring 72.50 mm
-
14420916186 Piston pinPiston pin
-
15420945735 Lock ringLock ring
-
16420994564 Repair kitRepair kit
-
17420818242 Crankhalf P.T.O sideCrankhalf P.T.O side
-
18420818269 Crankhalf Mag. SideCrankhalf Mag. Side
-
19420297434 Loctite 76710, 50mlLoctite 76710, 50ml
-
20413711400 Loctite 642, 50mlLoctite 642, 50ml
-
21293800060 Loctite 243, 10mlLoctite 243, 10ml
-
22413707000 Molykote 111Molykote 111
-
23413802900 Injection oilInjection oil
