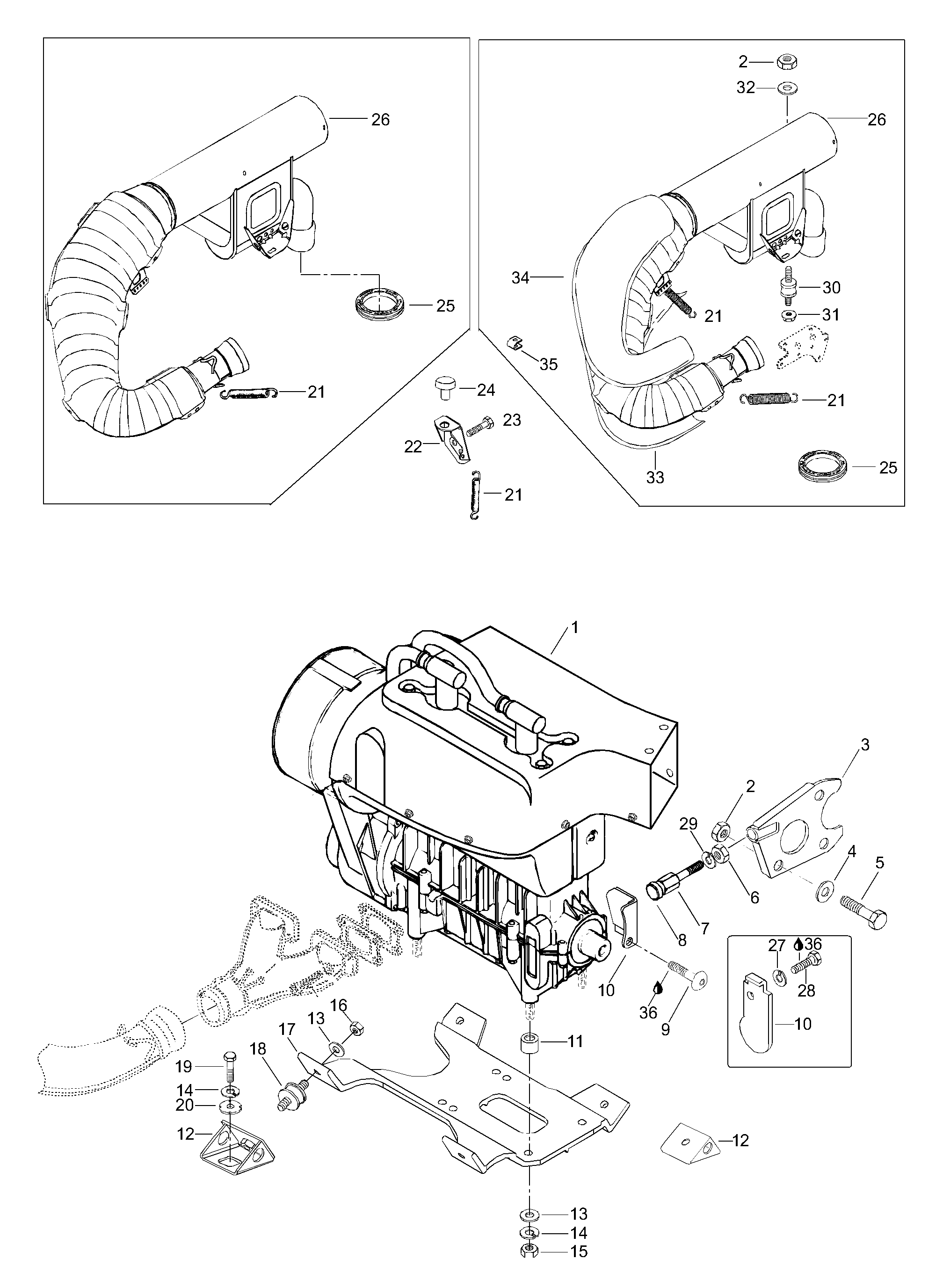

01- Engine Mount Plate/Muffler для BRP Lynx XR 500 F - 2000
-
№АртикулНазвание
-
1400509713 Engine >Engine >
-
233011 Nut elastic M8Nut elastic M8
-
3517271800 Support plateSupport plate
-
420004 WasherWasher
-
540037 Screw M8x25Screw M8x25
-
633063 Nut M12Nut M12
-
7517244200 ScrewScrew
-
8570025100 Gummi damperGummi damper
-
940882 Screw M8x20Screw M8x20
-
10512059198 Stopper plateStopper plate
-
11512051800 SpacerSpacer
-
12512050900 SupportSupport
-
1320005 WasherWasher
-
1420113 Spring washerSpring washer
-
1533004 Nut M10Nut M10
-
1633082 Nut elastic M10Nut elastic M10
-
17512059134 Engine supportEngine support
-
18570127700 Rubber mountRubber mount
-
1940040 Screw M10x25Screw M10x25
-
20512056700 Lock washerLock washer
-
21415107100 SpringSpring
-
22514044100 Muffler supportMuffler support
-
2340019 ScrewScrew
-
24570048700 Rubber bumperRubber bumper
-
25570039000 Exhaust grommetExhaust grommet
-
26514046700 MufflerMuffler
-
36293800005 Loctite 271, 10mlLoctite 271, 10ml
