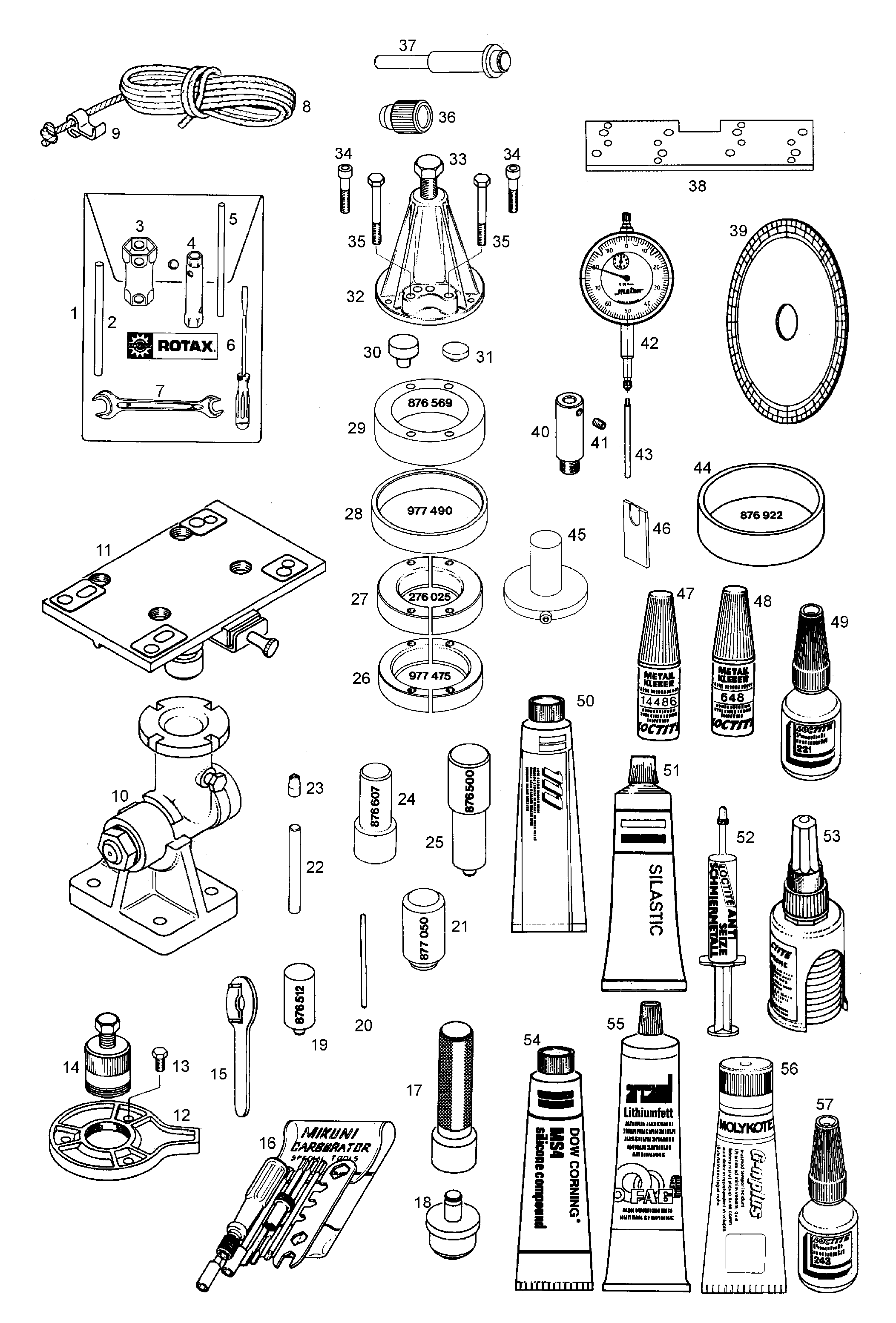

11- Tools для BRP Lynx XR 500 F - 2000
-
№АртикулНазвание
-
1420876639 Tool bag with tools a. Includes items 1 thru 9Tool bag with tools a. Includes items 1 thru 9
-
1420876197 Tool bag 230x160Tool bag 230x160
-
2420977420 Bolt 8x130-10Bolt 8x130-10
-
3420876210 Socket wrench 21/26Socket wrench 21/26
-
4420876227 Socket wrench 10/13Socket wrench 10/13
-
5420977425 Bolt 6x130Bolt 6x130
-
6420876200 Screw driverScrew driver
-
7420276065 Fork wrench 10/13 mFork wrench 10/13 m
-
8420852091 Starter rope 5,5x211Starter rope 5,5x211
-
9420852340 AttachmentAttachment
-
10420876740 Trestle assy. Includes items 10 thru 11Trestle assy. Includes items 10 thru 11
-
11420876746 Mounting plateMounting plate
-
12420876080 Puller platePuller plate
-
13420940591 Hex. screw M8x20Hex. screw M8x20
-
14420876065 Puller M42x1,5 assyPuller M42x1,5 assy
-
15420277905 WrenchWrench
-
16420876960 Special tool kitSpecial tool kit
-
17420877650 Insertion jig handleInsertion jig handle
-
18420876514 Insertion jigInsertion jig
-
19420876512 Insertion jigInsertion jig
-
20420876640 Crankshaft boltCrankshaft bolt
-
21420877050 Insertion jigInsertion jig
-
22420876612 Extrusion jigExtrusion jig
-
23420876980 Guide sleeveGuide sleeve
-
24420876607 Insertion jigInsertion jig
-
25420876500 Insertion jigInsertion jig
-
26420977475 Ring half 6207Ring half 6207
-
27420276025 Ring half 6202Ring half 6202
-
28420977490 RingRing
-
29420876569 ShimShim
-
30420876552 Protection mushrooProtection mushroo
-
31420876557 Protection mushrooProtection mushroo
-
32420876298 Puller assy. Includes items 32 thru 33Puller assy. Includes items 32 thru 33
-
33420940755 Screw M16x1,5x150Screw M16x1,5x150
-
34420840681 Allen screw M8x40Allen screw M8x40
-
35420841201 Hex. screw M8x70Hex. screw M8x70
-
36420877015 Circlip installation. Includes items 36 thru 37Circlip installation. Includes items 36 thru 37
-
36420877020 Circlip installationCirclip installation
-
37420877010 Circlip installationCirclip installation
-
38420876904 Aligning toolAligning tool
-
39420277150 Degree diskDegree disk
-
40420876940 Gauge adapterGauge adapter
-
41420841771 Set screw M6x8Set screw M6x8
-
42420876950 Precision dial gaugePrecision dial gauge
-
43420876945 Gauge pinGauge pin
-
44420876922 Centering ringCentering ring
-
45420877555 Insertion-jig assyInsertion-jig assy
-
46420877530 Pickup adjusting d.Pickup adjusting d.
-
47420897341 Loctite 14486Loctite 14486
-
48420899788 Loctite 648 greenLoctite 648 green
-
49420899785 Loctite 221 violetLoctite 221 violet
-
50420897161 Molykote 111Molykote 111
-
51420297386 Silastic 732 RTVSilastic 732 RTV
-
52420297431 Loctite anti-seizeLoctite anti-seize
-
53420899784 Loctite 574 orangeLoctite 574 orange
-
54420897061 Silicon compoundSilicon compound
-
55420897330 Lithium-greaseLithium-grease
-
56420297433 Molykote G-NMolykote G-N
-
57420897651 Loctite blueLoctite blue
