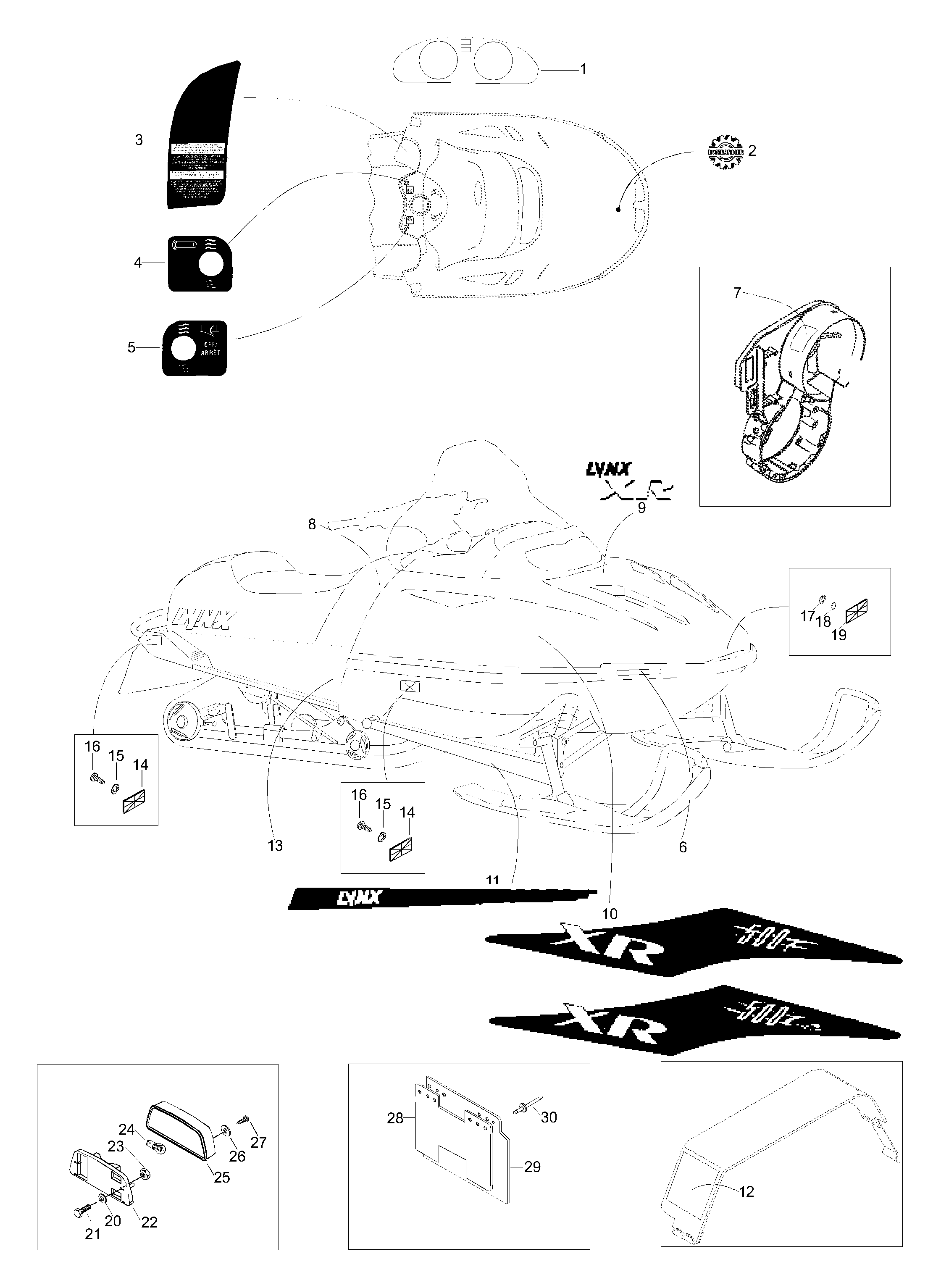

09- Equipment для BRP Lynx XR 500 F - 2000
-
№АртикулНазвание
-
5145213 Hood decal kit (incl. decals 9 and 10)Hood decal kit (incl. decals 9 and 10)
-
5143327 Instruction decals (incl. decals 7, 8 and 12)Instruction decals (incl. decals 7, 8 and 12)
-
15245853 Dash dekalDash dekal
-
2516000282 Logo BombardierLogo Bombardier
-
3414969800 Warning decalWarning decal
-
4414898500 Dash decalDash decal
-
5414898400 Heat thumb decalHeat thumb decal
-
6418001009 Reflector decalReflector decal
-
7544073 Fan Belt DecalFan Belt Decal
-
8544068 Oil check decalOil check decal
-
95345861 Front hood decalFront hood decal
-
105345862 R.H. hood decalR.H. hood decal
-
105345863 L.H. hood decalL.H. hood decal
-
115345859 Swing Arm Decal R.H.Swing Arm Decal R.H.
-
115345860 Swing Arm Decal L.H.Swing Arm Decal L.H.
-
12546820 Instruction labelInstruction label
-
135445636 CE-decalCE-decal
-
14414510200 Reflector, yellowReflector, yellow
-
1520018 WasherWasher
-
1640070 ScrewScrew
-
1741034 Locking ringLocking ring
-
1848227 O-ringO-ring
-
1921148 Reflector, WhiteReflector, White
-
21207053044 ScrewScrew
-
22414513600 Tail lamp housingTail lamp housing
-
2333062 Nut elastic M5Nut elastic M5
-
24410504000 BulpBulp
-
25414513700 LensLens
-
26414516400 WasherWasher
-
27209632540 ScrewScrew
-
285345954 Support, snow guardSupport, snow guard
-
29534727 Snow guardSnow guard
-
3036072 RivetRivet
