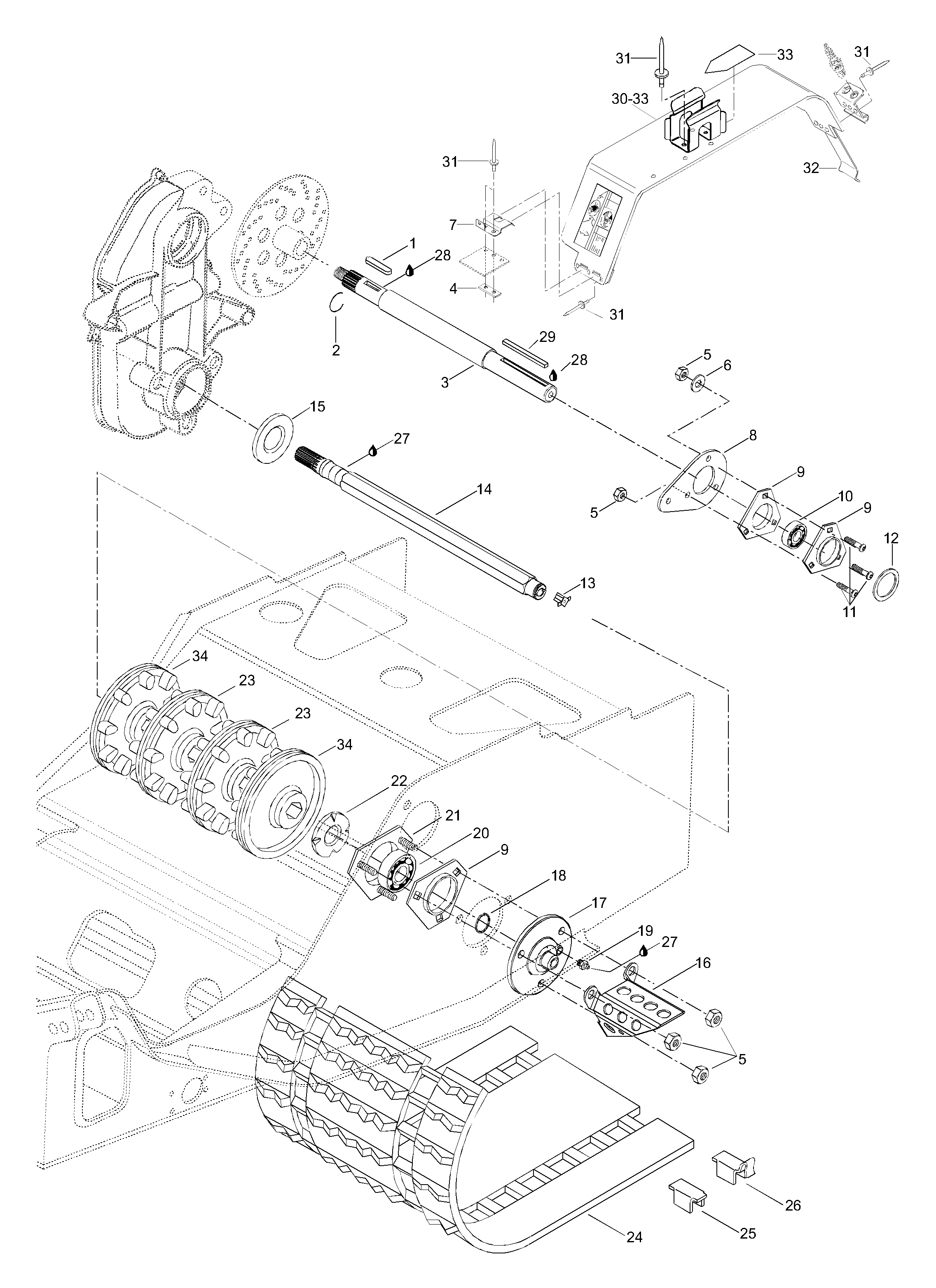

05- Drive Axle для BRP Lynx XR 500 F - 2000
-
№АртикулНазвание
-
1507021300 KeyKey
-
2371910000 CirclipCirclip
-
3504149300 Counter shaftCounter shaft
-
4518207500 SupportSupport
-
533011 Nut elastic M8Nut elastic M8
-
620004 WasherWasher
-
7518314200 BracketBracket
-
8501022300 SpacerSpacer
-
9501025000 FlangeFlange
-
10405408300 BearingBearing
-
1140344 Screw M8x25Screw M8x25
-
12504094000 ShimShim
-
13572010100 Insert-speedoInsert-speedo
-
14504151714 Drive axleDrive axle
-
15581101700 Oil sealOil seal
-
16517290100 Cable protectorCable protector
-
17504151836 FlangeFlange
-
18371910200 CirclipCirclip
-
1934011 Grease fittingGrease fitting
-
20405408600 BearingBearing
-
21504151860 Ball bearing housingBall bearing housing
-
22501017400 Ball bearing protectorBall bearing protector
-
23414882600 Sprocket, 9-teethSprocket, 9-teeth
-
24504151802 Track. Includes items 24 thru 26Track. Includes items 24 thru 26
-
25504151828 Flat cleatFlat cleat
-
26500003400 Guide cleatGuide cleat
-
27413711500 Synthetic greaseSynthetic grease
-
28293800023 Loctite 767Loctite 767
-
29414581300 KeyKey
-
30417300012 belt guard. Includes items 30 thru 33belt guard. Includes items 30 thru 33
-
31390402200 RivetRivet
-
32414941800 Tool box springTool box spring
-
33516000132 Warning labelWarning label
