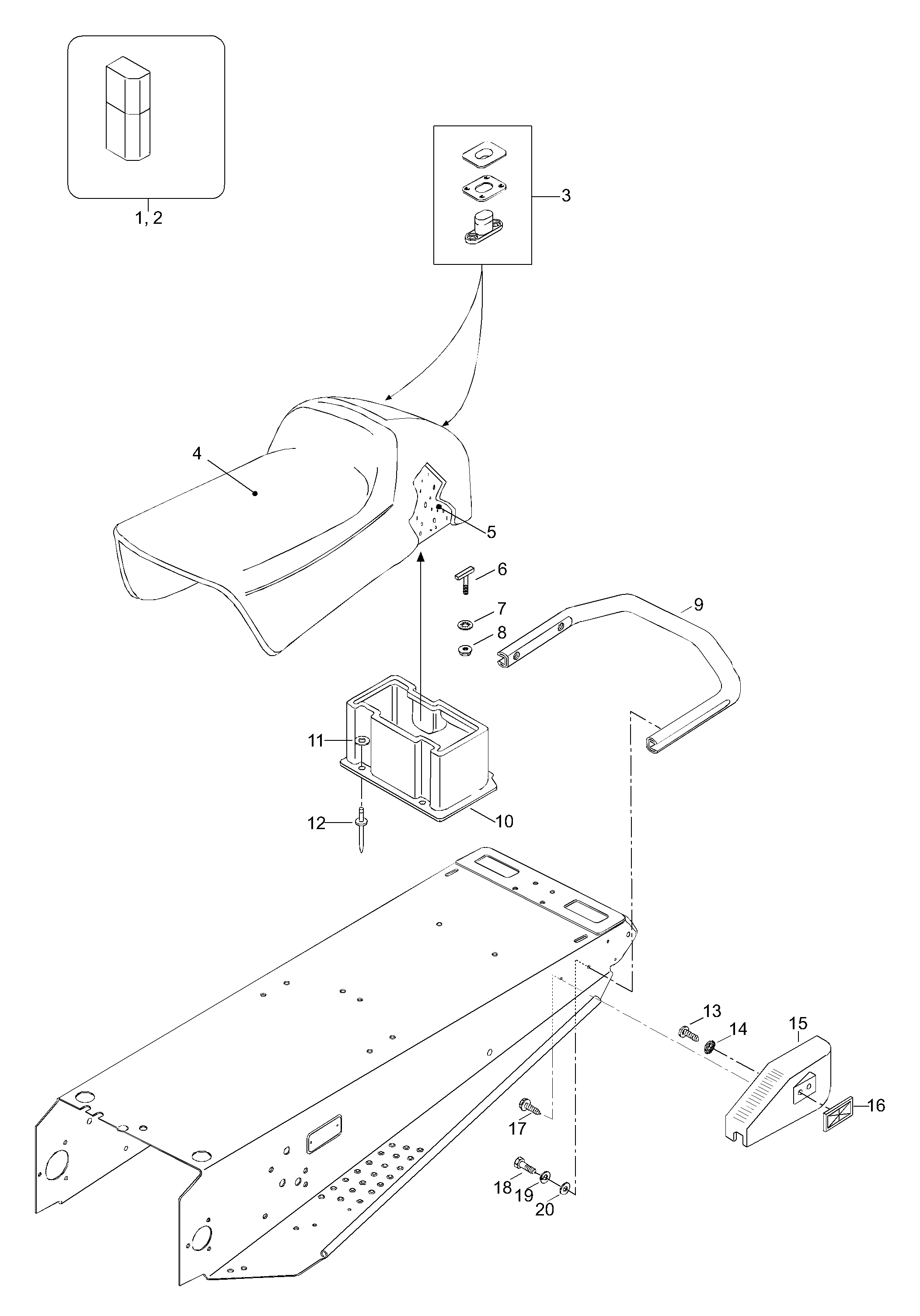

09- Body для BRP Lynx XR 500 F - 2000
-
№АртикулНазвание
-
15445403 Tool box (with tools)Tool box (with tools)
-
2572036310 Tool boxTool box
-
328354 Seat BuckleSeat Buckle
-
45245233 Seat coverSeat cover
-
55145790 Seat foamSeat foam
-
6732601221 T-screwT-screw
-
7732610072 Nut pushNut push
-
833200 Nut elastic M8Nut elastic M8
-
9518314000 Rear bumperRear bumper
-
10572106300 Rear trunkRear trunk
-
11517297900 WasherWasher
-
12390409600 RivetRivet
-
13580642200 R.H. molding assy. Includes items 13 thru 16R.H. molding assy. Includes items 13 thru 16
-
13580642300 L.H. molding assy. Includes items 13 thru 16L.H. molding assy. Includes items 13 thru 16
-
1340070 Screw M5x10Screw M5x10
-
1420018 WasherWasher
-
15572049300 R.H. moldingR.H. molding
-
15572049200 L.H. moldingL.H. molding
-
16414510200 Reflector, yellowReflector, yellow
-
1740870 ScrewScrew
-
1840036 Screw M8x20Screw M8x20
-
1920014 Spring washerSpring washer
-
2020004 WasherWasher
