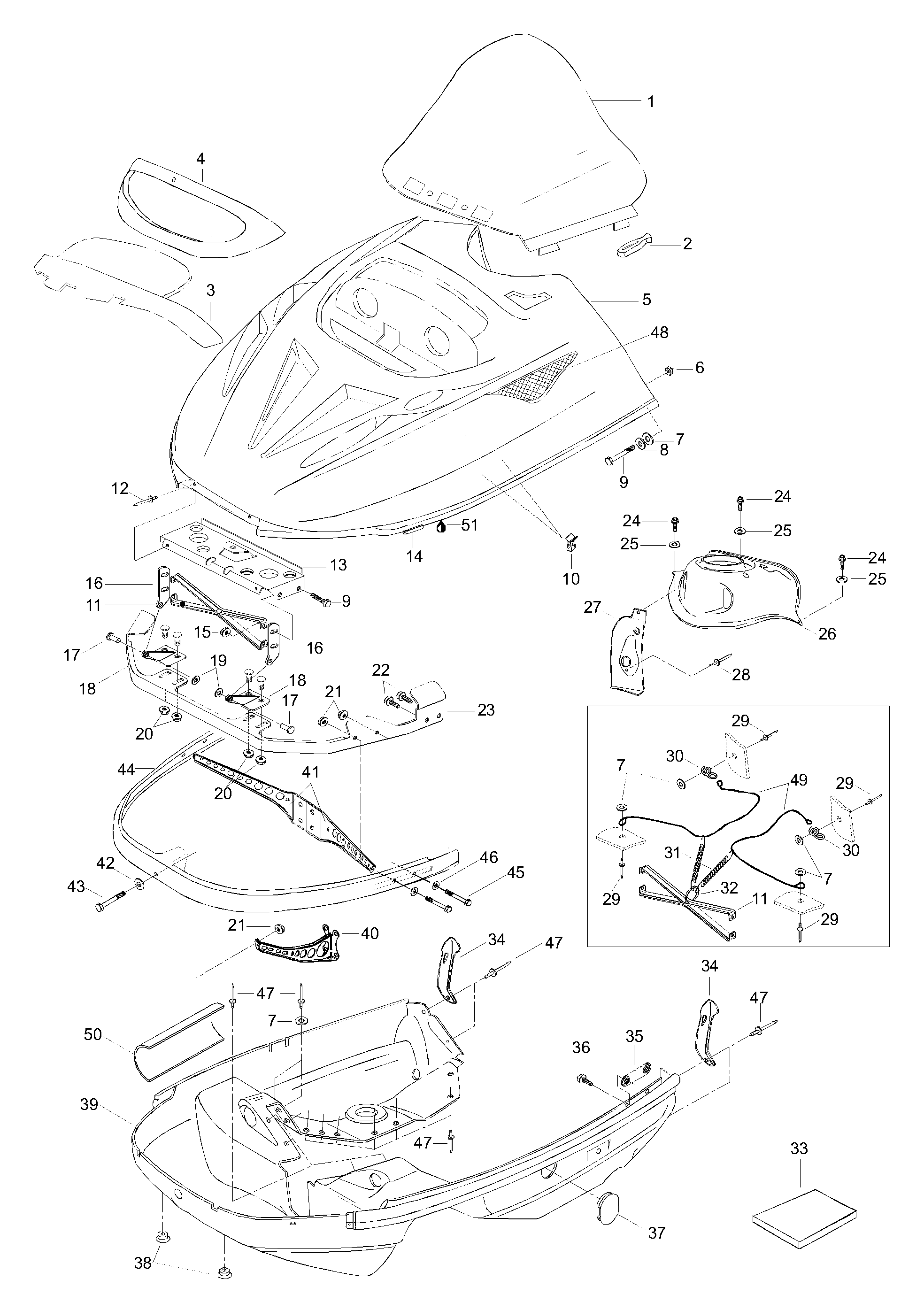

09- Hood для BRP Lynx XR 500 F - 2000
-
№АртикулНазвание
-
15145273 WindscreenWindscreen
-
2570023800 Windshield latchWindshield latch
-
3517302003 Support-windshieldSupport-windshield
-
4517302158 Lamp moldingLamp molding
-
55145201 HoodHood
-
6517245800 Locking pieceLocking piece
-
720008 WasherWasher
-
820013 Spring washerSpring washer
-
940366 Screw M5x16Screw M5x16
-
10517302183 ClipClip
-
11517278100 Hood reinforcerHood reinforcer
-
1236009 RivetRivet
-
135245433 Support plateSupport plate
-
145442148 Rubber ribbon of wind.Rubber ribbon of wind.
-
1533062 Nut elastic M5Nut elastic M5
-
16517261100 Upper hingeUpper hinge
-
17390906200 PinPin
-
18517289900 Hinge, lowerHinge, lower
-
19389804300 Nut pushNut push
-
2033086 Nut elastic M6Nut elastic M6
-
2133200 Nut elastic M6Nut elastic M6
-
2240870 Self tapping screwSelf tapping screw
-
23517296600 Hinge bracketHinge bracket
-
24732600030 ScrewScrew
-
25391301600 WasherWasher
-
26517302160 Switch dashSwitch dash
-
27572052101 Dash-handleDash-handle
-
2836036 RivetRivet
-
2936037 RivetRivet
-
305442870 Retainer Cable ClipRetainer Cable Clip
-
31414763300 SpringSpring
-
32415058300 RingRing
-
33414632400 Foam (74'’x34'’x1/2'’)Foam (74'’x34'’x1/2'’)
-
34570027100 Hood latchHood latch
-
35517267100 Side bracketSide bracket
-
3640322 Screw M6x16Screw M6x16
-
37570053702 Cap-pan bottomCap-pan bottom
-
38572072100 GrommetGrommet
-
39502006572 Bottom panBottom pan
-
40517294500 Front supportFront support
-
41517295100 Support R.H.Support R.H.
-
41517295000 Support L.H.Support L.H.
-
42224061201 WasherWasher
-
4340002 Screw M6x40Screw M6x40
-
44517265400 BumperBumper
-
4540083 Screw M6x30Screw M6x30
-
46224061121 WasherWasher
-
47390907700 RivetRivet
-
485345683 Upper grill, R.H.Upper grill, R.H.
-
485345684 Upper grill, L.H.Upper grill, L.H.
-
49415093900 Cab retainer cableCab retainer cable
