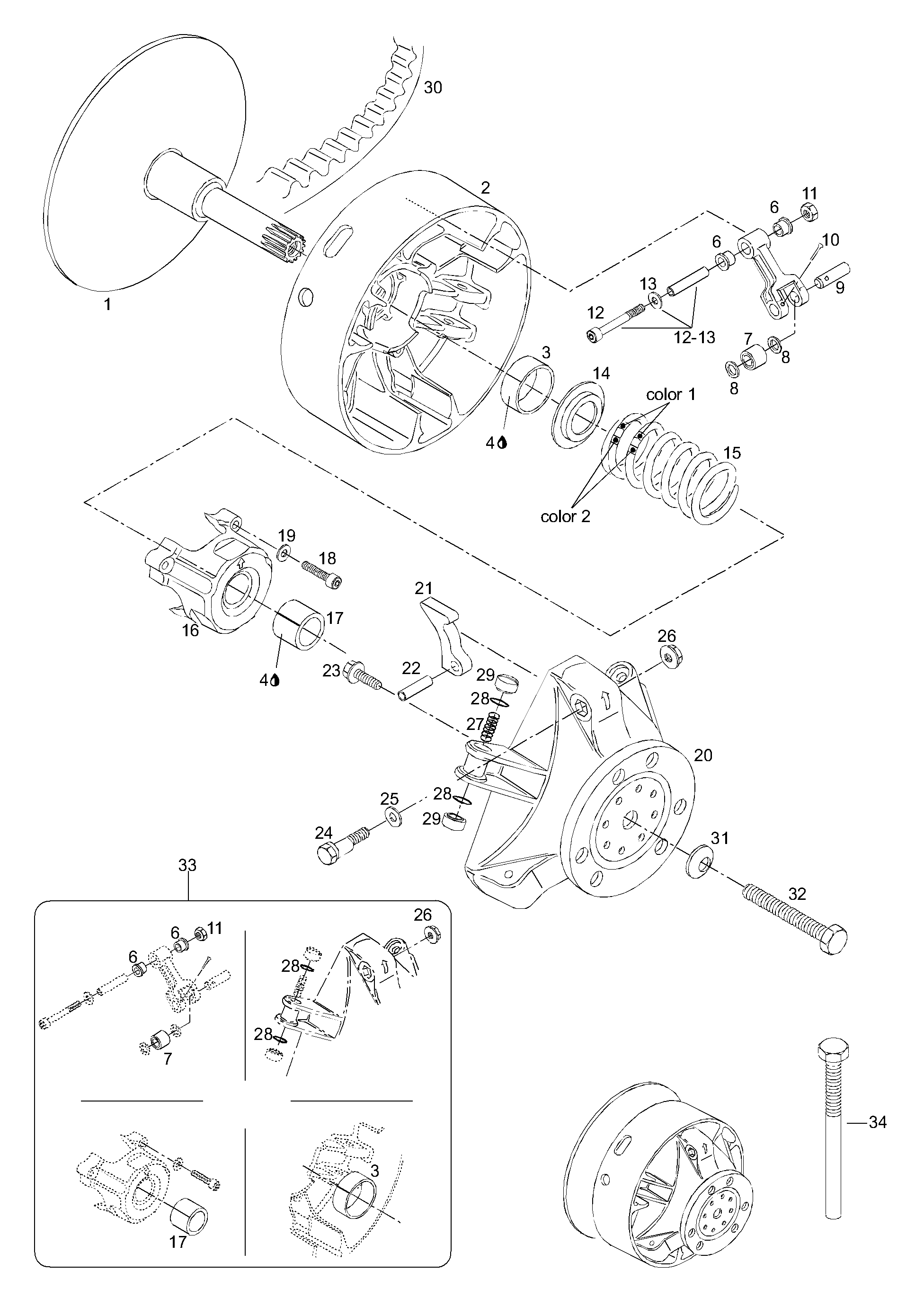

05- Clutch для BRP Lynx XR 500 F - 2000
-
№АртикулНазвание
-
1417222071 Inner half assyInner half assy
-
2417222049 Outer half assy. Includes items 2 thru 3Outer half assy. Includes items 2 thru 3
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609, 10ccLoctite 609, 10cc
-
5417003801 Lever assy. Includes items 5 thru 6Lever assy. Includes items 5 thru 6
-
6417004305 Flange bushingFlange bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417004309 PinPin
-
10732958001 Cotter pinCotter pin
-
1133010 Nut elastic M6Nut elastic M6
-
12417004800 Fitting screw assy. Includes items 12 thru 13Fitting screw assy. Includes items 12 thru 13
-
12222965065 Allen screw M6x50Allen screw M6x50
-
13224061151 Flat washer 6mmFlat washer 6mm
-
14417222044 Spring seatSpring seat
-
15414993000 Spring Yellow/redSpring Yellow/red
-
16417222157 Spring cover assy. Includes items 16 thru 17Spring cover assy. Includes items 16 thru 17
-
17417004501 Spring cover bushingSpring cover bushing
-
18205064086 Allen screw M6x40Allen screw M6x40
-
19420245370 Friction washerFriction washer
-
20417222081 Gouvernor cup assyGouvernor cup assy
-
21417005291X Ramp 291XRamp 291X
-
22732804009 Dowl tube M8x24Dowl tube M8x24
-
23210361890 Screw M6x18Screw M6x18
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-RingO-Ring
-
29417005800 Shoe sliderShoe slider
-
30415060600 Drive beltDrive belt
-
3120090 Conical spring wash.Conical spring wash.
-
32417113800 ScrewScrew
-
33417006100 Clutch repair kitClutch repair kit
-
34529007900 Puller inner halfPuller inner half
