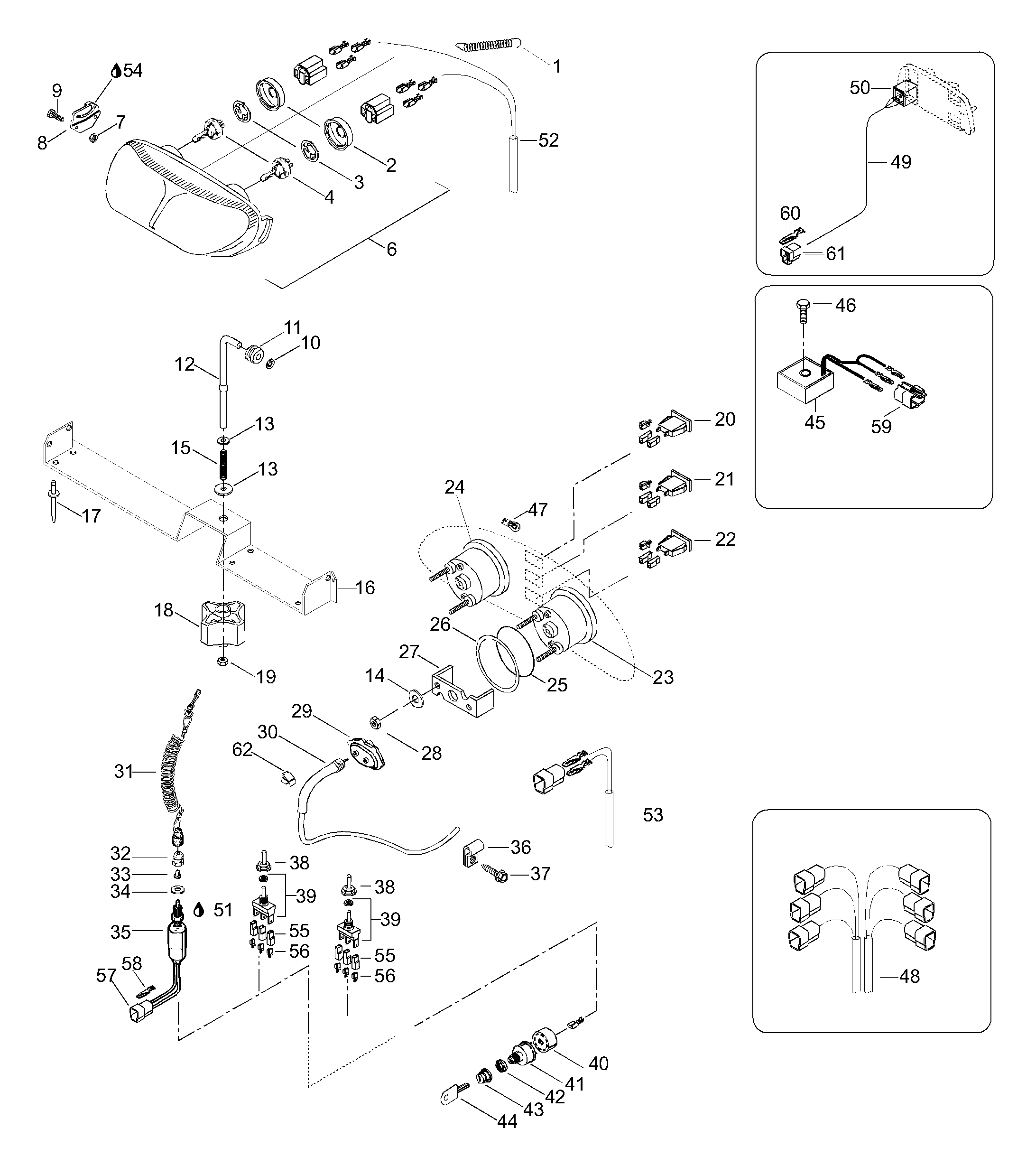

10- Electric для BRP Lynx XR 500 F - 2000
-
№АртикулНазвание
-
15445737 SpringSpring
-
2410607100 CoverCover
-
3410608300 Bulp halderBulp halder
-
442263 BulpBulp
-
6515175158 Headlamp assyHeadlamp assy
-
733009 Nut elastic M5Nut elastic M5
-
8517289300 L.H. supportL.H. support
-
8517289400 R.H. supportR.H. support
-
940366 Screw M5x16Screw M5x16
-
10732610072 Nut pushNut push
-
11415100800 GrommetGrommet
-
125445735 Grip of Head LightGrip of Head Light
-
1320009 WasherWasher
-
1420002 WasherWasher
-
1525042 SpringSpring
-
165345290 Head Lamp HolderHead Lamp Holder
-
1736037 RivetRivet
-
18572100800 HandleHandle
-
1933010 Nut elastic M6Nut elastic M6
-
20410109600 Pilot lamp, bluePilot lamp, blue
-
21410109500 Pilot lamp, redPilot lamp, red
-
23515175335 SpeedometerSpeedometer
-
24515175340 TachometerTachometer
-
25414807100 O-ringO-ring
-
26517258500 WasherWasher
-
27414806500 Housing supportHousing support
-
2833009 Nut elastic M5Nut elastic M5
-
29515175400 Drive AngleDrive Angle
-
30414761400 Speedometer cableSpeedometer cable
-
31515151500 Switch cap assySwitch cap assy
-
32515145900 Switch nutSwitch nut
-
33570150900 Plunger capPlunger cap
-
35515175368 Brake switchBrake switch
-
36414176000 ClipClip
-
3740870 ScrewScrew
-
38515175281 Switch coverSwitch cover
-
39410107300 SwitchSwitch
-
40572150700 Ignition switch blockIgnition switch block
-
4142019 Ignition switchIgnition switch
-
42410112100 Face nutFace nut
-
43570013700 Switch bootSwitch boot
-
44414991700 KeyKey
-
45515163800 Voltage regulatorVoltage regulator
-
4640868 ScrewScrew
-
47410504200 BulpBulp
-
50515175250 Connector housingConnector housing
-
51293550004 Dielectric greaseDielectric grease
-
525345566 Harness, headlampHarness, headlamp
-
535440398 HarnessHarness
-
54413707500 Grease Tube LMZ, 400gGrease Tube LMZ, 400g
-
55409010400 Connector housingConnector housing
-
56409010100 Male TerminalMale Terminal
-
57409204600 Connector housingConnector housing
-
58409210000 Male TerminalMale Terminal
-
59409209300 Connector housingConnector housing
-
60409206100 Male TerminalMale Terminal
-
61409204200 Connector housingConnector housing
-
62414227300 ClipClip
