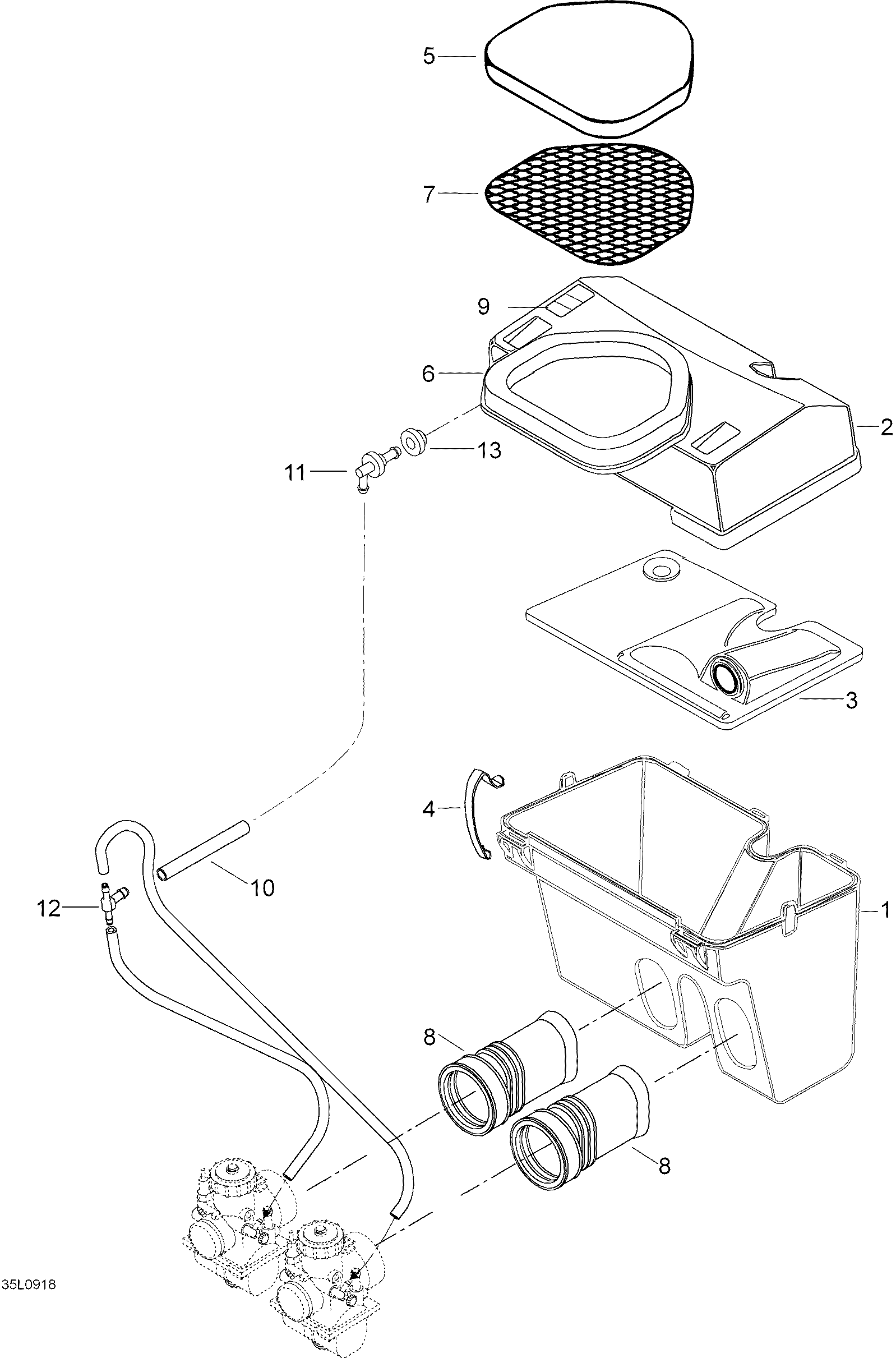

02- Air Silencer для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
15142751 Bottom of airboxBottom of airbox
-
2605255779 Intake coverIntake cover
-
35344795 Tube plateTube plate
-
45442836 Spring lockSpring lock
-
55342958 Air filterAir filter
-
65342959 Sealing foamSealing foam
-
75342960 Intake grillIntake grill
-
85142626 Air intake adaptorAir intake adaptor
-
9605628003 ClampClamp
-
1039038 Fuel lineFuel line
-
11414580600 Connector maleConnector male
-
12572045500 T-FittingT-Fitting
-
13513032908 GrommetGrommet
