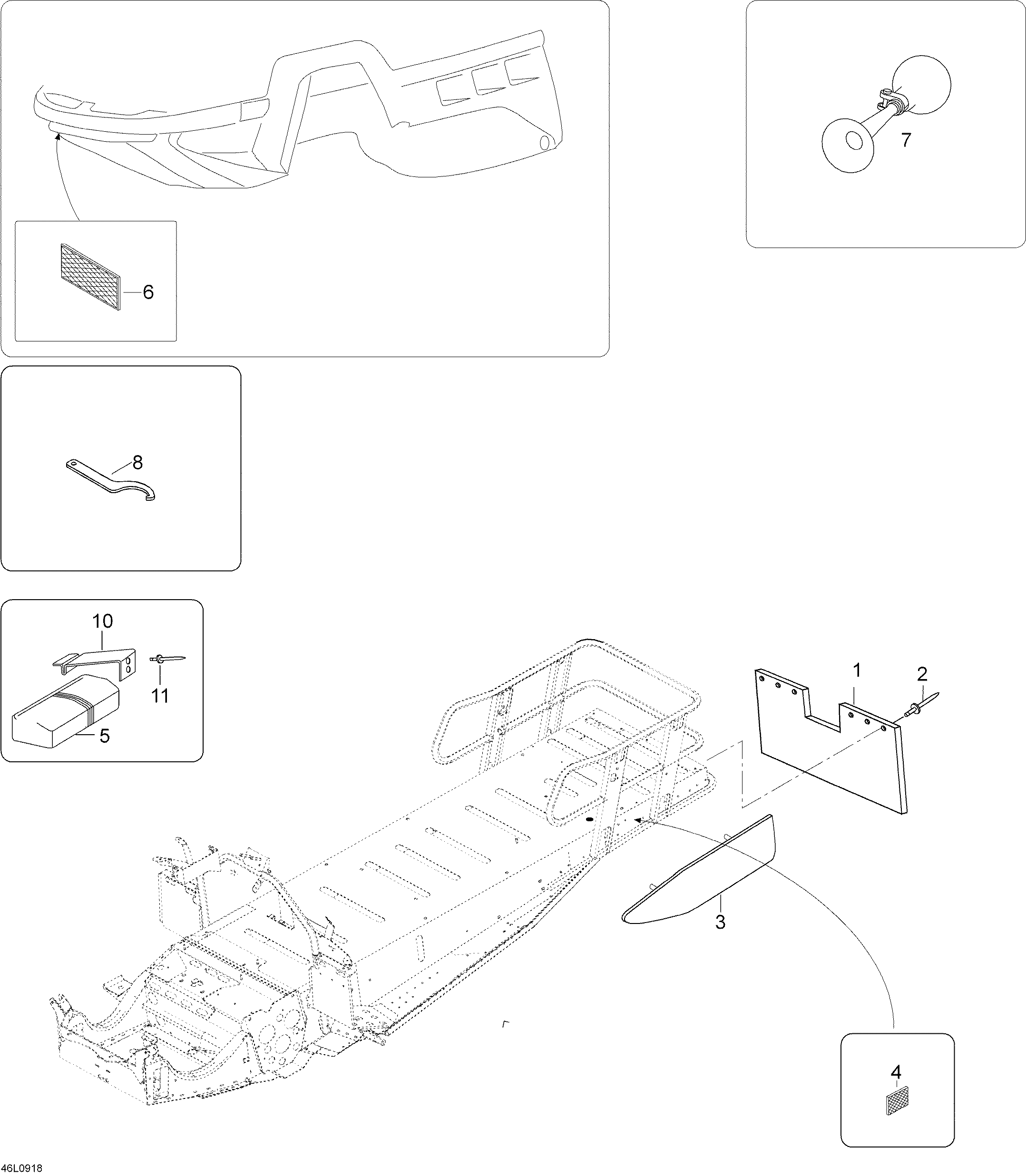

09- Utilities для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
1535437 Snow guardSnow guard
-
236036 RivetRivet
-
3605354746 Side snow quard L.HSide snow quard L.H
-
3605354747 Side snow quard R.HSide snow quard R.H
-
421121 Reflector (Yellow)Reflector (Yellow)
-
5605350525 Tool ass'yTool ass'y
-
621118 Reflector (White)Reflector (White)
-
7549011291 HornHorn
-
8529035582 Wrench adjusterWrench adjuster
