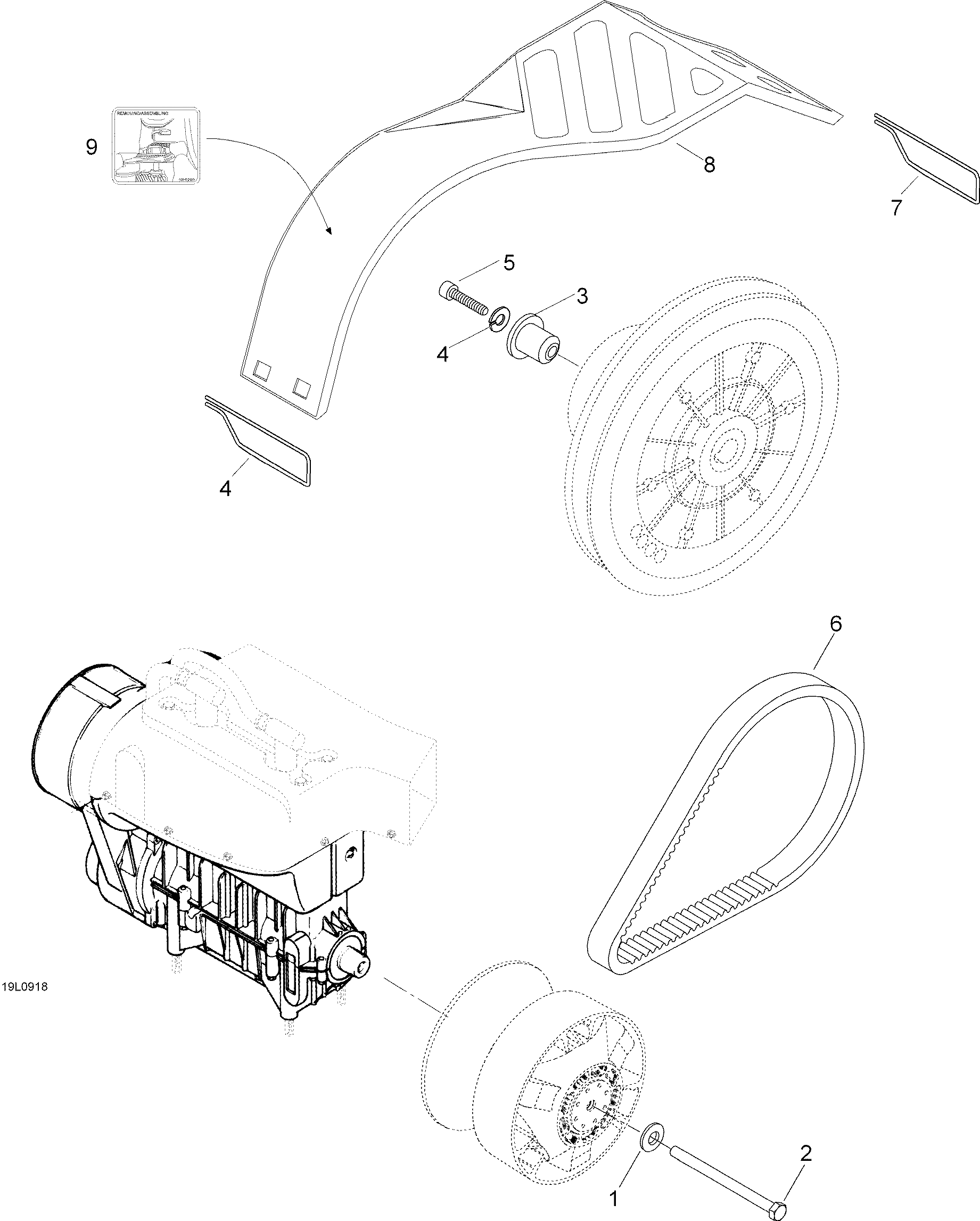

05- Pulley System для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
120090 Lock washerLock washer
-
2417113800 ScrewScrew
-
35443201 Shaft extensionShaft extension
-
420014 Lock washer A8Lock washer A8
-
540286 Socket head screw M8 x 45Socket head screw M8 x 45
-
6605348425 Drive beltDrive belt
-
75442726 PinPin
-
8605149860 Belt guardBelt guard
-
9605452660 Instruction labelInstruction label
