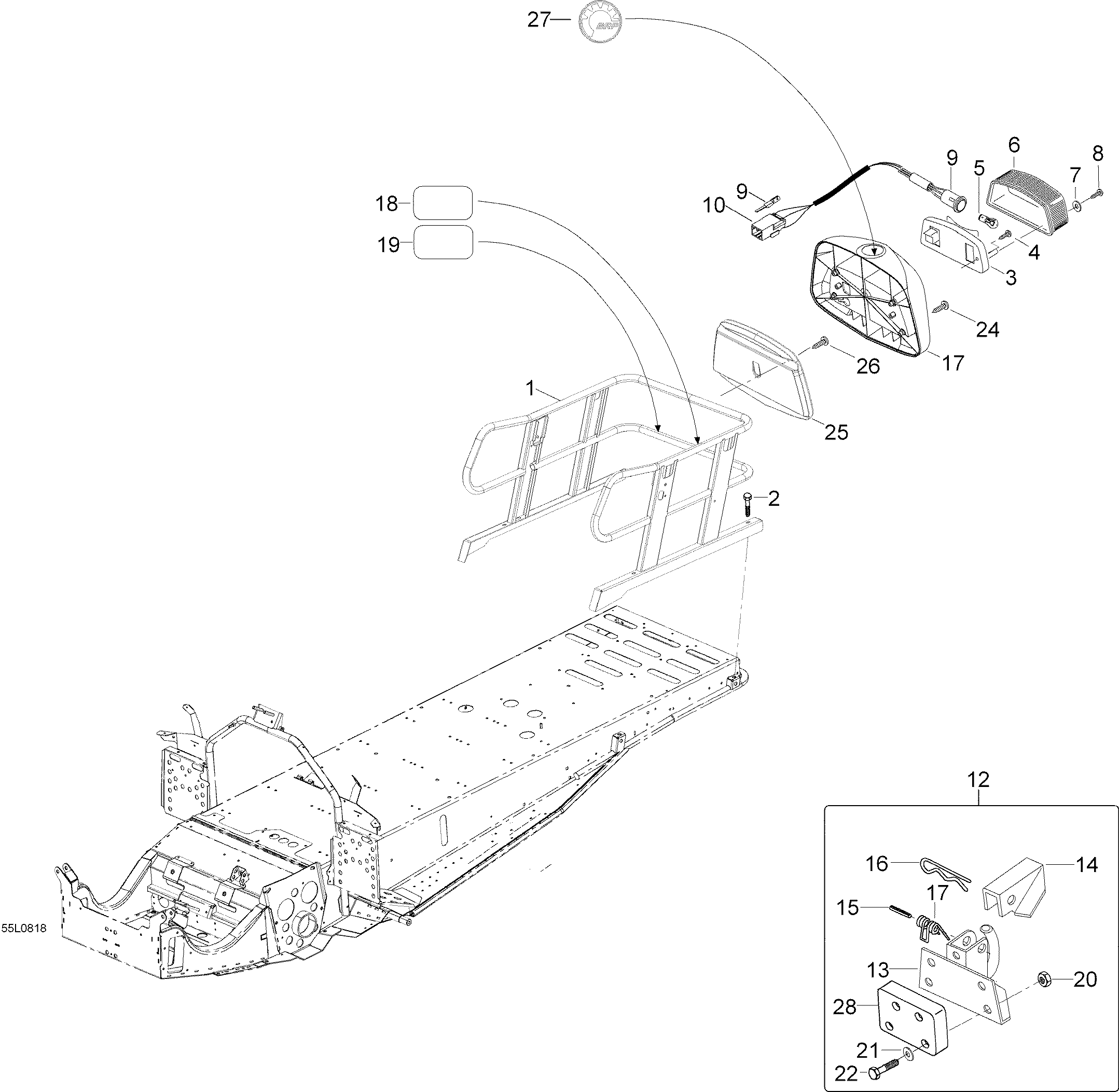

09- Luggage Rack для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
1605156016 RackRack
-
240316 Screw M 8x20Screw M 8x20
-
3515175397 Tail lamp baseTail lamp base
-
440207 Screw 4.8 x 45Screw 4.8 x 45
-
5520000758 BulpBulp
-
6414513700 LensLens
-
7414516400 WasherWasher
-
8209632540 ScrewScrew
-
9515175852 Wire ass'yWire ass'y
-
1042269 Connector housingConnector housing
-
11605642628 Female connectorFemale connector
-
125344156 Hitch ass'y. Includes 32 to 37Hitch ass'y. Includes 32 to 37
-
145440767 LockLock
-
1541012 PinPin
-
1641029 Hair pinHair pin
-
17545693 SpringSpring
-
18605448799 Warning labelWarning label
-
195447929 Instruction labelInstruction label
-
2033011 Elastic stop nut M8Elastic stop nut M8
-
2120004 Washer A8,4Washer A8,4
-
2240009 Hex. screw M8 x 50Hex. screw M8 x 50
-
23605251392 Tail light coverTail light cover
-
2440206 Screw 4,8 x 25Screw 4,8 x 25
-
25605251963 BaseBase
-
2640322 Self-Tapping screw M6 x 16Self-Tapping screw M6 x 16
-
27219902468 BRP-LogoBRP-Logo
-
28605351510 Extension plateExtension plate
