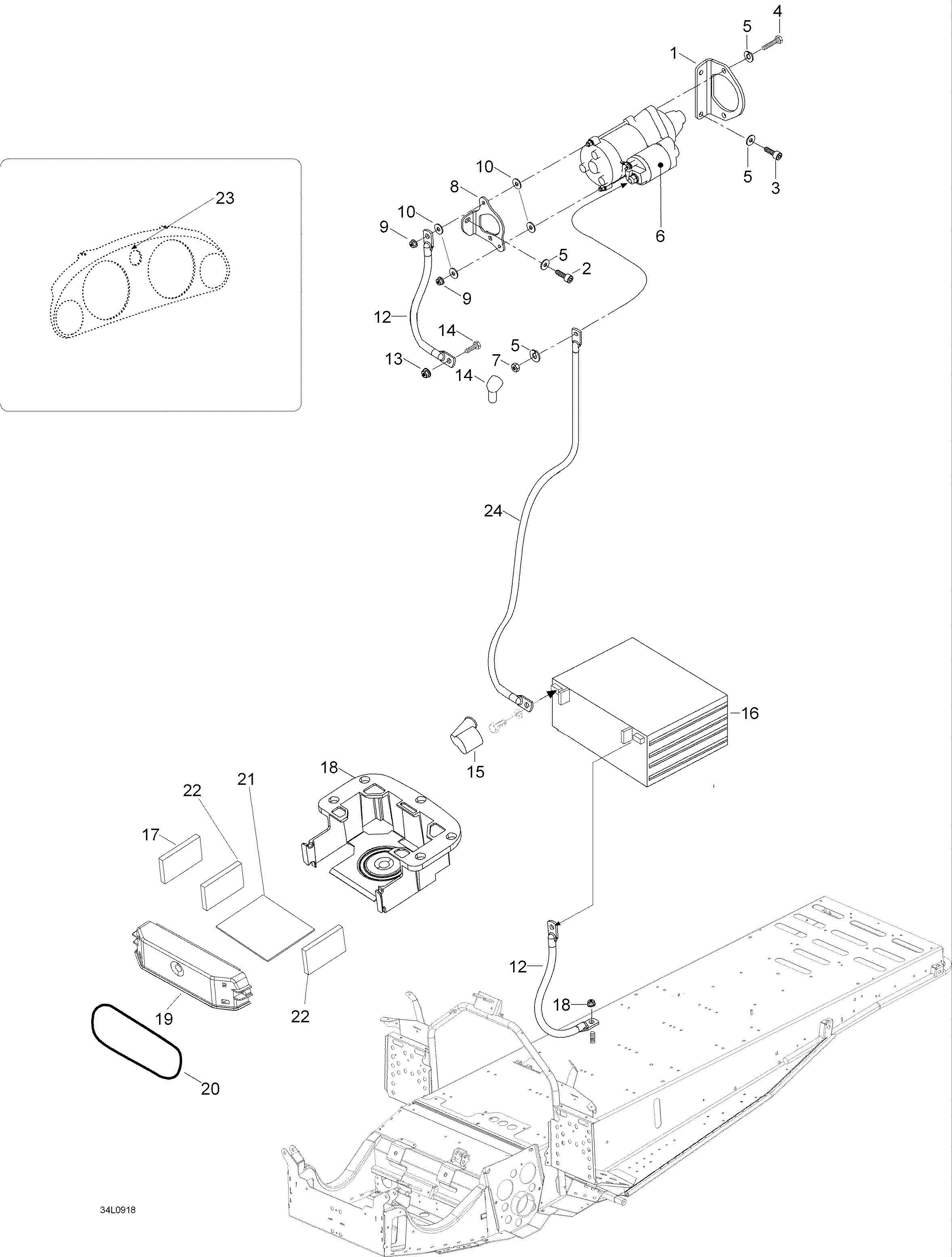

08- Electric Starter для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
1420951415 Starter bracket (PTO)Starter bracket (PTO)
-
240066 Socket head screw M8 x 16Socket head screw M8 x 16
-
340305 Socket head screw M8 x 20Socket head screw M8 x 20
-
440036 Hex. screw M8 x 20Hex. screw M8 x 20
-
520014 Lock washerLock washer
-
6410212400 Electric starter ass'yElectric starter ass'y
-
733003 Nut M8Nut M8
-
8420951426 Starter bracket (MAG)Starter bracket (MAG)
-
933009 Elastic stop nut M5Elastic stop nut M5
-
1020008 WasherWasher
-
1133010 Elastic stop nut M6Elastic stop nut M6
-
12515175483 Ground wireGround wire
-
1333200 Elastic flanged nut M6Elastic flanged nut M6
-
1440327 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
15570151000 Protector capProtector cap
-
16410301203 Battery. Includes 18 to 19Battery. Includes 18 to 19
-
17605355636 AdapterAdapter
-
18605255588 Base, batteryBase, battery
-
19605255586 CoverCover
-
20605676001 O-ringO-ring
-
21605355846 FoamFoam
-
22605355847 Cellular plasticCellular plastic
-
23605456007 Instruction decalInstruction decal
