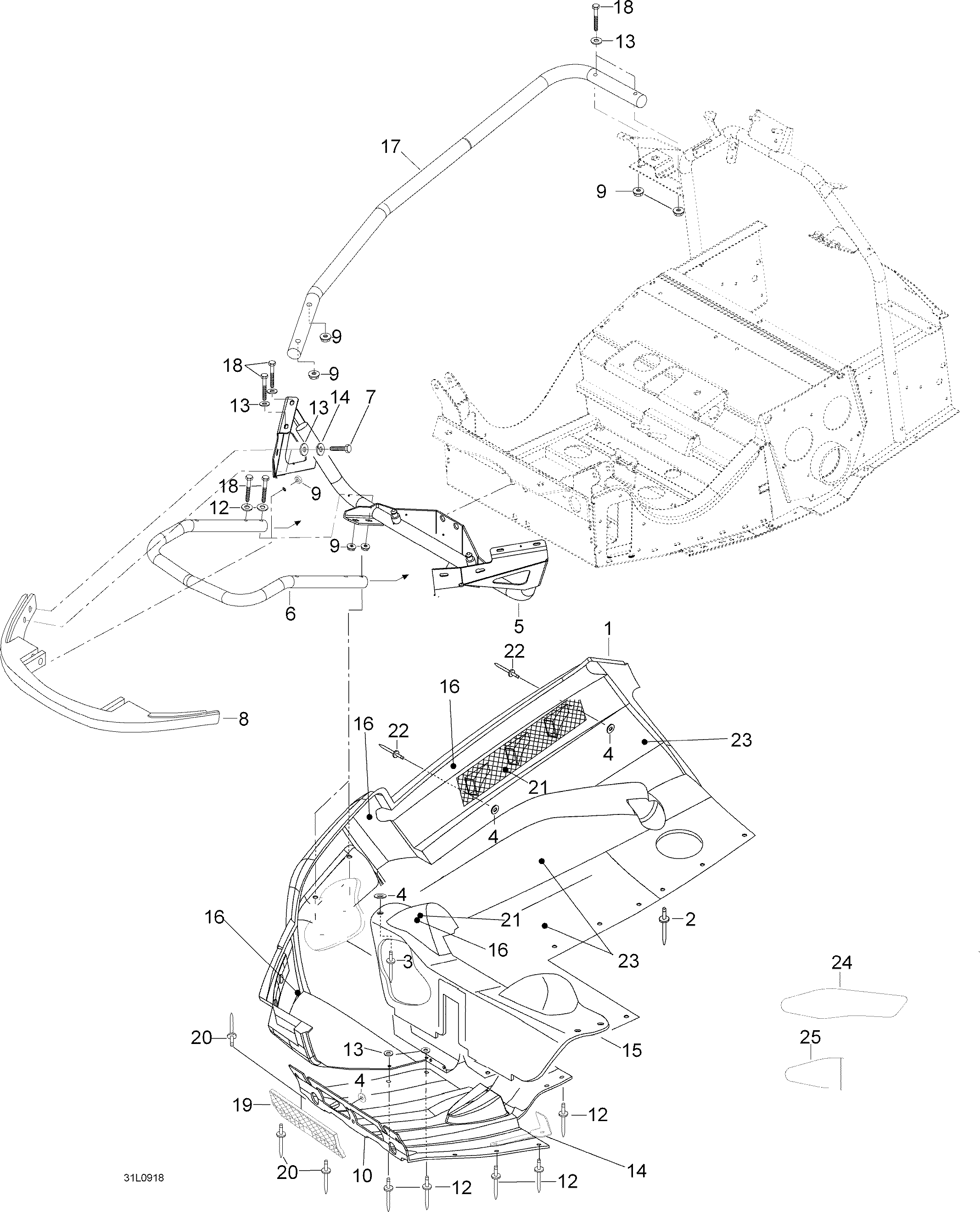

09- Bottom Pan для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
1605155753 Bottom pan R.H. ass'yBottom pan R.H. ass'y
-
1605155679 Bottom pan L.H. Ass'yBottom pan L.H. Ass'y
-
236037 RivetRivet
-
336108 RivetRivet
-
420008 Washer A5,3Washer A5,3
-
5605255398 Bumper supportBumper support
-
6605351509 BumperBumper
-
740029 Screwi M6 x 16Screwi M6 x 16
-
8502006719 Bumper, blackBumper, black
-
933200 Nut M6, NylockNut M6, Nylock
-
10605154930 Bottom pan centerBottom pan center
-
11605355617 Bottom Pan Riveting plateBottom Pan Riveting plate
-
1236072 RivetRivet
-
1320009 Washer A6.4Washer A6.4
-
1420052 Spring washer A6Spring washer A6
-
15605355606 Shock coverShock cover
-
1644001 Heat protector (1000mm x 1000mm)Heat protector (1000mm x 1000mm)
-
17605255395 Side bumperSide bumper
-
1840002 Screw M6 x 40Screw M6 x 40
-
19605255513 Front grillFront grill
-
2036071 RivetRivet
-
21605354968 Side grill R.H.Side grill R.H.
-
21605354969 Side grill L.H.Side grill L.H.
-
2236009 RivetRivet
-
23605355755 Isolation bottompan R.HIsolation bottompan R.H
-
24619690002 Laminated heat insulatorLaminated heat insulator
-
25605355681 Isolation bottompan L.HIsolation bottompan L.H
