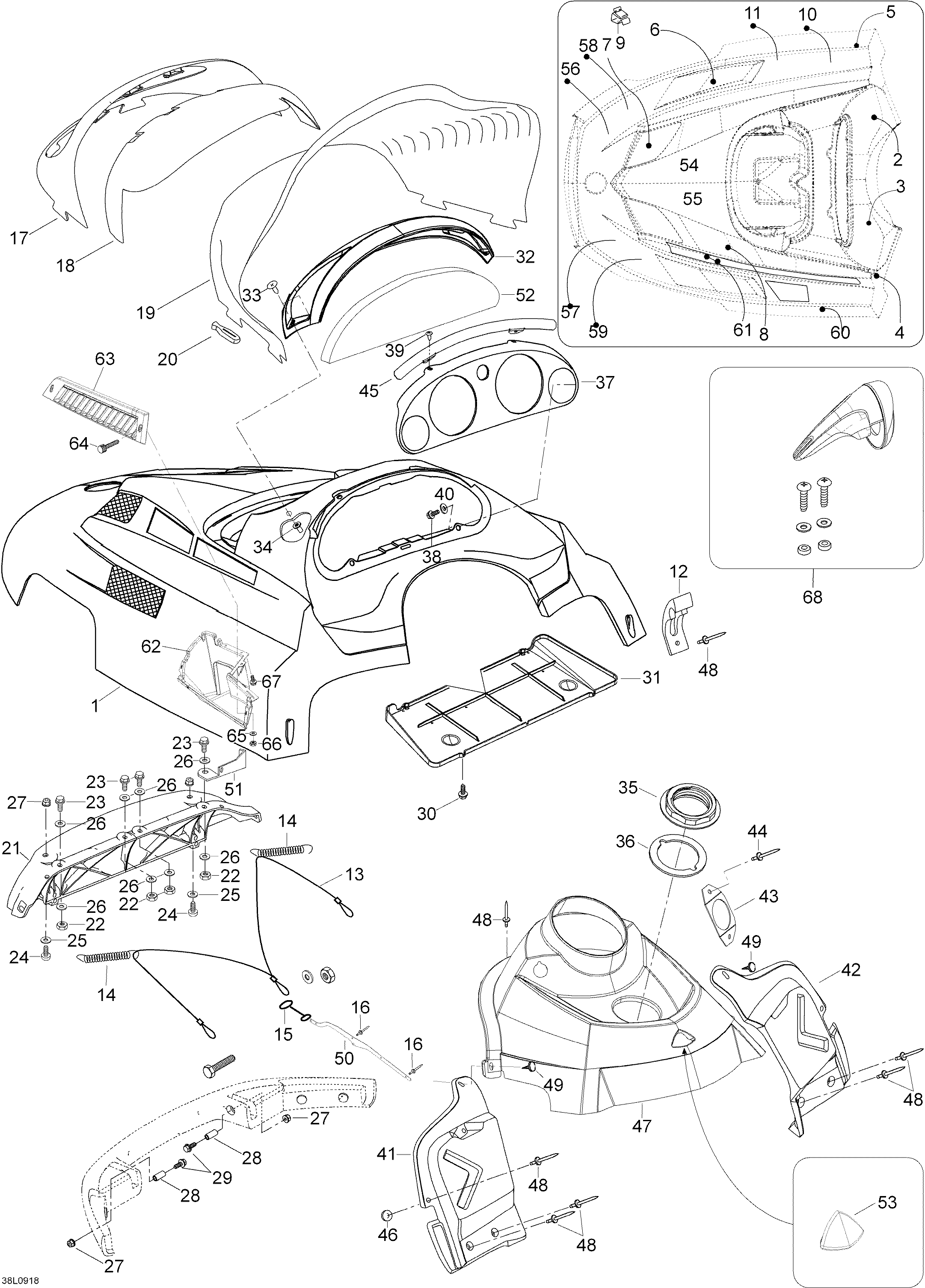

09- Hood для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
1605155900 Hood. pre ass'y Speed Silver. Includes 1 to 11Hood. pre ass'y Speed Silver. Includes 1 to 11
-
2605350906 Isolation Rear L.H.Isolation Rear L.H.
-
3605350907 Isolation Rear R.H.Isolation Rear R.H.
-
4605350908 Isolation Rear R.H. folioIsolation Rear R.H. folio
-
5605350909 Isolation rear L.H. lowerIsolation rear L.H. lower
-
6605350923 L.H. GrillL.H. Grill
-
6605350924 R.H. GrillR.H. Grill
-
7605350925 L.H. GrillL.H. Grill
-
7605350926 R.H. GrillR.H. Grill
-
8605350927 Grill, rearGrill, rear
-
9414227300 PidikejousiPidikejousi
-
10605350910 Isolation Rear L.H. UpperIsolation Rear L.H. Upper
-
11605350911 Isolation Rear Center L.HIsolation Rear Center L.H
-
12517302152 LatchLatch
-
13605351372 Retainer cableRetainer cable
-
145442675 SpringSpring
-
155442870 BracketBracket
-
1636002 RivetRivet
-
17517302158 Moulding Head LampMoulding Head Lamp
-
18517302003 Windshiel supportWindshiel support
-
19605152073 WindshieldWindshield
-
20570023800 LatchLatch
-
21517302631 Hinge halfHinge half
-
2233010 Elastic stop nut M6Elastic stop nut M6
-
2340030 Hex, screw M6 x 20Hex, screw M6 x 20
-
2440381 Socket head screw M6 x 20Socket head screw M6 x 20
-
2520117 Washer 6mmWasher 6mm
-
2620009 Washer A6,4Washer A6,4
-
2733200 Elastic flanged nut M6Elastic flanged nut M6
-
28517302179 BushingBushing
-
2940003 Hex. screw M6 x 35Hex. screw M6 x 35
-
30243141630 Screw M4.8 x 16Screw M4.8 x 16
-
31605354612 Air intake plateAir intake plate
-
32605151832 CoverCover
-
3340061 Screw M4 x 18Screw M4 x 18
-
3428051 Well-nutWell-nut
-
35517302043 Nut, consoleNut, console
-
365447116 GasketGasket
-
37605354134 Indicator supportIndicator support
-
3840611 Self tapping screw K40 x 10Self tapping screw K40 x 10
-
3940888 Wronic-screw 4,2 x 19Wronic-screw 4,2 x 19
-
4020039 WasherWasher
-
41605251384 L.H. ConsoleL.H. Console
-
42605251922 R.H. ConsoleR.H. Console
-
43605352405 Support, R.H. ConsoleSupport, R.H. Console
-
4436005 RivetRivet
-
45605352586 Support plateSupport plate
-
4620008 Washer A5,3Washer A5,3
-
47605252075 Middle consoleMiddle console
-
4836037 RivetRivet
-
49414644300 DartDart
-
50605452657 Support, hoodSupport, hood
-
51605351464 R.H. support, hoodR.H. support, hood
-
51605351463 L.H. support, hoodL.H. support, hood
-
52605352583 FilterFilter
-
53605453896 PluggPlugg
-
54605350912 Isolation center LHIsolation center LH
-
55605350913 Isolation center R.H.Isolation center R.H.
-
6144001 Relective sheetRelective sheet
-
62605354585 Cooling channel innerCooling channel inner
-
63605354586 Cooling channel outerCooling channel outer
-
64250000130 Screw M5 x 20Screw M5 x 20
-
6520008 Washer A5,3Washer A5,3
-
6633009 Elastic stop nut M5Elastic stop nut M5
-
6740847 Wronic-screw, black 4,2 x 13Wronic-screw, black 4,2 x 13
-
68517303955 Mirror kitMirror kit
