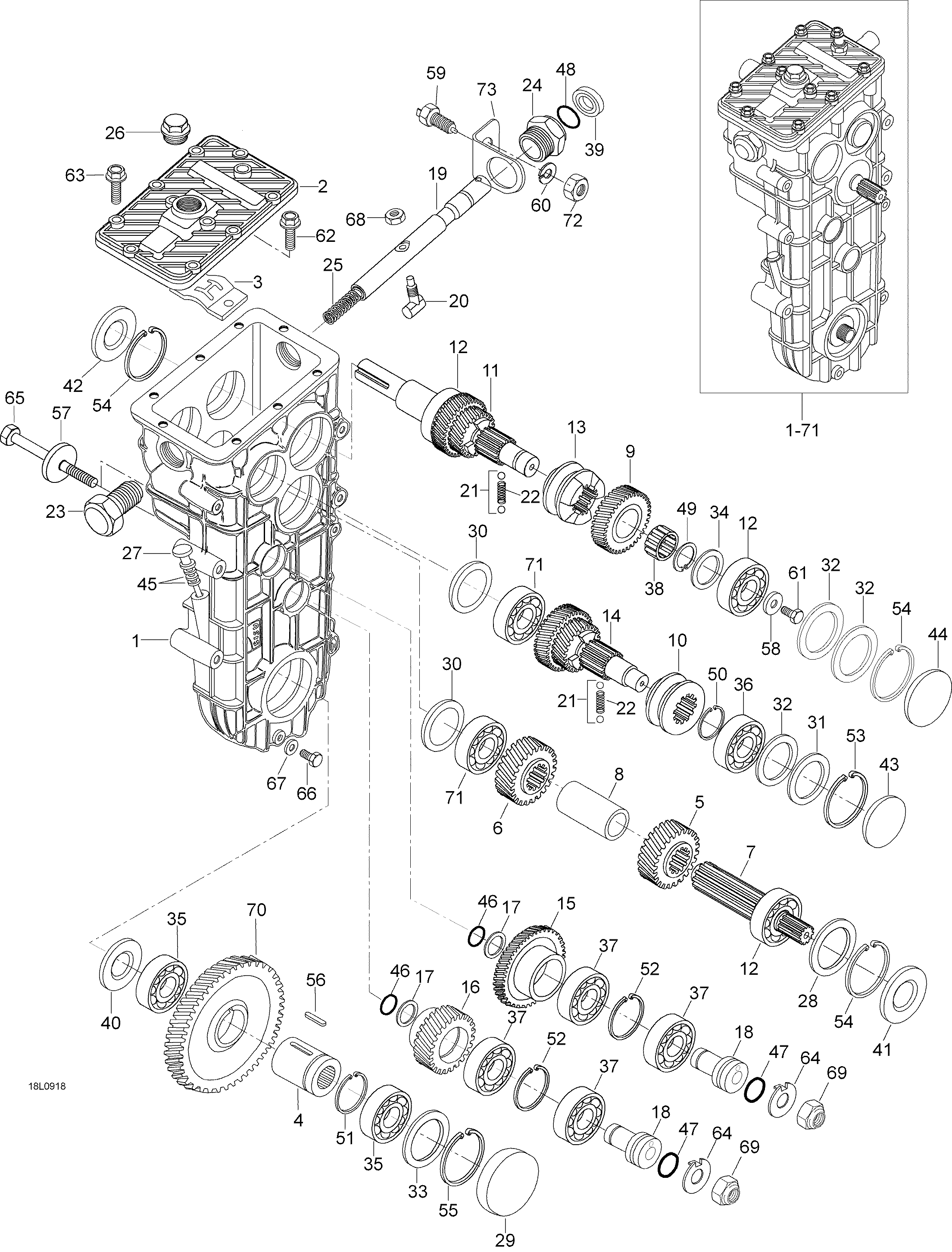

05- Transmission для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
-605612000 Transmission ass'y. Includes 1 to 71Transmission ass'y. Includes 1 to 71
-
1875156138 HousingHousing
-
2875156043 CoverCover
-
3875156111 H-schemeH-scheme
-
4875156218 ShaftShaft
-
5875156276 Gear Z=29Gear Z=29
-
6875156054 Sprocket (34 Tooth)Sprocket (34 Tooth)
-
7875156069 ShaftShaft
-
8875156087 SleeveSleeve
-
9875156052 Sprocket (27 Tooth)Sprocket (27 Tooth)
-
10875156005 Wheel clutchWheel clutch
-
11875156063 Counter shaft. Includes 11 to 12Counter shaft. Includes 11 to 12
-
12610063050 Bearing 6305Bearing 6305
-
13875156005 Clutch wheelClutch wheel
-
14875156068 Reverse shaftReverse shaft
-
15875156050 Sprocket (28 Tooth)Sprocket (28 Tooth)
-
16875156049 Sprocket (31 Tooth)Sprocket (31 Tooth)
-
17875156328 RingRing
-
18619230005 ShaftShaft
-
19875156072 ShaftShaft
-
20875156073 PinPin
-
21616810064 BallBall
-
22875156105 SpringSpring
-
23875156076 SleeveSleeve
-
24875156077 SleeveSleeve
-
25875156078 SpringSpring
-
26875156098 PlugPlug
-
27875156278 DipstickDipstick
-
28617395067 Adjustment shim 0.5mmAdjustment shim 0.5mm
-
29614100068 PlugPlug
-
30875152953 PlugPlug
-
31617394352 Adjustment shim 0.5mmAdjustment shim 0.5mm
-
31617394252 Adjustment shim 0.3mmAdjustment shim 0.3mm
-
32617395065 Adjustment shim 0.3mmAdjustment shim 0.3mm
-
33617395568 Adjustment shimAdjustment shim
-
34616092542 WasherWasher
-
356008 BearingBearing
-
366304 Bearing 6304Bearing 6304
-
37612030303 BearingBearing
-
38611002529 Needle bearingNeedle bearing
-
39614102031 Oil sealOil seal
-
40614102852 Oil sealOil seal
-
41614102562 Oil sealOil seal
-
42614103562 Oil sealOil seal
-
43614100052 PlugPlug
-
44614100062 PlugPlug
-
45614600725 O-ringO-ring
-
46614601224 O-ringO-ring
-
47614602431 O-ringO-ring
-
48614601523 O-ringO-ring
-
49617450025 CirclipCirclip
-
50617450028 CirclipCirclip
-
51617300040 CirclipCirclip
-
52617330047 CirclipCirclip
-
5331002 CirclipCirclip
-
54617330062 CirclipCirclip
-
55617330068 CirclipCirclip
-
56603345080 KeyKey
-
57619230004 WasherWasher
-
58875156112 WasherWasher
-
59654100225 SenderSender
-
6020016 WasherWasher
-
6140036 Hex. screwHex. screw
-
62534801362 Hex. screw M8 x 16Hex. screw M8 x 16
-
63537001402 Hex. screw M8 x 25Hex. screw M8 x 25
-
64875156327 WasherWasher
-
65619230003 Screw M8 x 80Screw M8 x 80
-
66528801342 ScrewScrew
-
67615580812 Seal ringSeal ring
-
68510611002 Nut M10Nut M10
-
69510600802 Nut M10Nut M10
-
70875156048 Sprocket (55 Tooth)Sprocket (55 Tooth)
-
71610063044 Bearing 6304Bearing 6304
-
7233021 Nut M12Nut M12
-
735346698 BracketBracket
