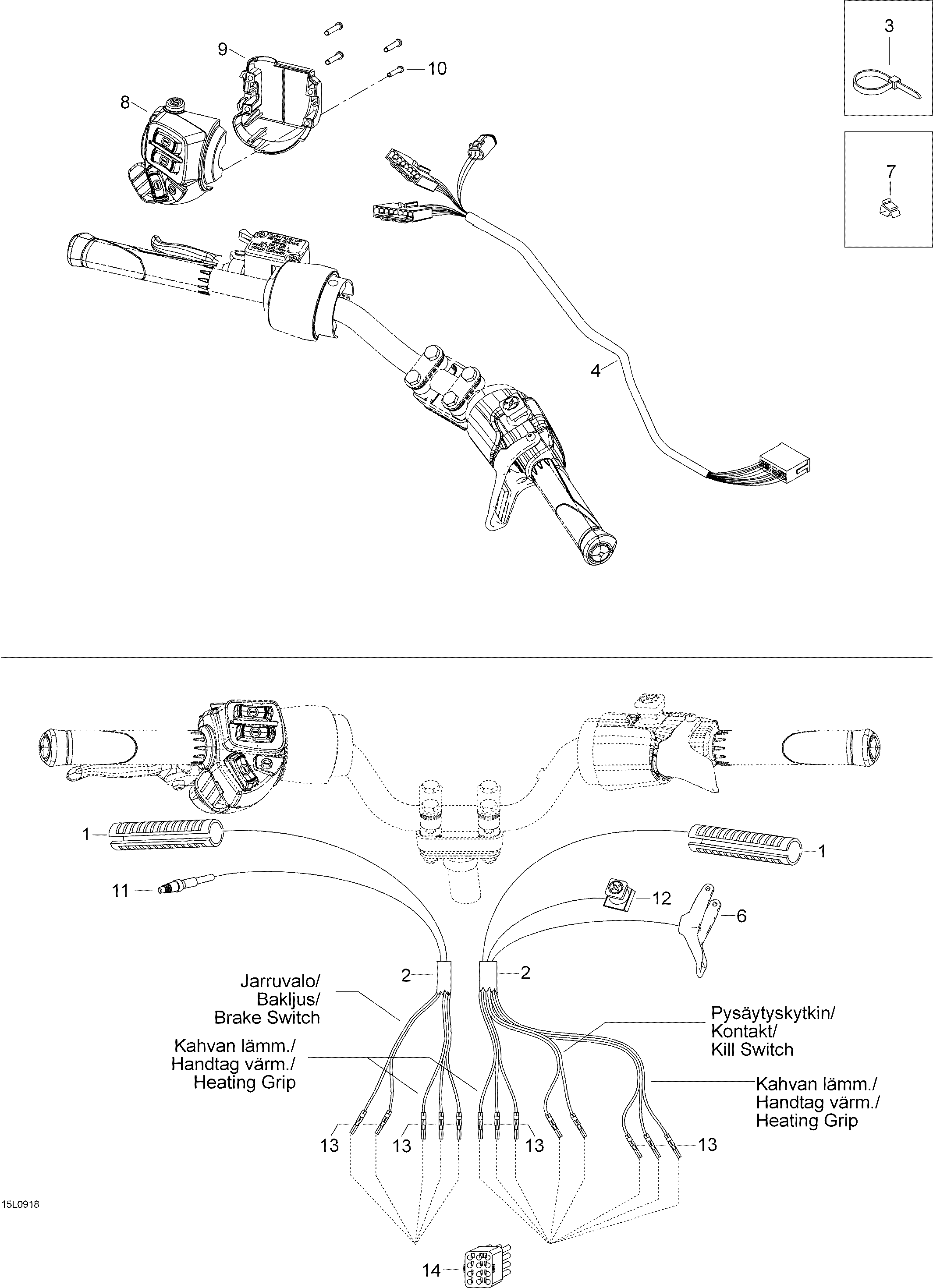

10- Steering Harness для BRP Lynx YETI SUV 550 - 2009
-
№АртикулНазвание
-
1515176139 Heater grip elementHeater grip element
-
239023 TubingTubing
-
327100 Tie-rap 363 mmTie-rap 363 mm
-
4605353266 Steering harnessSteering harness
-
5605353266 Staaring-bar harness. Not shown in the pictureStaaring-bar harness. Not shown in the picture
-
6512060214 Throttle handleThrottle handle
-
7414227300 ClipClip
-
8515175771 Switch housingSwitch housing
-
9515175926 Switch housing plateSwitch housing plate
-
1040903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
11507032366 MicroswitchMicroswitch
-
12605355643 Kill switchKill switch
-
13605642628 Male connectorMale connector
-
1442617 Male connector housing (15-circuit)Male connector housing (15-circuit)
