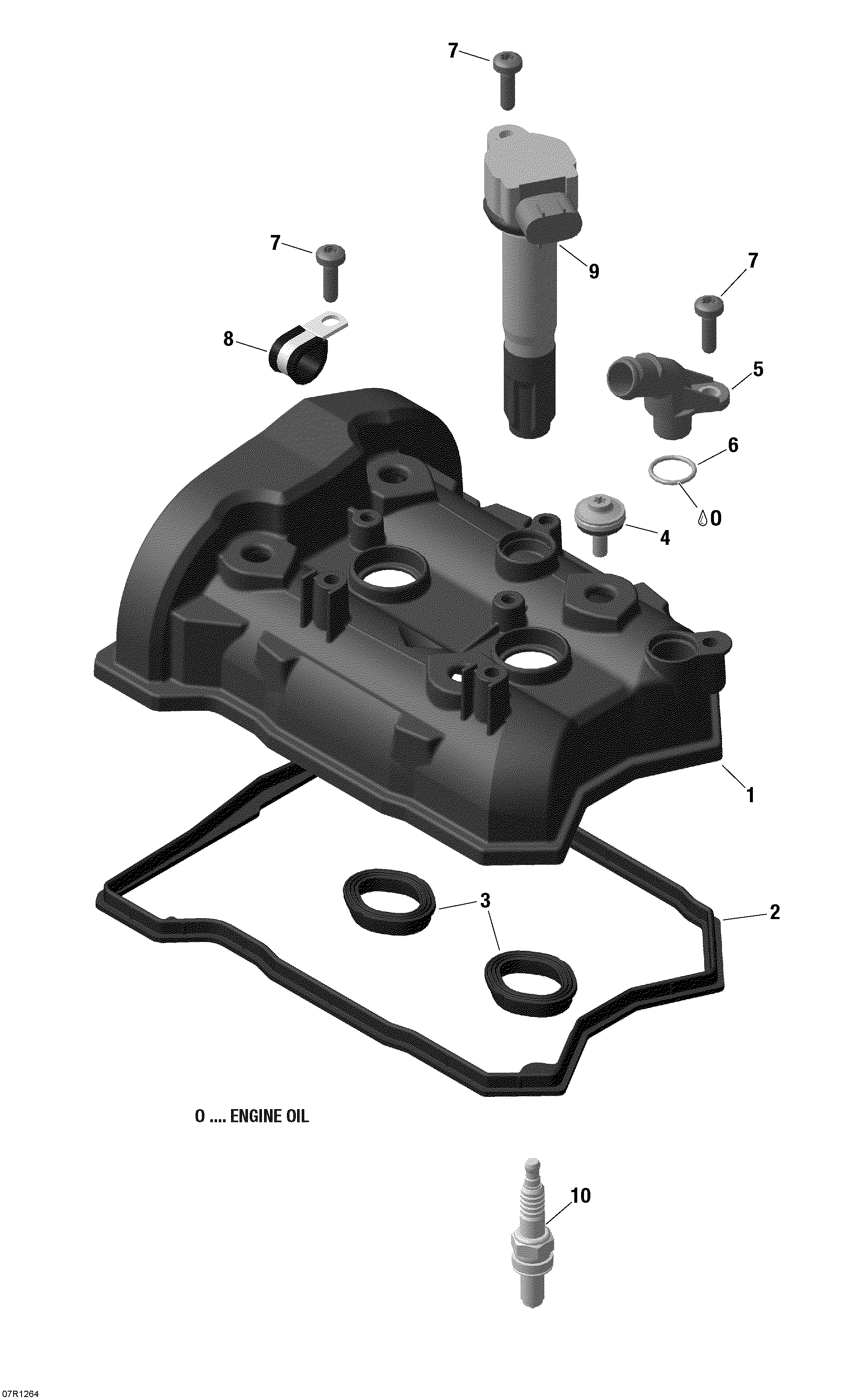

01- Valve Cover для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1420911040 VALVE COVERVALVE COVER
-
2420431620 GASKET. INCLUDED IN GASKET KITGASKET. INCLUDED IN GASKET KIT
-
3420431750 GASKET. INCLUDED IN GASKET KITGASKET. INCLUDED IN GASKET KIT
-
4420440495 TORX-DISTANCE SCREW ASSY. M6. TIGHTENING TORQUE 10NM +/- 12%TORX-DISTANCE SCREW ASSY. M6. TIGHTENING TORQUE 10NM +/- 12%
-
5420611240 BLOW BY CONNECTORBLOW BY CONNECTOR
-
6420631260 O-RING DIN 3771-16X2-N, FPM 75. INCLUDED IN GASKET KITO-RING DIN 3771-16X2-N, FPM 75. INCLUDED IN GASKET KIT
-
7420441381 TORX-TR-SCREW 6X20. TIGHTENING TORQUE 10NM +/- 12%TORX-TR-SCREW 6X20. TIGHTENING TORQUE 10NM +/- 12%
-
8420851492 CABLE CLAMP 15/M6CABLE CLAMP 15/M6
-
9420666140 STICK COILSTICK COIL
-
10415129670 Spark plug. TIGHTENING TORQUE 15NM +/- 12%Spark plug. TIGHTENING TORQUE 15NM +/- 12%
-
O293600112 ENGINE OILENGINE OIL
