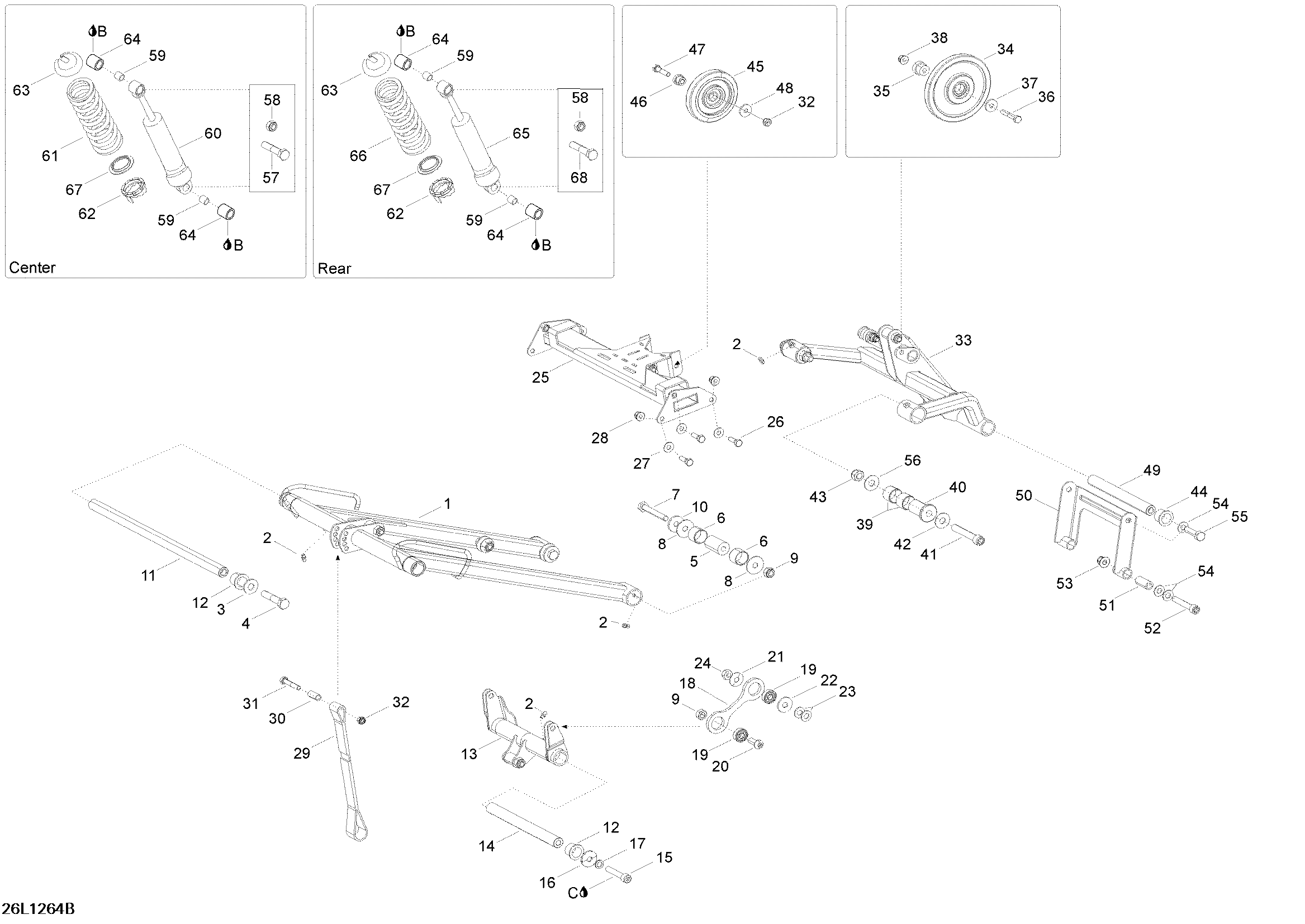

08- Rear Suspension для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1503192557 Front ArmFront Arm
-
2408200700 Grease FittingGrease Fitting
-
3250200005 Washer Spring ConicalWasher Spring Conical
-
440243 Screw Hex M12 x 60Screw Hex M12 x 60
-
5605354157 Shaft Lower ShortShaft Lower Short
-
631065 BushingBushing
-
740021 Screw Hex 10 x 70Screw Hex 10 x 70
-
8605355801 WasherWasher
-
9232500416 Nut Stop ElasticNut Stop Elastic
-
10503183300 WasherWasher
-
11503192046 Shaft UpperShaft Upper
-
1231024 BearingBearing
-
13503192518 Swing WeldSwing Weld
-
14605355800 Shaft Front LowerShaft Front Lower
-
15205505547 Screw SocketScrew Socket
-
16512056700 Washer LockWasher Lock
-
1720068 Lock Washer D10 (NORD-LOCK)Lock Washer D10 (NORD-LOCK)
-
18605254159 BarBar
-
19605631003 Bearing 6000-2RS1Bearing 6000-2RS1
-
20205402546 Screw SocketScrew Socket
-
2125004 Cup SpringCup Spring
-
22234002600 Washer FlatWasher Flat
-
23234001410 Washer FlatWasher Flat
-
24233401414 Nut Lock SpringNut Lock Spring
-
25503192566 Middle BeamMiddle Beam
-
26207182544 Screw Hex CapScrew Hex Cap
-
27605620002 WasherWasher
-
28233281414 Nut Flange ElasticNut Flange Elastic
-
29605355116 Limiter StrapLimiter Strap
-
30605455335 SleeveSleeve
-
31207084544 Screw Hex CapScrew Hex Cap
-
32232581414 Nut Stop ElasticNut Stop Elastic
-
33503192524 Rear Arm WeldRear Arm Weld
-
34503192675 Idler Wheel 133 mmIdler Wheel 133 mm
-
35605454461 SleeveSleeve
-
36207084544 Screw HexScrew Hex
-
3720077 WasherWasher
-
38233281414 Nut Flange ElasticNut Flange Elastic
-
3931065 BushingBushing
-
40605354157 BushingBushing
-
41205006544 Screw SocketScrew Socket
-
42234002410 WasherWasher
-
43232500416 Nut Stop ElasticNut Stop Elastic
-
4431024 BearingBearing
-
45572043500 Idler WheelIdler Wheel
-
46605454167 SleeveSleeve
-
47207083544 Screw Hex CapScrew Hex Cap
-
4820077 WasherWasher
-
49605355118 ShaftShaft
-
50503192571 Rear SwingRear Swing
-
51503192341 Rear Swing ShaftRear Swing Shaft
-
52205006044 Screw SocketScrew Socket
-
53233201414 Nut Flange ElasticNut Flange Elastic
-
54234001410 Washer FlatWasher Flat
-
55207204044 Screw Hex CapScrew Hex Cap
-
56605355801 WasherWasher
-
57207004544 Screw HexScrew Hex
-
58232500416 Nut Stop ElasticNut Stop Elastic
-
595446652 BushingBushing
-
60503192322 ShockShock
-
61503192431 SpringSpring
-
62230078 Adjuster CamAdjuster Cam
-
63230076 Spring StopperSpring Stopper
-
6431094 Glide BearingGlide Bearing
-
65503192324 ShockShock
-
66605625009 SpringSpring
-
67230049 Spring GuideSpring Guide
-
68205504544 Screw SocketScrew Socket
-
A293550033 GreaseGrease
-
B293800005 Loctite 271 redLoctite 271 red
-
C32161 Loctite 641, 50mlLoctite 641, 50ml
