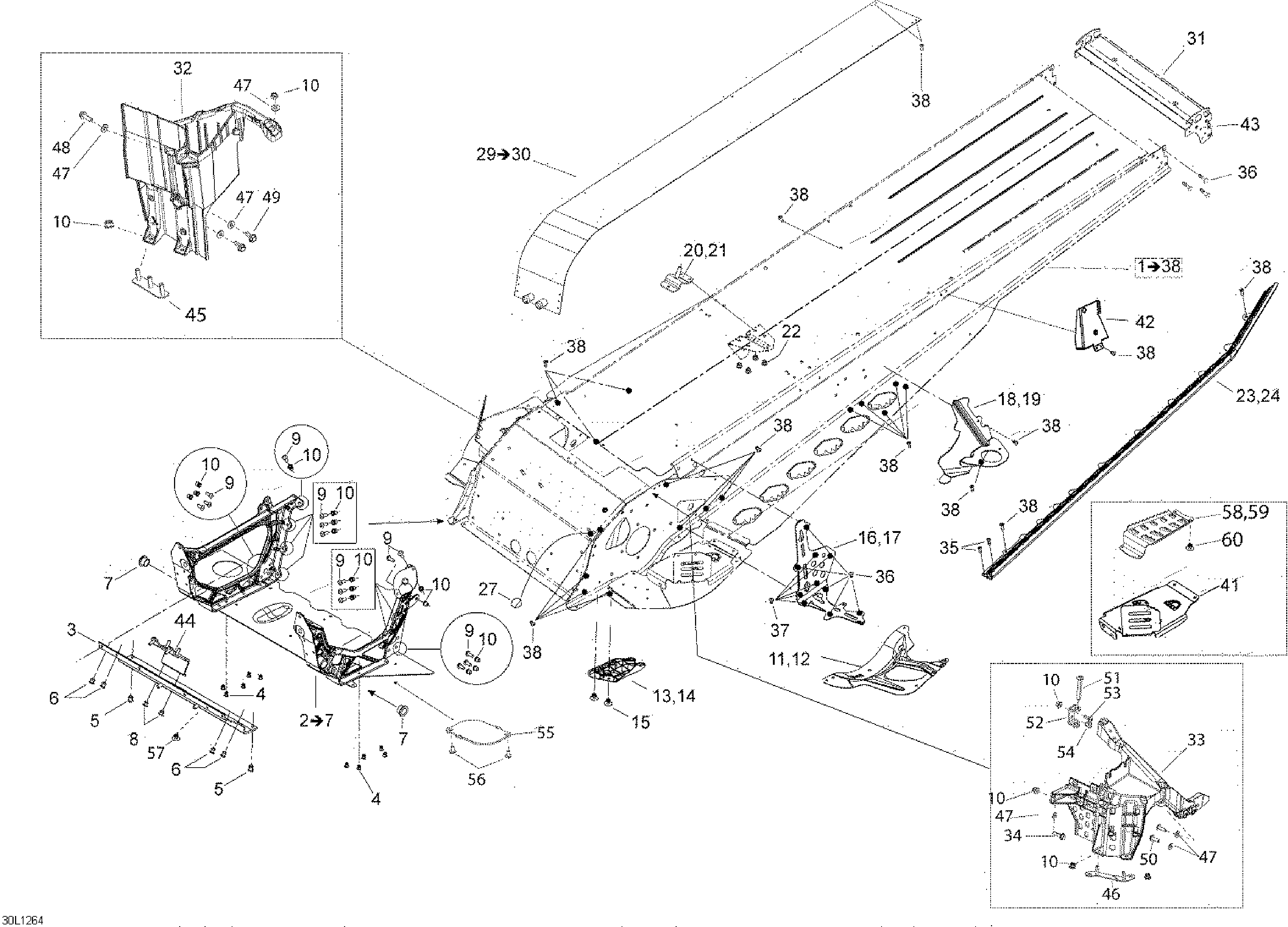

09- Frame для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1518327071 Frame assy. Includes 1 to 39Frame assy. Includes 1 to 39
-
2518326507 E ModuleE Module
-
3518326198 Front MemberFront Member
-
4390909100 Avex RivetAvex Rivet
-
5293150120 Hemlock RivetHemlock Rivet
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505072690 CushionCushion
-
8293150174 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9207662044 Flanged screw M6 x 20Flanged screw M6 x 20
-
10233261414 Flanged elastic nut M6Flanged elastic nut M6
-
11518324874 RH ReinforcementRH Reinforcement
-
12518324875 LH ReinforcementLH Reinforcement
-
13518325782 RH DeflectorRH Deflector
-
14518325783 LH DeflectorLH Deflector
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518326421 RH Rear BaseRH Rear Base
-
21518326443 LH Rear BaseLH Rear Base
-
22293150119 RivetRivet
-
23518327068 LH RollerLH Roller
-
24518327069 RH RollerRH Roller
-
27518325560 Adhesive PatchAdhesive Patch
-
29509000645 Rear Radiator. Includes 29 to 30Rear Radiator. Includes 29 to 30
-
31518326379 Rear CapRear Cap
-
32518326472 Battery supportBattery support
-
33518326820 CaliberCaliber
-
34207162544 Screw hex capScrew hex cap
-
35390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36207582586 Screw Forming M8 X 25Screw Forming M8 X 25
-
37390909100 Avex RivetAvex Rivet
-
38390909200 Avex RivetAvex Rivet
-
42510005285 Seat support R.HSeat support R.H
-
42510005286 Seat support L.HSeat support L.H
-
43518326637 Rear side plateRear side plate
-
44518326178 Engine supportEngine support
-
45518326550 Attach R.HAttach R.H
-
46518326986 Attach L.HAttach L.H
-
47250200039 Washer A6Washer A6
-
48210262040 Screw Forming M6 X 20Screw Forming M6 X 20
-
49207661684 Screw hex flange M6Screw hex flange M6
-
50250000536 Torx truss M6x18Torx truss M6x18
-
51250000535 Torx truss M6x55Torx truss M6x55
-
52518326961 AttachAttach
-
53250000534 ScrewScrew
-
54293150147 RivetRivet
-
55518326757 Oil PlateOil Plate
-
56250000325 Torx trussTorx truss
-
57293730042 DartDart
-
58520000887 Foot rest R.HFoot rest R.H
-
59520000888 Foot rest L.HFoot rest L.H
-
60390402200 Rivet pop 3/16Rivet pop 3/16
