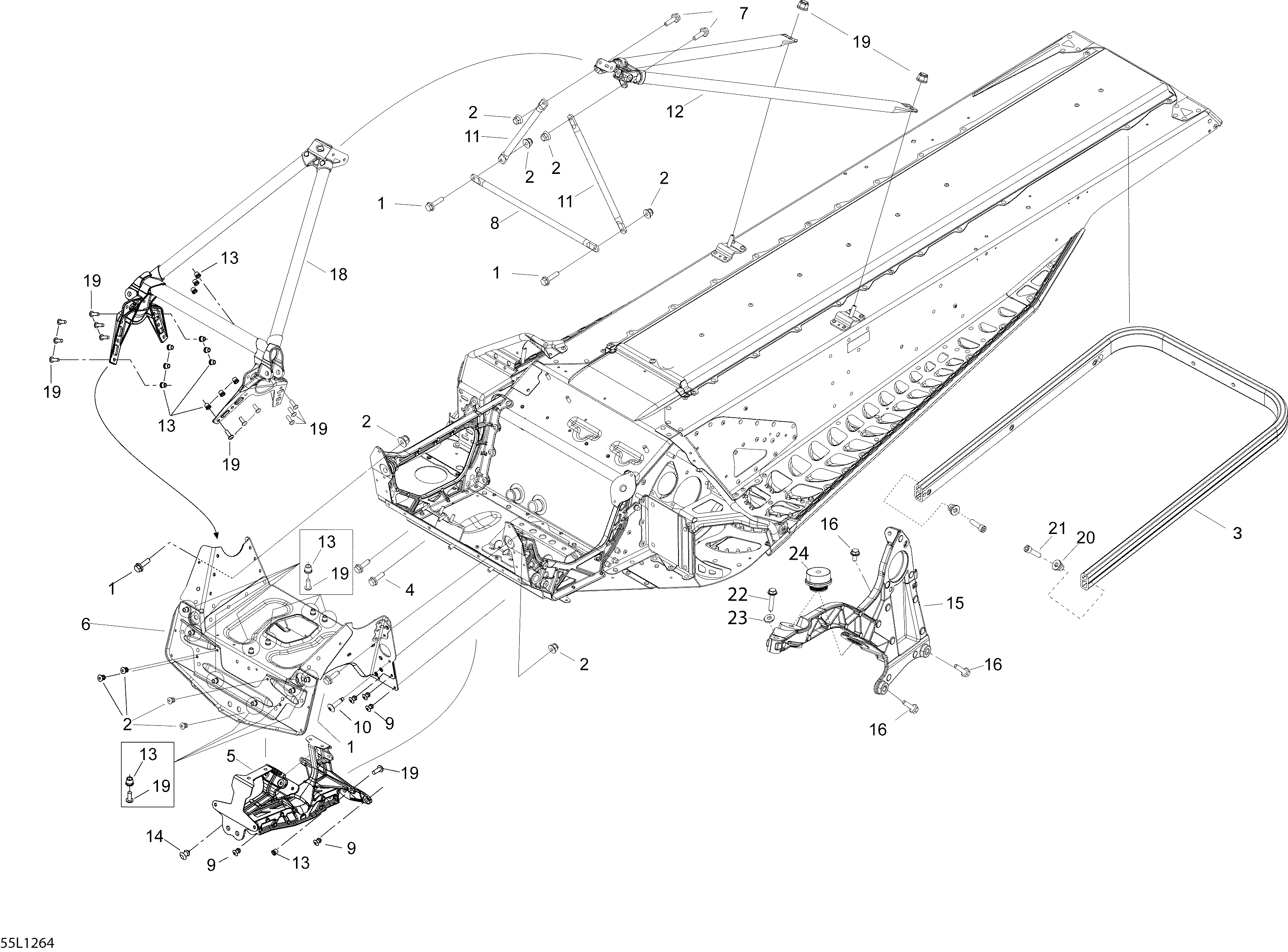

09- Frame And Components для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3510005582 Rack barRack bar
-
4250000402 Torx trussTorx truss
-
5518325925 SupportSupport
-
6518327049 Cross member (S-module)Cross member (S-module)
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8518326355 Center Column SupportCenter Column Support
-
9293150144 Stavex RivetStavex Rivet
-
10210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
11518326848 Upper Column SupportUpper Column Support
-
12518326685 Rear MemberRear Member
-
13207662044 Hex. Flanged screw M6 x 20 (10.9)Hex. Flanged screw M6 x 20 (10.9)
-
14293150147 Hemlock RivetHemlock Rivet
-
15518326142 Brace assyBrace assy
-
16207582586 Screw HEX.Flange M8x25 DIN.6921 S.GRIPScrew HEX.Flange M8x25 DIN.6921 S.GRIP
-
18518326555 Front MemberFront Member
-
19233261414 Elastic flanged nut M6Elastic flanged nut M6
-
20510005287 BushingBushing
-
21205504044 Screw-Socket DIN.912 S.GRIP 6 X 40Screw-Socket DIN.912 S.GRIP 6 X 40
-
22207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
24512060295 Rubber mountRubber mount
