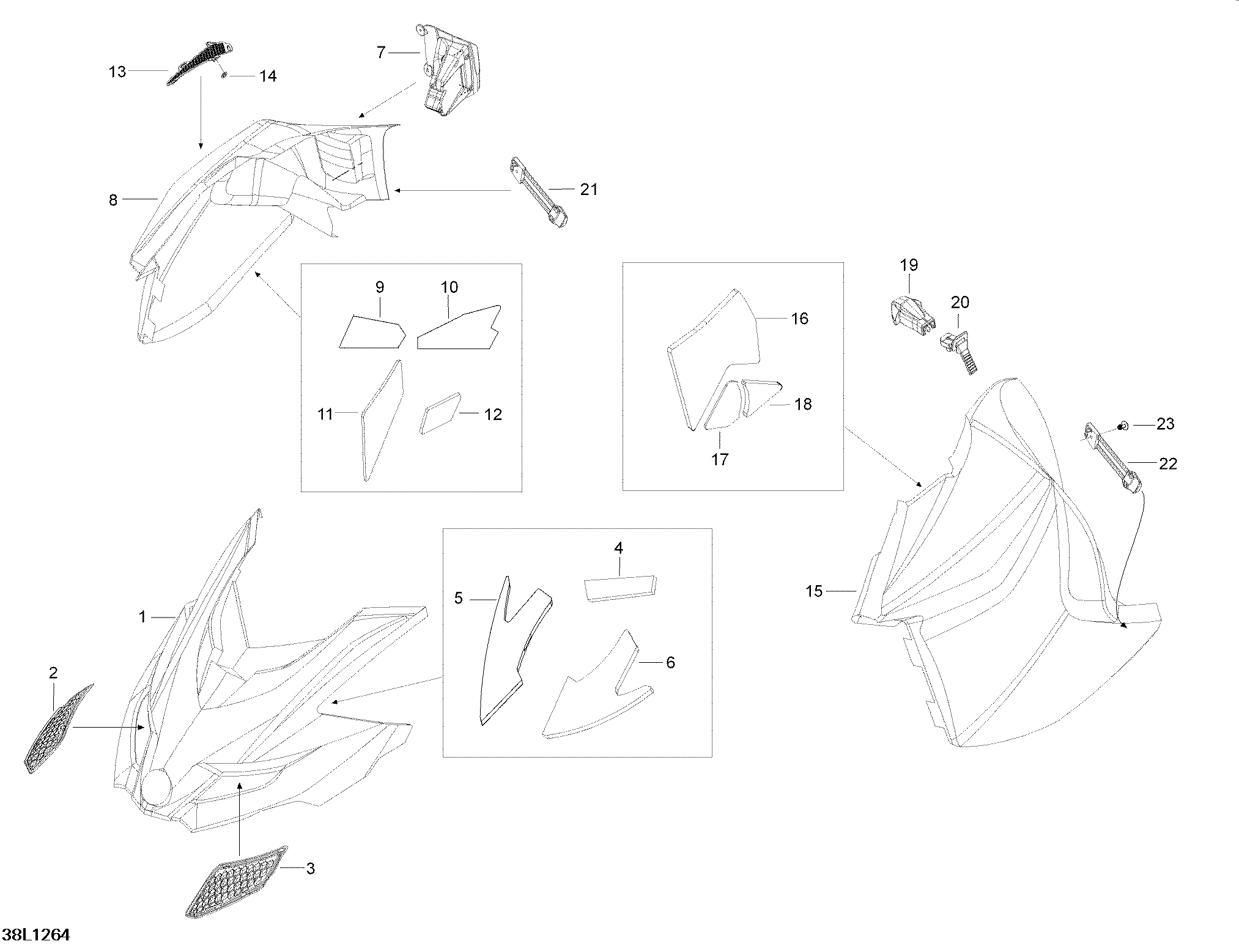

09- Hood для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1517304859 Hood, WhiteHood, White
-
2517304141 Hood Grill R.H.Hood Grill R.H.
-
3517304008 Hood Grill L.H.Hood Grill L.H.
-
4517304845 FoamFoam
-
5517304263 FoamFoam
-
6517304321 FoamFoam
-
7517304500 Console R.H.Console R.H.
-
8517304981 Side Panel R.H.Side Panel R.H.
-
9517304264 Aluminum FoilAluminum Foil
-
10517304265 Aluminum FoilAluminum Foil
-
11517304220 FoamFoam
-
12517304306 FoamFoam
-
13517304007 GrillGrill
-
14517302785 Clip U-TypeClip U-Type
-
15517304990 Side Panel L.H.Side Panel L.H.
-
16517304219 FoamFoam
-
17517304305 FoamFoam
-
18517304340 FoamFoam
-
19860200239 End PieceEnd Piece
-
20517303981 Latch Panel UpperLatch Panel Upper
-
21517304551 Latch Panel RH LowerLatch Panel RH Lower
-
22517303808 Latch Panel LH LowerLatch Panel LH Lower
-
23293150108 RivetRivet
