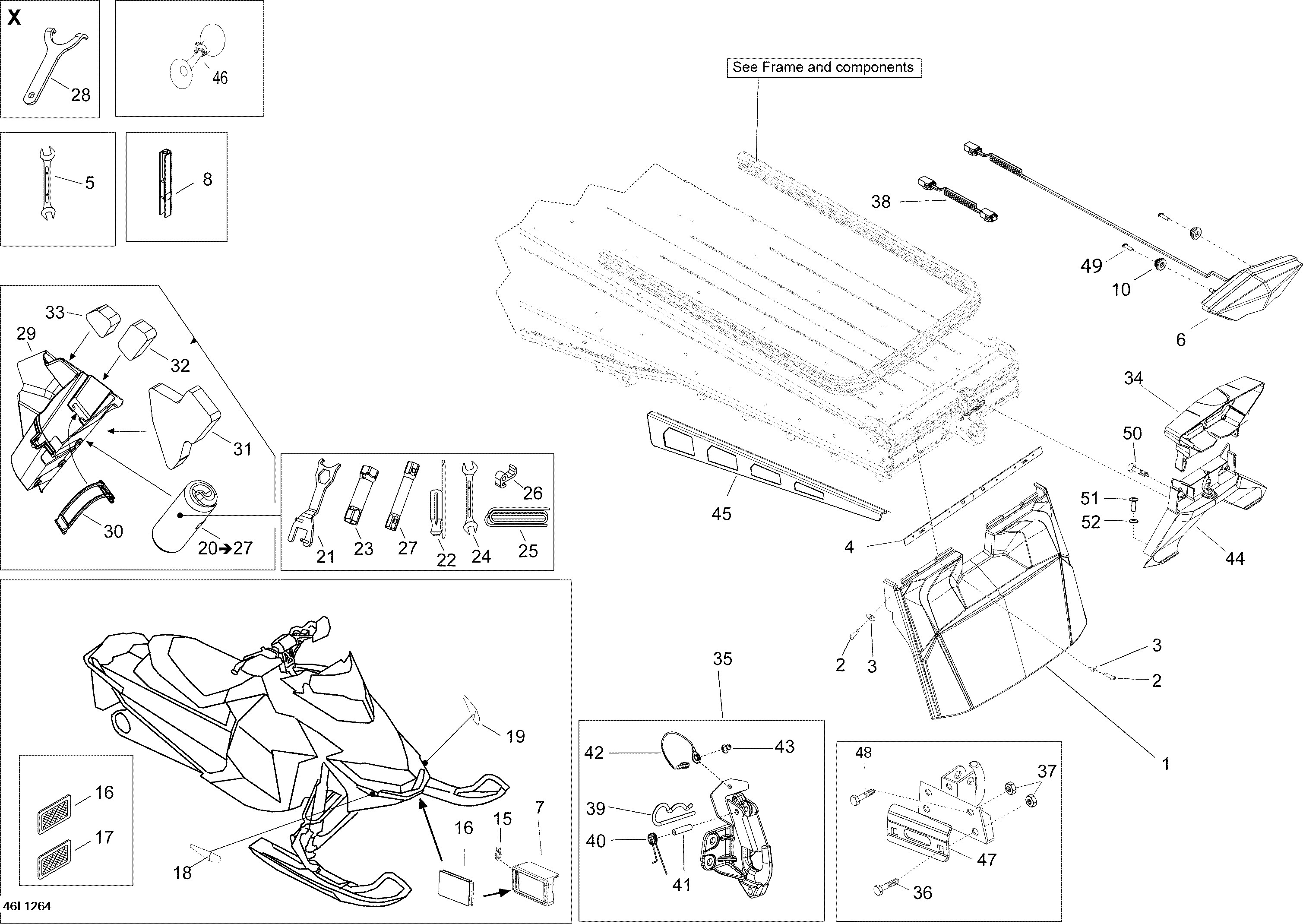

09- Utilities для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1520000998 Snow GuardSnow Guard
-
2732600030 Screw formingScrew forming
-
3517124300 WasherWasher
-
4520001020 Fastening plateFastening plate
-
534017 Fork Wrench 17/19Fork Wrench 17/19
-
6520000848 Rear LightRear Light
-
7520000871 Reflector supportReflector support
-
9520000758 BulbBulb
-
10705003666 GrommetGrommet
-
1527120 Tie rapTie rap
-
1621118 Reflector, brightReflector, bright
-
17705002423 Reflector, yellowReflector, yellow
-
18520000718 RH Front ReflectorRH Front Reflector
-
19520000719 LH Front ReflectorLH Front Reflector
-
20529000054 Tool Kit. Includes 20 to 27Tool Kit. Includes 20 to 27
-
21520000721 WrenchWrench
-
22529000004 Driver ScrewDriver Screw
-
24529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
25412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
26529019400 Starter GripStarter Grip
-
29520000842 Tool Kit RackTool Kit Rack
-
30520000528 LatchLatch
-
31520000743 FoamFoam
-
32520000753 FoamFoam
-
33520000754 FoamFoam
-
34511000764 Light coverLight cover
-
35520001039 Hitch AssyHitch Assy
-
36207784044 Screw 8x45Screw 8x45
-
37233281414 Nut Flange Elastic M8Nut Flange Elastic M8
-
38515177032 Wiring harness extensionWiring harness extension
-
3941029 Spring cotterSpring cotter
-
40545693 SpringSpring
-
4141012 Spring pinSpring pin
-
425446839 Retainer cableRetainer cable
-
43390909100 Rivet avexRivet avex
-
44511000559 SupportSupport
-
45520000694 RH protectorRH protector
-
45520000693 LH protectorLH protector
-
46549011291 HornHorn
-
47520000727 PlatePlate
-
48207782544 Screw 8x25Screw 8x25
-
49250000451 Screw torx flangeScrew torx flange
-
50207663534 Screw-Hex.Flange M6 X 35Screw-Hex.Flange M6 X 35
-
51205562044 Screw M6 X 20Screw M6 X 20
-
52234062410 Flat Washer M6Flat Washer M6
