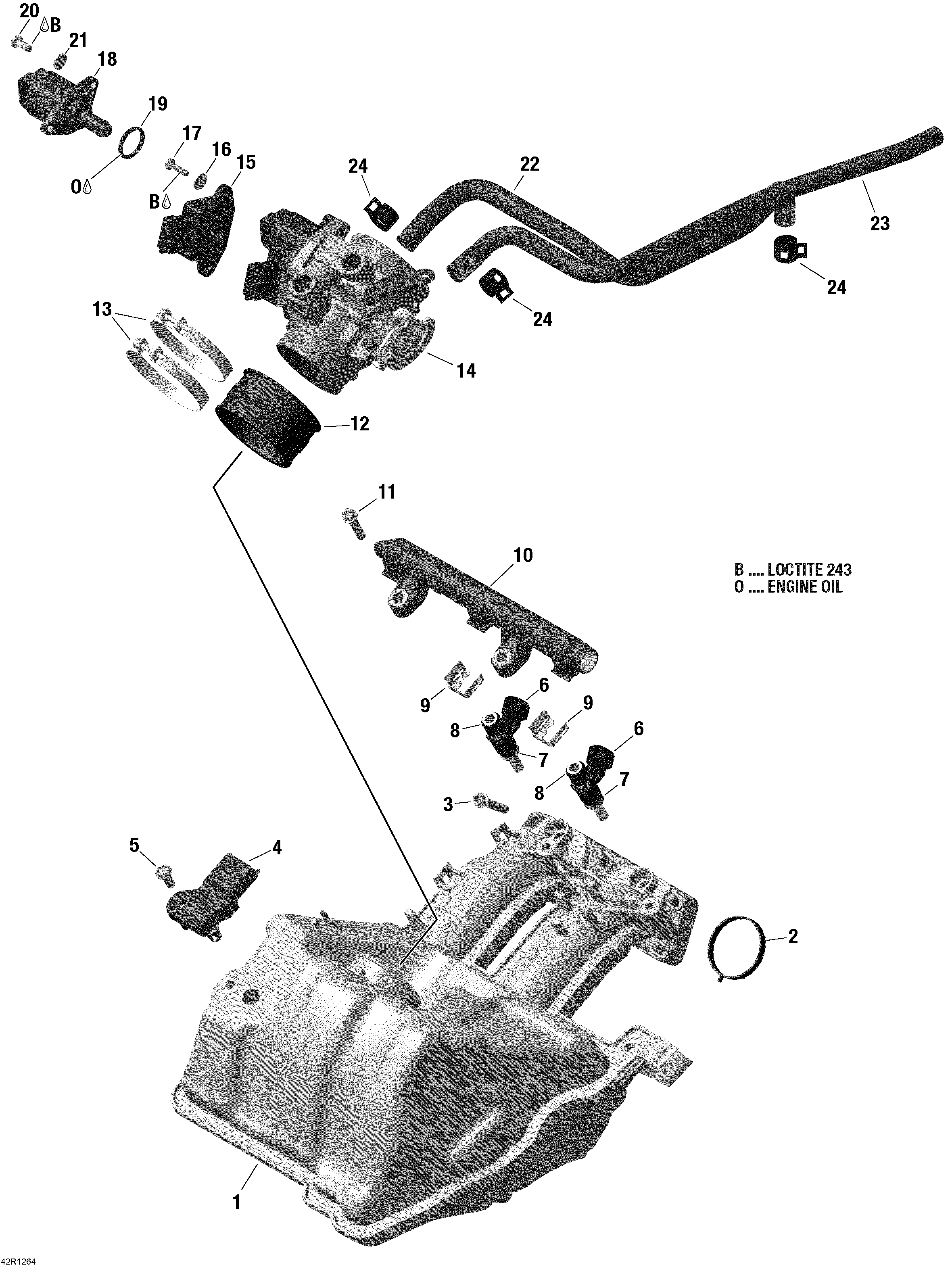

02- Air Intake Manifold And Throttle Body для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1-2420867020 AIRBOX ASSY.AIRBOX ASSY.
-
2420431660 GASKETGASKET
-
3420440647 HEX./TORX-FLANGE SCREW M6X30-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%HEX./TORX-FLANGE SCREW M6X30-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%
-
4707000995 PRESSURE-/TEMP. SENSOR. BOSCH 0261230030PRESSURE-/TEMP. SENSOR. BOSCH 0261230030
-
5420641583 TORX-PT-SCREW 6X16-T25 A2-70. TIGHTENING TORQUE 6NM +/- 12%TORX-PT-SCREW 6X16-T25 A2-70. TIGHTENING TORQUE 6NM +/- 12%
-
6-8420874838 INJECTION VALVE DEKA VII TYPE 0INJECTION VALVE DEKA VII TYPE 0
-
7420431890 O-RING 8,54X3,1 VITON B70. INCLUDED IN GASKET KITO-RING 8,54X3,1 VITON B70. INCLUDED IN GASKET KIT
-
8420631220 O-RING 7,52X3,51. INCLUDED IN GASKET KITO-RING 7,52X3,51. INCLUDED IN GASKET KIT
-
9420853030 INJECTOR CLIPINJECTOR CLIP
-
10420874960 FUEL RAILFUEL RAIL
-
11420440234 HEX./TORX-FLANGE SCREW M6X25-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%HEX./TORX-FLANGE SCREW M6X25-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%
-
12420460495 CONNECTING SOCKETCONNECTING SOCKET
-
13420251480 HOSE CLAMP 61. TIGHTENING TORQUE 0,7NM +/- 12%HOSE CLAMP 61. TIGHTENING TORQUE 0,7NM +/- 12%
-
14-21420296879 THROTTLE BODY ASSY.THROTTLE BODY ASSY.
-
18420665940 IDLE AIR CONTROL VALVEIDLE AIR CONTROL VALVE
-
19420631780 O-RING 18,72X2,62. INCLUDED IN GASKET KITO-RING 18,72X2,62. INCLUDED IN GASKET KIT
-
20420440911 BINDING HEAD SCREW M5X16. TIGHTENING TORQUE 4,5NM +/- 12%BINDING HEAD SCREW M5X16. TIGHTENING TORQUE 4,5NM +/- 12%
-
21420845710 SNAPRINGSNAPRING
-
22420460910 MOLDED HOSEMOLDED HOSE
-
23420460915 MOLDED HOSEMOLDED HOSE
-
24420853511 SPRING TYPE CLAMP 14SPRING TYPE CLAMP 14
-
B293800060 LOCTITE 243, 10 mlLOCTITE 243, 10 ml
-
O293600112 ENGINE OILENGINE OIL
