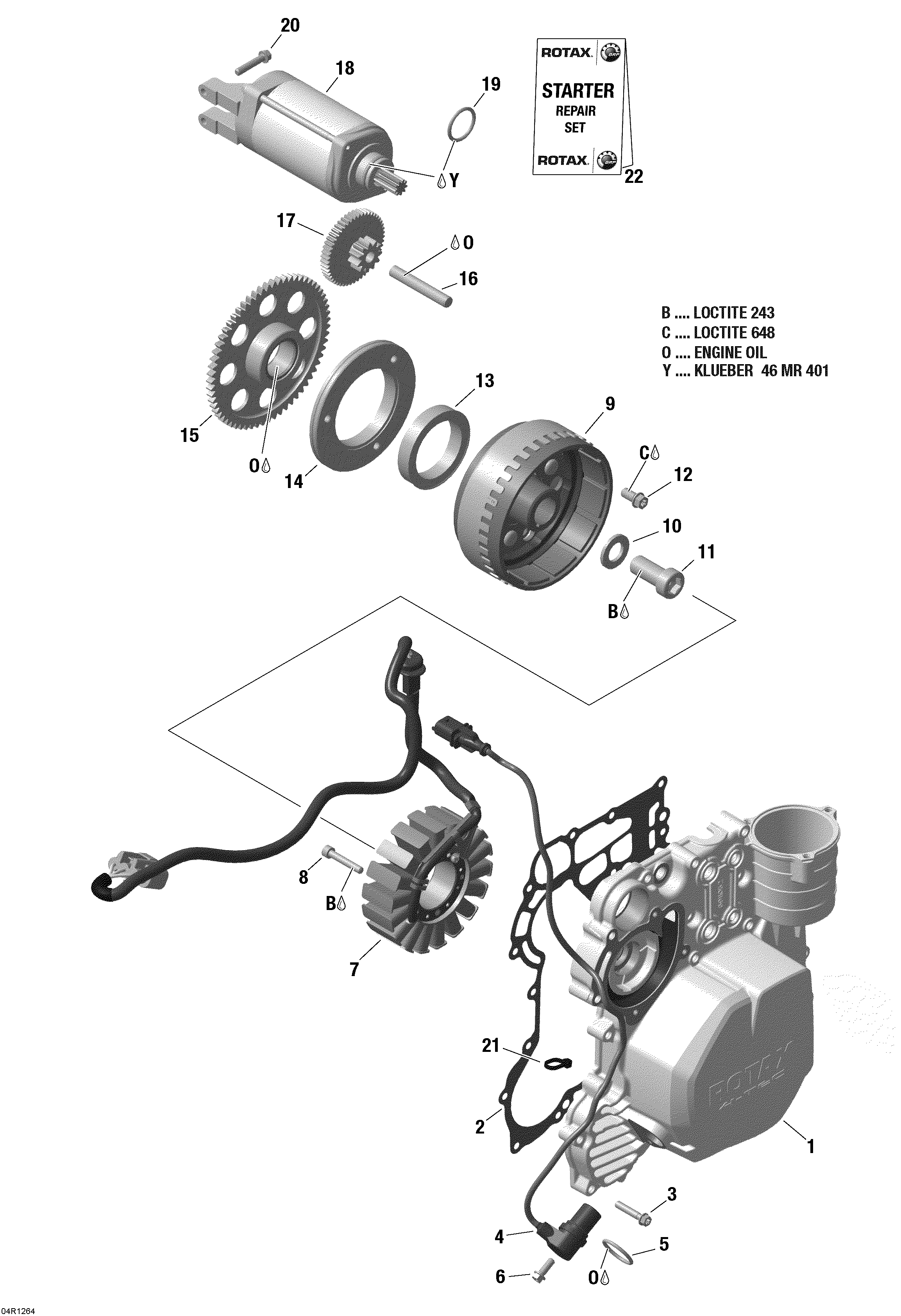

03- Magneto And Electric Starter для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1420911052 IGNITION COVERIGNITION COVER
-
2420431640 GASKET. INCLUDED IN GASKET KITGASKET. INCLUDED IN GASKET KIT
-
3420440647 HEX./TORX-FLANGE SCREW M6X30-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%HEX./TORX-FLANGE SCREW M6X30-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%
-
4-5420966570 CRANKSHAFT POSITION SENSORCRANKSHAFT POSITION SENSOR
-
5420431580 O-RING 17,17X1,78 FPM 70. INCLUDED IN GASKET KITO-RING 17,17X1,78 FPM 70. INCLUDED IN GASKET KIT
-
6420440162 HEX./TORX-FLANGE SCREW M6X16-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%HEX./TORX-FLANGE SCREW M6X16-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%
-
7420685635 STATOR ASSY. 14V 650WSTATOR ASSY. 14V 650W
-
8420241956 ALLEN SCREW M6X40 ISO 4762-8.8 MC. TIGHTENING TORQUE 11NM +/- 12%ALLEN SCREW M6X40 ISO 4762-8.8 MC. TIGHTENING TORQUE 11NM +/- 12%
-
9420686190 MAG. FLYWHEEL WITH TRIGGER WHEEL ASSYMAG. FLYWHEEL WITH TRIGGER WHEEL ASSY
-
10420627270 SHIM A17 DIN 125SHIM A17 DIN 125
-
11420241549 ALLEN SCREW M16X35 DIN 6912 MK. TIGHTENING TORQUE 150NM +/- 7%ALLEN SCREW M16X35 DIN 6912 MK. TIGHTENING TORQUE 150NM +/- 7%
-
12420440854 HEX./TORX-FLANGE SCREW M8X16. TIGHTENING TORQUE 30NM +/- 12%HEX./TORX-FLANGE SCREW M8X16. TIGHTENING TORQUE 30NM +/- 12%
-
13420659113 SPRAG CLUTCH 51,710x68,377x13SPRAG CLUTCH 51,710x68,377x13
-
14420659261 SPRAG CLUTCH HOUSINGSPRAG CLUTCH HOUSING
-
15420434237 FREE WHEEL GEAR 64 T ASSY.FREE WHEEL GEAR 64 T ASSY.
-
16420229475 NEEDLE PIN ISO 8734-10X65-B-STNEEDLE PIN ISO 8734-10X65-B-ST
-
17420634741 STARTER DOUBLE GEAR 11/49 T.STARTER DOUBLE GEAR 11/49 T.
-
18-19420892423 ELECTRIC STARTER ASSY.ELECTRIC STARTER ASSY.
-
19420250140 O-RING DIN 3771-24,4X3,1-N NBR70. INCLUDED IN GASKET KITO-RING DIN 3771-24,4X3,1-N NBR70. INCLUDED IN GASKET KIT
-
20420440647 HEX./TORX-FLANGE SCREW M6X30-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%HEX./TORX-FLANGE SCREW M6X30-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%
-
21420866714 TIE RAP 142x3,2 MMTIE RAP 142x3,2 MM
-
22420881140 REPAIR KIT (ELECTRIC STARTER)REPAIR KIT (ELECTRIC STARTER)
-
B293800060 LOCTITE 243 GREENLOCTITE 243 GREEN
-
C413711400 LOCTITE 648 BLUELOCTITE 648 BLUE
-
O293600112 ENGINE OILENGINE OIL
-
Y420297616 GREASE KLUEBER 46 MR 401GREASE KLUEBER 46 MR 401
