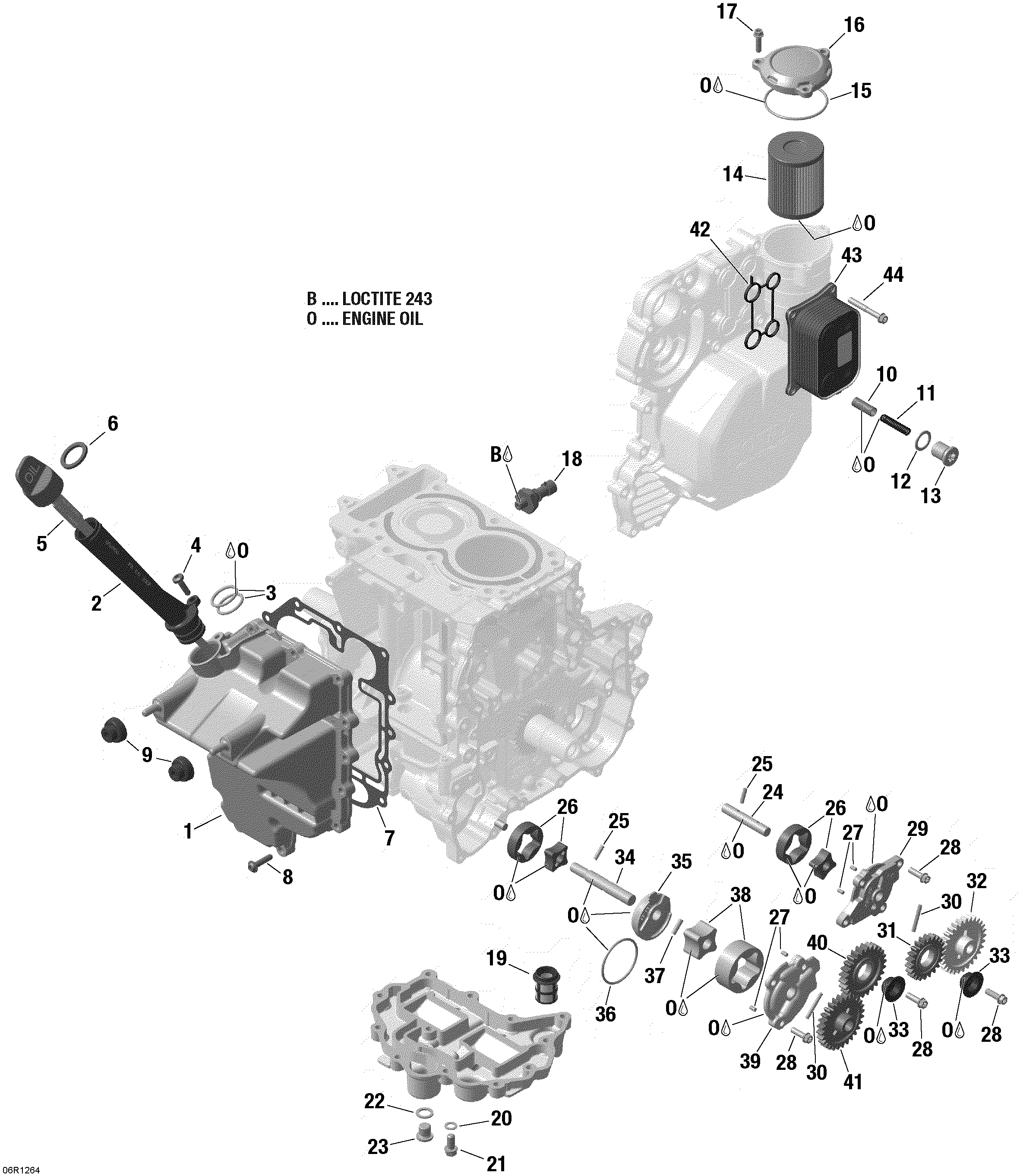

02- Engine Lubrication для BRP Lynx 49 Ranger 600 ACE - 2012
-
№АртикулНазвание
-
1420956210 OIL SUMP COVEROIL SUMP COVER
-
2420656900 OIL FILLER TUBEOIL FILLER TUBE
-
3420430440 O-RING DIN 3771-25X3-N, FPM 75. INCLUDED IN GASKET KITO-RING DIN 3771-25X3-N, FPM 75. INCLUDED IN GASKET KIT
-
4420441381 TORX-TR-SCREW 6X20. TIGHTENING TORQUE 10NM +/- 12%TORX-TR-SCREW 6X20. TIGHTENING TORQUE 10NM +/- 12%
-
5-6420856665 OIL DIPSTICKOIL DIPSTICK
-
6420431790 GASKET RING 23/31,9/3. INCLUDED IN GASKET KITGASKET RING 23/31,9/3. INCLUDED IN GASKET KIT
-
7420431770 GASKET. INCLUDED IN GASKET KITGASKET. INCLUDED IN GASKET KIT
-
8420841546 TORX-TR-SCREW 6X25. TIGHTENING TORQUE 14NM +/- 12%. RETRY TORQUE 11NM +/- 12%TORX-TR-SCREW 6X25. TIGHTENING TORQUE 14NM +/- 12%. RETRY TORQUE 11NM +/- 12%
-
9420860150 RUBBER GROMMETRUBBER GROMMET
-
10420256517 PRESSURE REGULATING PISTONPRESSURE REGULATING PISTON
-
11420239445 SPRING DM6,95 D1,15 L46SPRING DM6,95 D1,15 L46
-
12420430622 SEALING RING A 16X22 DIN 7603. INCLUDED IN GASKET KITSEALING RING A 16X22 DIN 7603. INCLUDED IN GASKET KIT
-
13420441372 PLUG SCREW M16X1,5. TIGHTENING TORQUE 30NM +/- 12%PLUG SCREW M16X1,5. TIGHTENING TORQUE 30NM +/- 12%
-
14420956123 OIL FILTEROIL FILTER
-
15420650500 O-RING DIN 3771-59,52X2,62-N, NBR 70. INCLUDED IN GASKET KITO-RING DIN 3771-59,52X2,62-N, NBR 70. INCLUDED IN GASKET KIT
-
16420210418 OIL FILTER COVEROIL FILTER COVER
-
17420440207 HEX./TORX-FLANGE SCREW M6X20-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%HEX./TORX-FLANGE SCREW M6X20-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%
-
18420256915 OIL PRESSURE SWITCH M10X1. TIGHTENING TORQUE 12NM +/- 12%OIL PRESSURE SWITCH M10X1. TIGHTENING TORQUE 12NM +/- 12%
-
19420656680 OIL SIEVEOIL SIEVE
-
20420950141 SEALING RING A 8X13 DIN 7603. INCLUDED IN GASKET KITSEALING RING A 8X13 DIN 7603. INCLUDED IN GASKET KIT
-
21420440852 HEX./TORX-FLANGE SCREW M8X16-SW10/T40. TIGHTENING TORQUE 20NM +/- 12%HEX./TORX-FLANGE SCREW M8X16-SW10/T40. TIGHTENING TORQUE 20NM +/- 12%
-
22420250640 SEALING RING A 12X18-CU DIN 7603. INCLUDED IN GASKET KITSEALING RING A 12X18-CU DIN 7603. INCLUDED IN GASKET KIT
-
23420241700 PLUG SCREW A M12X1,5. TIGHTENING TORQUE 20NM +/- 12%PLUG SCREW A M12X1,5. TIGHTENING TORQUE 20NM +/- 12%
-
24420820120 OIL PUMP SHAFTOIL PUMP SHAFT
-
25420232730 NEEDLE PIN 4X15,8 G3 DIN 5402NEEDLE PIN 4X15,8 G3 DIN 5402
-
26420256347 ROTOR SETROTOR SET
-
27420929075 NEEDLE PIN ISO 8734-4X8-A-STNEEDLE PIN ISO 8734-4X8-A-ST
-
28420440207 HEX./TORX-FLANGE SCREW M6X20-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%HEX./TORX-FLANGE SCREW M6X20-SW8/T30. TIGHTENING TORQUE 11NM +/- 12%
-
29420911080 OIL PUMP COVEROIL PUMP COVER
-
30420232430 NEEDLE PIN B 4X29,8 G5 DIN 5402NEEDLE PIN B 4X29,8 G5 DIN 5402
-
31420835054 INTERMEDIATE GEAR 22 TINTERMEDIATE GEAR 22 T
-
32420834882 OIL PUMP GEAR 29TOIL PUMP GEAR 29T
-
33420947390 GRADUATED SPACERGRADUATED SPACER
-
34420837916 OIL PUMP SHAFTOIL PUMP SHAFT
-
35420611950 OIL PUMP COVEROIL PUMP COVER
-
36420631830 O-RING DIN 3771-46X2,5-N, 72 NBR 872. INCLUDED IN GASKET KITO-RING DIN 3771-46X2,5-N, 72 NBR 872. INCLUDED IN GASKET KIT
-
37420632220 NEEDLE PINNEEDLE PIN
-
38420256836 ROTOR SETROTOR SET
-
39420611980 OIL PUMP COVEROIL PUMP COVER
-
40420835320 INTERMEDIATE GEAR 26 TINTERMEDIATE GEAR 26 T
-
41420834885 OIL PUMP GEAR 28TOIL PUMP GEAR 28T
-
42420431870 GASKET. INCLUDED IN GASKET KITGASKET. INCLUDED IN GASKET KIT
-
43420656692 OIL-WATER-HEAT EXCHANGER. TIGHTENING TORQUE 11NM +/- 12%OIL-WATER-HEAT EXCHANGER. TIGHTENING TORQUE 11NM +/- 12%
-
44420440324 HEX./TORX-FLANGE SCREW M6X45-SW8/T30HEX./TORX-FLANGE SCREW M6X45-SW8/T30
-
B293800060 LOCTITE 243, 10mlLOCTITE 243, 10ml
-
O293600112 ENGINE OILENGINE OIL
