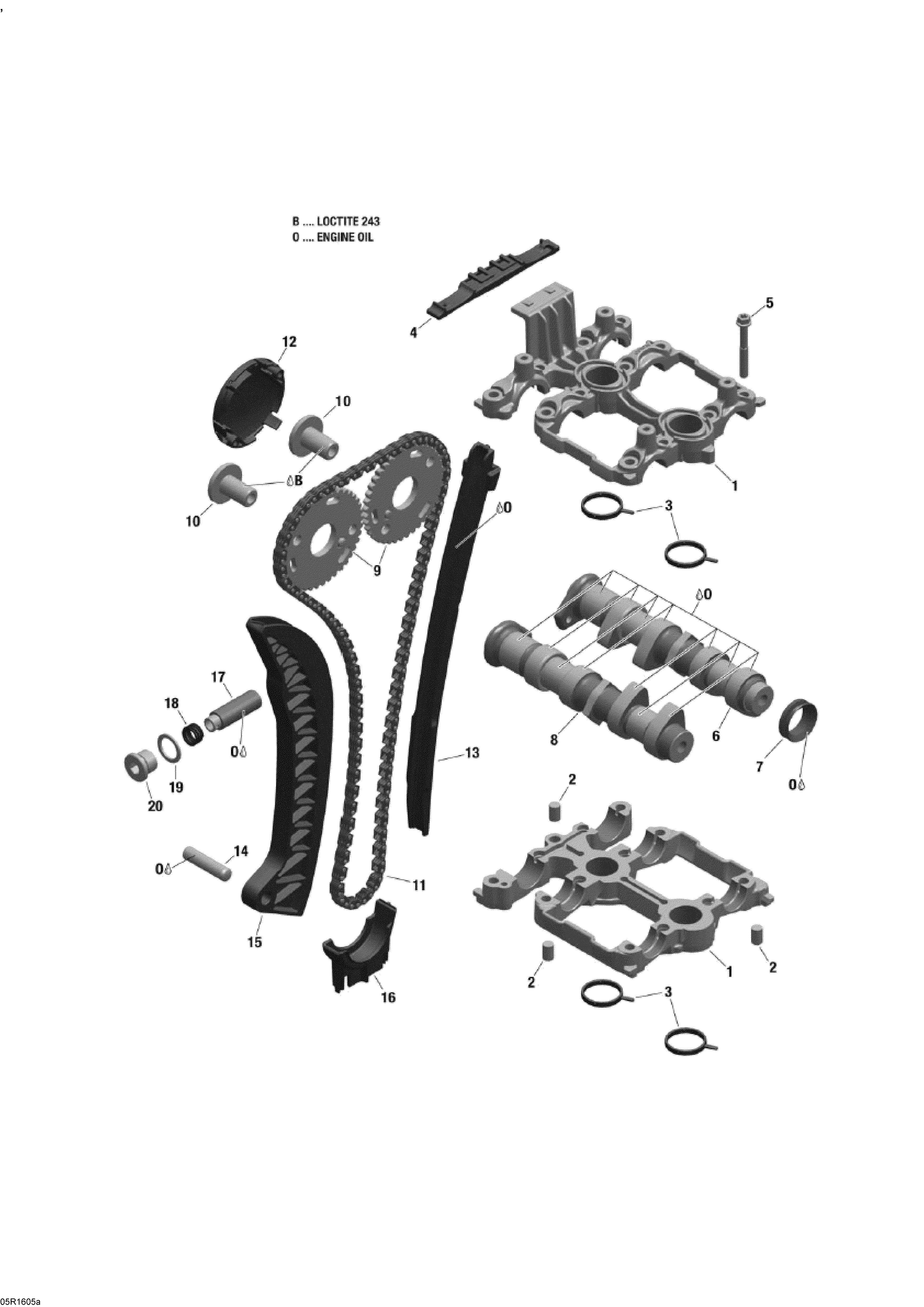

01- Camshafts And Timing Chain - 600 ACE для BRP Lynx 49 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1420911035 Camshaft Housing Ass'y. Includes 1 To 2Camshaft Housing Ass'y. Includes 1 To 2
-
2420632010 Pin 8 x 12Pin 8 x 12
-
3420431760 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
4420936500 Chain Guide, UpperChain Guide, Upper
-
5420440324 Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%
-
6420820112 Camshaft ExhaustCamshaft Exhaust
-
7420630127 V-Ring. Included In Gasket KitV-Ring. Included In Gasket Kit
-
8420820102 Camshaft IntakeCamshaft Intake
-
9420855120 Camshaft Sprocket 40 TCamshaft Sprocket 40 T
-
10420441360 Flat Head Screw M14 x 1,5. Tightening Torque 50 Nm +/- 7%Flat Head Screw M14 x 1,5. Tightening Torque 50 Nm +/- 7%
-
11420297086 Camshaft ChainCamshaft Chain
-
12420460920 CoverCover
-
13420936010 Chain GuideChain Guide
-
14420929937 Needle PinNeedle Pin
-
15420936020 Chain Tension GuideChain Tension Guide
-
16420936510 Chain GuideChain Guide
-
17420236256 Chain Tensioner Ass' yChain Tensioner Ass' y
-
18420238732 Compression SpringCompression Spring
-
19420430622 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
20420840591 Plug Screw M16 x 1,5. Tightening Torque 17 Nm +/- 12%Plug Screw M16 x 1,5. Tightening Torque 17 Nm +/- 12%
