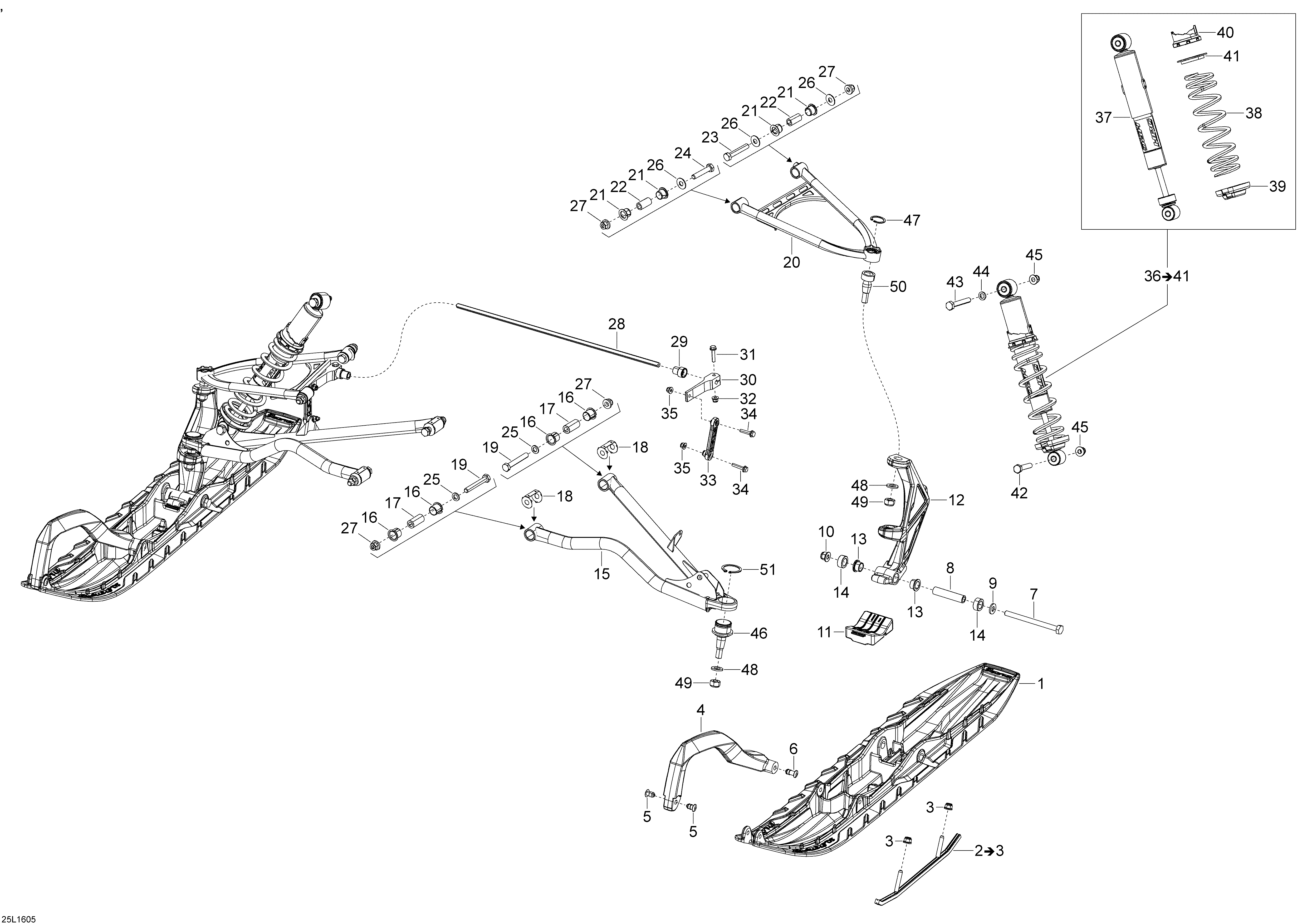

07- Front Suspension And Ski для BRP Lynx 49 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1505073834 Black Blade DS SkiBlack Blade DS Ski
-
2860201044 Ski Runner Kit. Includes 2 To 3Ski Runner Kit. Includes 2 To 3
-
3233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
4505073651 Orange HandleOrange Handle
-
5505071812 RetainerRetainer
-
6505072133 RetainerRetainer
-
7230003044 Hex. Cap Screw M10 x 130Hex. Cap Screw M10 x 130
-
8506133300 Ski AxleSki Axle
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505072594 Rubber DamperRubber Damper
-
12505073557 LH Ski LegLH Ski Leg
-
12505073558 RH Ski LegRH Ski Leg
-
13505072690 BushingBushing
-
14505072807 SpacerSpacer
-
15505073225 Black RH Lower Arm. Model-stdBlack RH Lower Arm. Model-std
-
15505073577 Black RH Lower Arm. Model-Touring KitBlack RH Lower Arm. Model-Touring Kit
-
15505073226 Black LH Lower Arm. Model-stdBlack LH Lower Arm. Model-std
-
15505073578 Black LH Lower Arm. Model-Touring KitBlack LH Lower Arm. Model-Touring Kit
-
16505073330 CushionCushion
-
17505072209 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
20505073466 Black LH Upper Arm. Model-stdBlack LH Upper Arm. Model-std
-
20505073468 Black LH Upper Arm. Model-Touring KitBlack LH Upper Arm. Model-Touring Kit
-
20505073467 Black RH Upper Arm. Model-stdBlack RH Upper Arm. Model-std
-
20505073469 Black RH Upper Arm. Model-Touring KitBlack RH Upper Arm. Model-Touring Kit
-
21505073329 BushingBushing
-
22505072143 BushingBushing
-
23250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
24250000289 Hex. Cap Screw M10 X 50Hex. Cap Screw M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100165 Nut M10Nut M10
-
28505073609 Stabilisator. Model-stdStabilisator. Model-std
-
28505072602 Stabilisator. Model-Touring KitStabilisator. Model-Touring Kit
-
29505072786 Bushing. Model-stdBushing. Model-std
-
29505072064 Bushing. Model-Touring KitBushing. Model-Touring Kit
-
30505073176 Stabilisator Lever. Model-stdStabilisator Lever. Model-std
-
30505072394 Stabilisator Lever. Model-Touring KitStabilisator Lever. Model-Touring Kit
-
31207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
32233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
33505073172 Double Ball Joint Link. Model-stdDouble Ball Joint Link. Model-std
-
33505072204 Double Ball Joint Link. Model-Touring KitDouble Ball Joint Link. Model-Touring Kit
-
34207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
35233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
37505073344 Shock. Model-stdShock. Model-std
-
37505073342 Shock. Model-Touring KitShock. Model-Touring Kit
-
38503192286 Spring (300mm - 14N/mm). Model-stdSpring (300mm - 14N/mm). Model-std
-
38505072882 Spring (300mm - 16N/mm). Model-Touring KitSpring (300mm - 16N/mm). Model-Touring Kit
-
39706200881 Spring StopperSpring Stopper
-
40505073625 Adjuster CamAdjuster Cam
-
41503191872 Spring GuideSpring Guide
-
42207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
43207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
44503189564 WasherWasher
-
45233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
46505073636 Ball JointBall Joint
-
47293370070 CirclipCirclip
-
48234021410 Flat WasherFlat Washer
-
49250100089 Nut M12Nut M12
-
50505072913 Ball JointBall Joint
-
51293370035 CirclipCirclip
