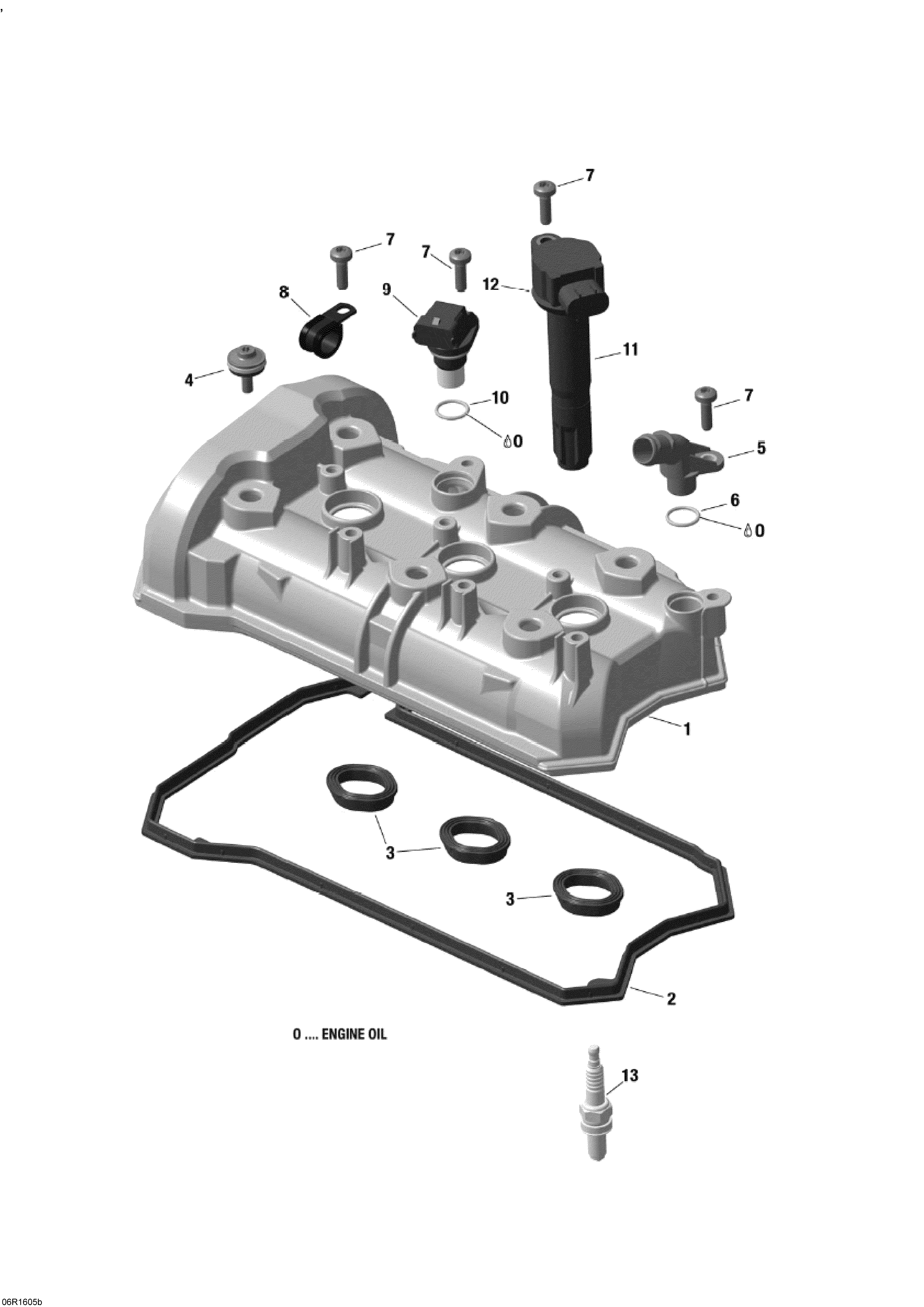

01- Valve Cover - 900 ACE для BRP Lynx 49 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1420911492 Valve CoverValve Cover
-
2420431801 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420431751 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
4420440495 Torx Distance Screw Ass'y M6. Tightening Torque 9 Nm +/- 12%Torx Distance Screw Ass'y M6. Tightening Torque 9 Nm +/- 12%
-
5420611240 Blow By ConnectorBlow By Connector
-
6420631240 O Ring. Included In Gasket KitO Ring. Included In Gasket Kit
-
7420441386 Torx GF Screw M6 x 20. Tightening Torque 9 Nm +/- 12%Torx GF Screw M6 x 20. Tightening Torque 9 Nm +/- 12%
-
8420851492 Cable ClampCable Clamp
-
9420664045 Camshaft Sensor. Includes 9 To 10Camshaft Sensor. Includes 9 To 10
-
10420631890 O Ring. Includes In Gasket KitO Ring. Includes In Gasket Kit
-
11420666141 Stick Coil. Includes 11 To 12Stick Coil. Includes 11 To 12
-
12420201430 Protection CapProtection Cap
-
13415129944 Spark Plug (MR8BI-8). Tightening Torque 13 Nm +/- 12%Spark Plug (MR8BI-8). Tightening Torque 13 Nm +/- 12%
