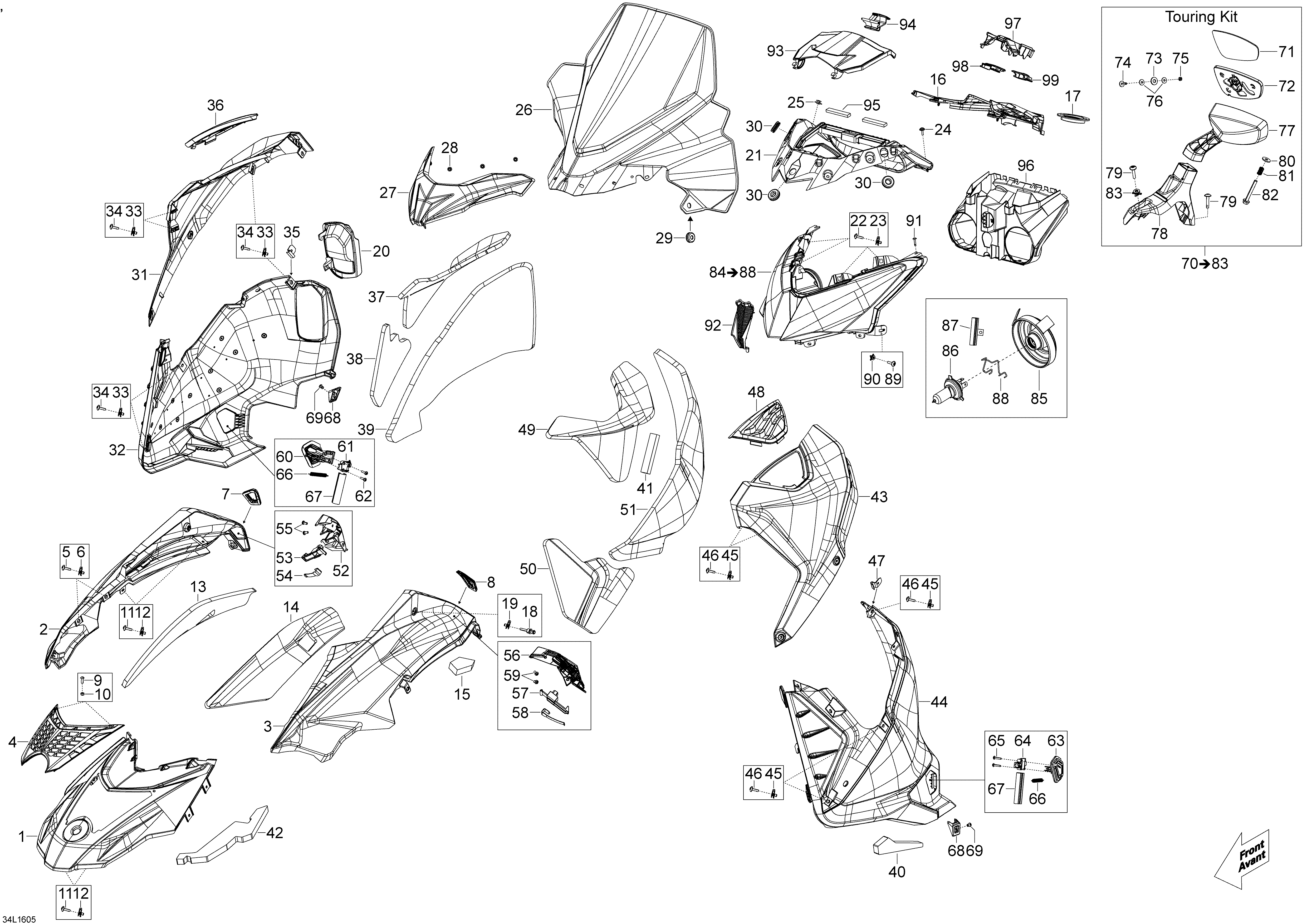

09- Hood And Windshield для BRP Lynx 49 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1517305571 White HoodWhite Hood
-
2517305416 White RH HoodWhite RH Hood
-
3517305417 White LH HoodWhite LH Hood
-
4517305362 Hood GrillHood Grill
-
5250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
6250000079 Panel Nut M5Panel Nut M5
-
7517305344 RH Rubber ButtonRH Rubber Button
-
8517305345 LH Rubber ButtonLH Rubber Button
-
9235551494 Button HD Torx Screw M5 x 14Button HD Torx Screw M5 x 14
-
10233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
11250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
12250000079 Panel Nut M5Panel Nut M5
-
13517305481 FoamFoam
-
14517305482 FoamFoam
-
15517305824 FoamFoam
-
16517305205 Console RearConsole Rear
-
17517304518 Console NutConsole Nut
-
18517305531 KnobKnob
-
19250000079 Panel Nut M5Panel Nut M5
-
20517305061 Black RH ConsoleBlack RH Console
-
21517305511 Indicator Support. Model-stdIndicator Support. Model-std
-
21517305943 Indicator Support. Model-Touring KitIndicator Support. Model-Touring Kit
-
22250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
23250000079 Panel Nut M5Panel Nut M5
-
24250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
25250100035 Jack Nut M5. Model-Touring KitJack Nut M5. Model-Touring Kit
-
26860201115 Windshield (635) Ass'yWindshield (635) Ass'y
-
27517305307 SupportSupport
-
28732610072 Push NutPush Nut
-
29517302841 GrommetGrommet
-
30517306015 GrommetGrommet
-
31517305425 White RH PanelWhite RH Panel
-
32517305249 Black RH PanelBlack RH Panel
-
33250000079 Panel Nut M5Panel Nut M5
-
34250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
35517305515 Guide PlateGuide Plate
-
36517305251 GrillGrill
-
37517305484 FoamFoam
-
38517305485 FoamFoam
-
39517305486 FoamFoam
-
40517305813 FoamFoam
-
41517305814 FoamFoam
-
42517305815 FoamFoam
-
43517305426 White LH PanelWhite LH Panel
-
44517305253 Black LH PanelBlack LH Panel
-
45250000079 Panel Nut M5Panel Nut M5
-
46250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
47517305515 Guide PlateGuide Plate
-
48517305254 GrillGrill
-
49517305488 FoamFoam
-
50517305489 FoamFoam
-
51517305490 FoamFoam
-
52517305315 RH Lock BodyRH Lock Body
-
53517306019 Lock ArmLock Arm
-
54517305317 Lock SpringLock Spring
-
55205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
56517305319 LH Lock BodyLH Lock Body
-
57517306019 Lock ArmLock Arm
-
58517305317 Lock SpringLock Spring
-
59205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
60517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
61517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
62250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
63517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
64517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
65250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
66517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
67517305452 Bottom Lock SleeveBottom Lock Sleeve
-
68517305323 Side Panel SupportSide Panel Support
-
69390909100 RivetRivet
-
70860201156 Mirror Kit. Includes 70 To 83, Model-Touring KitMirror Kit. Includes 70 To 83, Model-Touring Kit
-
73250200024 Rubber WasherRubber Washer
-
79250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
80234062410 Flat WasherFlat Washer
-
81279000329 SpringSpring
-
82207665044 Hex. Flange Screw M6 x 50Hex. Flange Screw M6 x 50
-
83250100035 Jack Nut M5Jack Nut M5
-
84517305762 Headlamp. Includes 84 To 88Headlamp. Includes 84 To 88
-
85219400070 CapCap
-
86515176274 H4 Halogen Bulb (60/55W, 12V)H4 Halogen Bulb (60/55W, 12V)
-
87219800282 Bulb HolderBulb Holder
-
88219800281 SpringSpring
-
89250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
90250100035 Jack Nut M5Jack Nut M5
-
91250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
92517305350 CapCap
-
93517304912 CoverCover
-
94517304917 LatchLatch
-
95517305157 SealSeal
-
96517305095 TrunkTrunk
-
97517304970 SupportSupport
-
98517305180 CapCap
-
99517305148 CapCap
