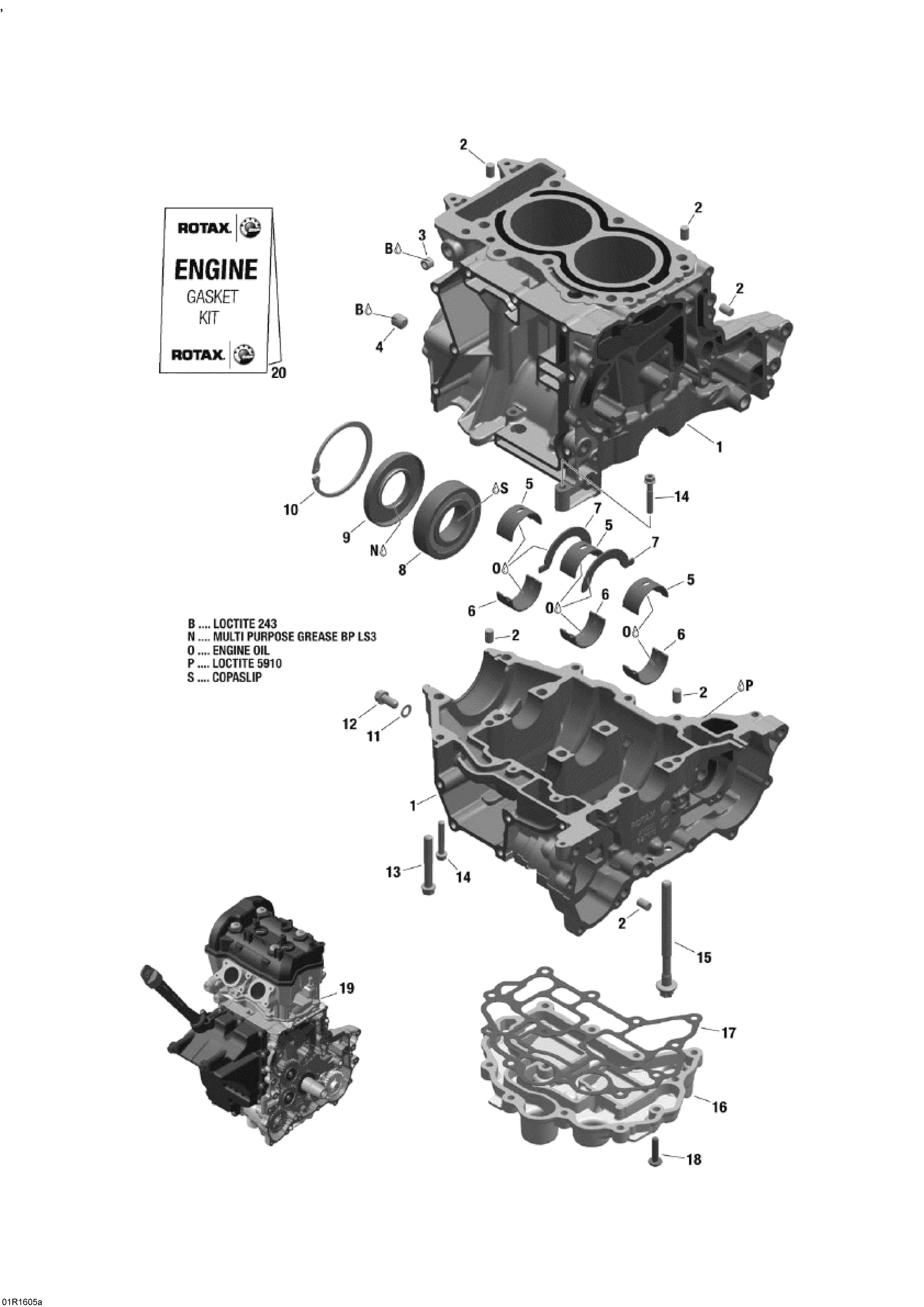

01- Engine Block - 600 ACE для BRP Lynx 49 Ranger (4-Stroke) - 2016

№

Артикул

Название
1

420892853 Engine Block Ass'y. Includes 1 To 6

Engine Block Ass'y. Includes 1 To 6

153 990 ₽
2

420632010 Pin 8 x 12

Pin 8 x 12

1 450 ₽
3

420641323 Plug Screw M10 x 1. Tightening Torque 12 Nm +/- 12%

Plug Screw M10 x 1. Tightening Torque 12 Nm +/- 12%

1 280 ₽
4

420840500 Threaded Pin M12 x 1,5. Tightening Torque 9 Nm +/- 12%

Threaded Pin M12 x 1,5. Tightening Torque 9 Nm +/- 12%

590 ₽
5

420933180 Plain Bearing Half

Plain Bearing Half

2 580 ₽
6

420933185 Plain Bearing Half

Plain Bearing Half

2 950 ₽
7

420933140 Ring Half

Ring Half

3 780 ₽
8

420832232 B. Bearing

B. Bearing

1 090 ₽
9

420431402 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

10 030 ₽
10

420845790 Retaining Ring

Retaining Ring

690 ₽
11

420950141 Sealing Ring. Included In Gasket Kit

Sealing Ring. Included In Gasket Kit

790 ₽
12

420440852 Hex./Torx Flange Screw M8 x 16. Tightening Torque 10 Nm +/- 12%

Hex./Torx Flange Screw M8 x 16. Tightening Torque 10 Nm +/- 12%

1 450 ₽
13

420641213 Hex./Torx Flange Screw M8 x 55. Tightening Torque 23 Nm +/- 12%

Hex./Torx Flange Screw M8 x 55. Tightening Torque 23 Nm +/- 12%

2 610 ₽
14

420440274 Hex./Torx Flange Screw M6 x 35. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 35. Tightening Torque 9 Nm +/- 12%

100 ₽
15

420940945 Torx Screw M9 x 113. Tightening Torque 20 Nm +/- 12%, +150° +/- 5°

Torx Screw M9 x 113. Tightening Torque 20 Nm +/- 12%, +150° +/- 5°

4 240 ₽
16

420911122 Oil Sump

Oil Sump

8 110 ₽
17

420431630 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

2 400 ₽
18

420841549 Torx TR Screw M6 x 25. Tightening Torque 9 Nm +/- 12%. RETRY TORQUE 11 NM +/- 12%

Torx TR Screw M6 x 25. Tightening Torque 9 Nm +/- 12%. RETRY TORQUE 11 NM +/- 12%

200 ₽
19

300060202 Long Block 602 ACE

Long Block 602 ACE

369 270 ₽
20

420686022 Engine Gasket Kit

Engine Gasket Kit

26 570 ₽
