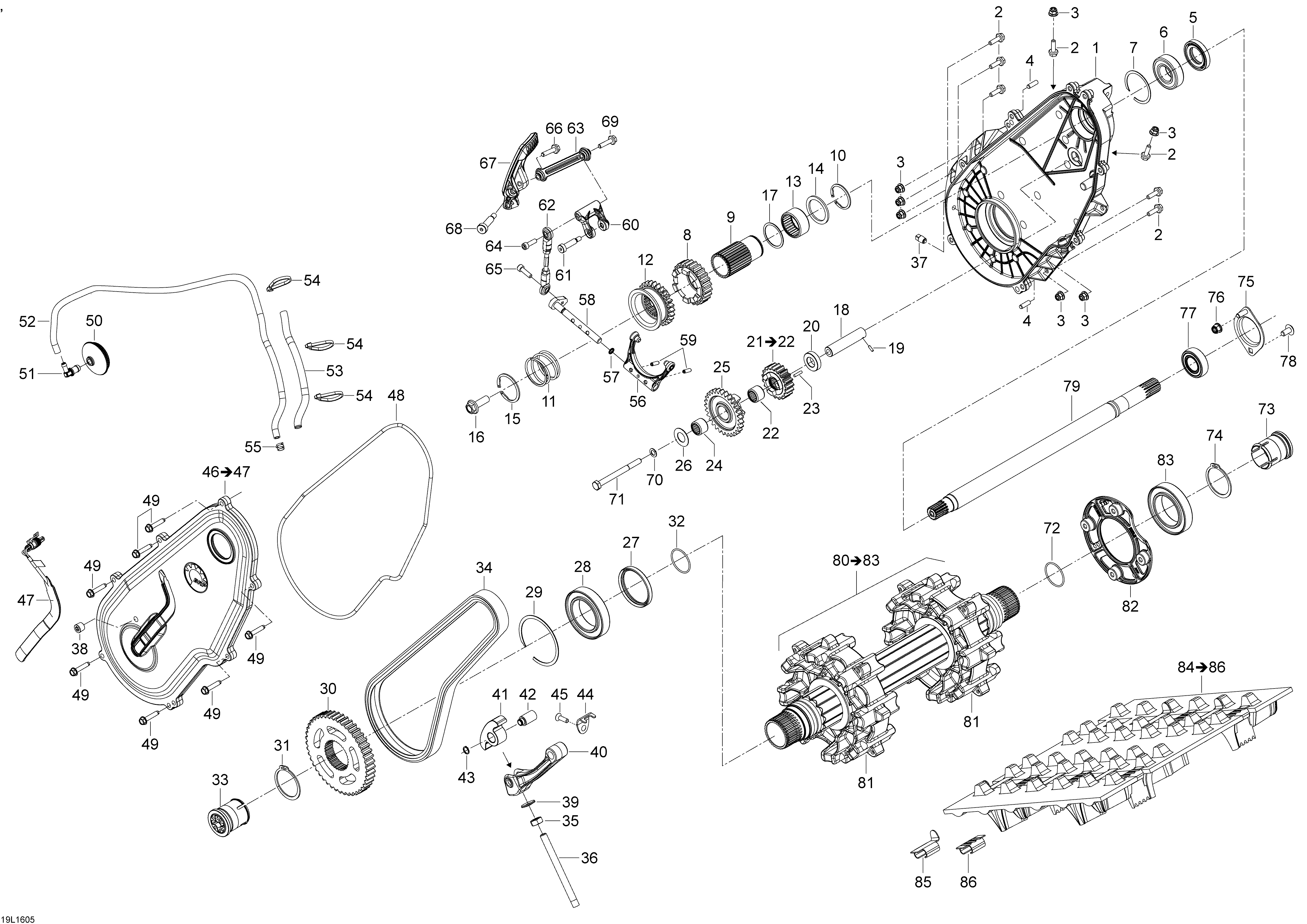

05- Drive System для BRP Lynx 49 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1504153407 ChaincaseChaincase
-
2207662034 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
3233261434 Elastic Flange Nut M6Elastic Flange Nut M6
-
4250400048 Dowel PinDowel Pin
-
5293250175 Oil SealOil Seal
-
6293350055 Ball BearingBall Bearing
-
7504152576 CirclipCirclip
-
8504152927 Sprocket (21 T). Model-600 ACESprocket (21 T). Model-600 ACE
-
8504152961 Sprocket (24 T). Model-900 ACESprocket (24 T). Model-900 ACE
-
9504152979 CouplingCoupling
-
10293370054 CirclipCirclip
-
11504153179 Release SpringRelease Spring
-
12504152960 Sliding Gear (27 T)Sliding Gear (27 T)
-
13293350063 Needle BearingNeedle Bearing
-
14504152689 WasherWasher
-
15293370055 CirclipCirclip
-
16207503046 Hex. Flange Screw M10 x 30Hex. Flange Screw M10 x 30
-
17504152862 WasherWasher
-
18504083100 Reverse ShaftReverse Shaft
-
19250400010 Rolled Pin M3 x 10Rolled Pin M3 x 10
-
20504078700 RingRing
-
21581096900 Sprocket Ass'y (19 T). Includes 21 To 22Sprocket Ass'y (19 T). Includes 21 To 22
-
22293350064 Needle BearingNeedle Bearing
-
23570048600 Alignement RodAlignement Rod
-
24293350064 Needle BearingNeedle Bearing
-
25504152724 Sprocket (29 T)Sprocket (29 T)
-
26504077300 SpacerSpacer
-
27504152571 SealSeal
-
28293350059 Ball BearingBall Bearing
-
29504152582 CirclipCirclip
-
30504152971 Sprocket (51 T)Sprocket (51 T)
-
31504152572 CirclipCirclip
-
32293300122 O RingO Ring
-
33504152619 Magnetic CapMagnetic Cap
-
34504152630 Drive Chain (106 Links). Model-600 ACEDrive Chain (106 Links). Model-600 ACE
-
34504152631 Drive Chain (108 Links). Model-900 ACEDrive Chain (108 Links). Model-900 ACE
-
35232006414 Hex. Nut M10Hex. Nut M10
-
36504152602 Adjustment ScrewAdjustment Screw
-
37504152854 Magnetic PlugMagnetic Plug
-
38250500012 Allen Drive PlugAllen Drive Plug
-
39293200128 Bonded WasherBonded Washer
-
40504152748 Chain TensionerChain Tensioner
-
41504152739 Slider ChainSlider Chain
-
42504152841 Tensioner AxleTensioner Axle
-
43504152282 CirclipCirclip
-
44504153122 Chain SliderChain Slider
-
45205862044 Socket Head Screw M6 x 20, Scotch GripSocket Head Screw M6 x 20, Scotch Grip
-
46504153412 Chaincase Cover Ass'y. Includes 46 To 47Chaincase Cover Ass'y. Includes 46 To 47
-
47504152896 SensorSensor
-
48293300130 O RingO Ring
-
49210263080 Forming Screw M6 x 30Forming Screw M6 x 30
-
50504152930 CapCap
-
51293710035 Straight FittingStraight Fitting
-
52415080200 HoseHose
-
53504153074 Protector TubeProtector Tube
-
54414115200 Tie Rap 188mmTie Rap 188mm
-
55414554800 Spring ClampSpring Clamp
-
56504152954 Fork Ass'yFork Ass'y
-
57414484400 O RingO Ring
-
58504152956 Welded Axel ForkWelded Axel Fork
-
59250400045 Spring Pin M5 x 16Spring Pin M5 x 16
-
60504152788 LeverLever
-
61250000340 Socket HD Screw M8 x 25Socket HD Screw M8 x 25
-
62504152951 Ball JointBall Joint
-
63504152710 Double Ball JointDouble Ball Joint
-
64205562044 Socket HD Screw M6 x 20, Scotch GripSocket HD Screw M6 x 20, Scotch Grip
-
65205562044 Socket HD Screw M6 x 20, Scotch GripSocket HD Screw M6 x 20, Scotch Grip
-
66207562544 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
67504153174 GripGrip
-
68250000340 Socket HD Screw M8 x 25Socket HD Screw M8 x 25
-
69207562544 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
70504082900 WasherWasher
-
71207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
72293300122 O RingO Ring
-
73504152619 Magnetic CapMagnetic Cap
-
74504152572 CirclipCirclip
-
75504153187 Bearing HousingBearing Housing
-
76233281414 Hex. Flange Elastic Nut M8Hex. Flange Elastic Nut M8
-
77293350074 Ball BearingBall Bearing
-
78235381646 Torx HD Screw M8 x 16Torx HD Screw M8 x 16
-
79504153000 CountershaftCountershaft
-
80504153257 Drive Axle Ass'y. Includes 80 To 83, Model-600 ACEDrive Axle Ass'y. Includes 80 To 83, Model-600 ACE
-
80504153252 Drive Axle Ass'y. Includes 80 To 83, Model-900 ACEDrive Axle Ass'y. Includes 80 To 83, Model-900 ACE
-
81504153087 LH Spocket (7 T). Model-600 ACELH Spocket (7 T). Model-600 ACE
-
81504153088 RH Spocket (7 T). Model-600 ACERH Spocket (7 T). Model-600 ACE
-
82504152949 Housing BearingHousing Bearing
-
83293350059 Ball BearingBall Bearing
-
84504153276 Track Ass'y (406 x 4141 x 39). Includes 84 To 86Track Ass'y (406 x 4141 x 39). Includes 84 To 86
-
85415129528 GuideGuide
-
86504152651 CleatCleat
