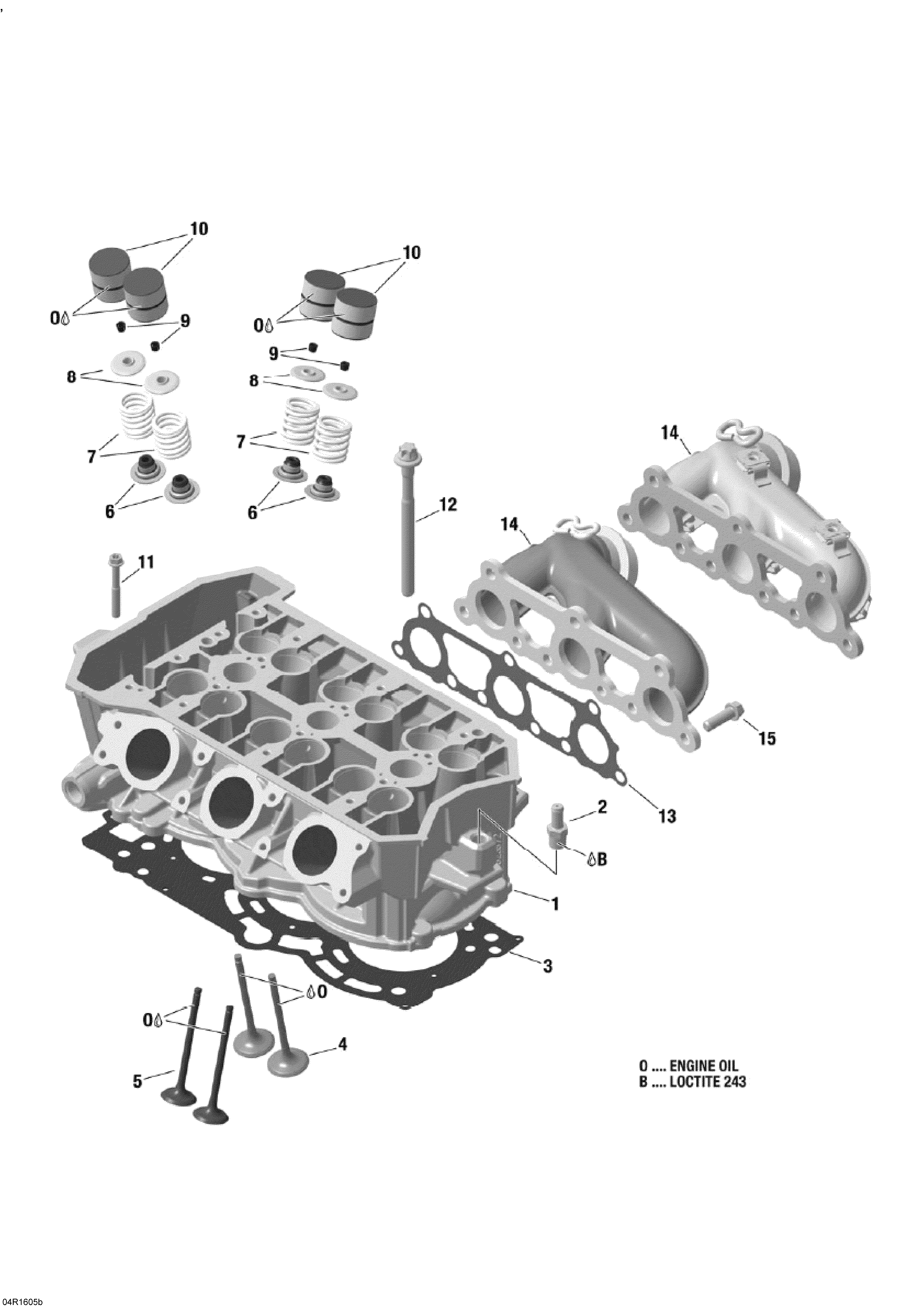

01- Cylinder Head And Exhaust Manifold - 900 ACE для BRP Lynx 49 Ranger (4-Stroke) - 2016

№

Артикул

Название
1

420623878 Cylinderhead Ass'y

Cylinderhead Ass'y

85 790 ₽
2

420441420 Hose Nipple M12 x 1,5. Tightening Torque 15 Nm +/- 12%

Hose Nipple M12 x 1,5. Tightening Torque 15 Nm +/- 12%

1 180 ₽
3

420431812 Cylinder Head Gasket. Included In Gasket Kit

Cylinder Head Gasket. Included In Gasket Kit

3 140 ₽
4

420855130 Intake Valve (29mm)

Intake Valve (29mm)

1 900 ₽
5

420855140 Exhaust Valve (25mm)

Exhaust Valve (25mm)

3 130 ₽
6

420431671 Valve Stem Seal. Included In Gasket Kit

Valve Stem Seal. Included In Gasket Kit

1 890 ₽
7

420939540 Valve Spring

Valve Spring

2 650 ₽
8

420855150 Valve Spring Retainer

Valve Spring Retainer

1 540 ₽
9

420254630 Valve Cotter

Valve Cotter

360 ₽
10

420855164 Valve Lifter Bucket

Valve Lifter Bucket

2 820 ₽
11

420440324 Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%

360 ₽
12

420940945 Torx Screw M9 x 113. Tightening Torque 20 Nm +/- 12%, +120? +/- 5?. +120°+/- 5° ROTATION ANGLE

Torx Screw M9 x 113. Tightening Torque 20 Nm +/- 12%, +120? +/- 5?. +120°+/- 5° ROTATION ANGLE

4 240 ₽
13

420431850 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

5 600 ₽
14

420673495 Exhaust Manifold

Exhaust Manifold

147 700 ₽
15

420440372 Hex./Torx Flange Screw M8 x 25. Tightening Torque 23 Nm +/- 12%

Hex./Torx Flange Screw M8 x 25. Tightening Torque 23 Nm +/- 12%

380 ₽
