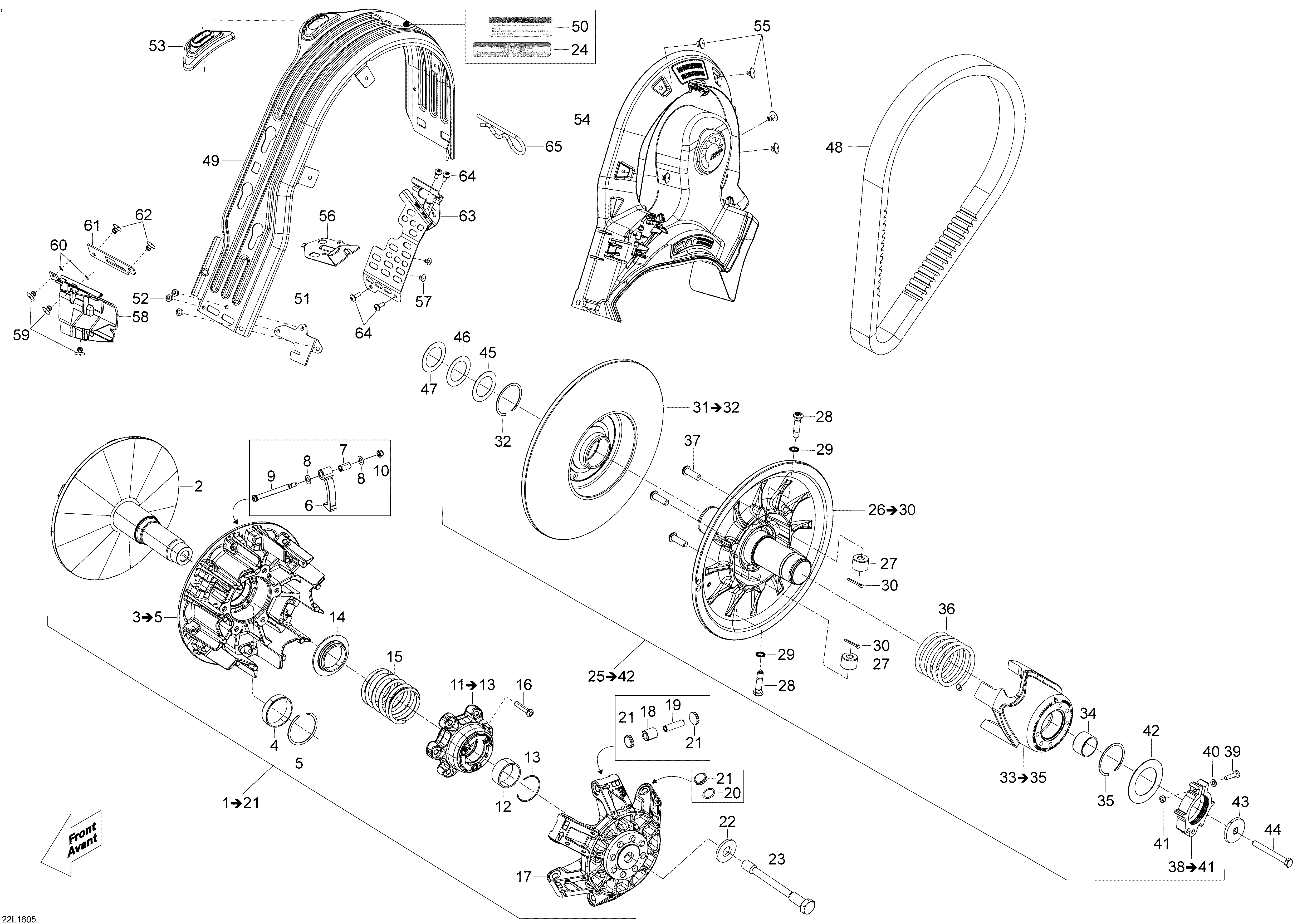

05- Pulley System для BRP Lynx 49 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
2417223867 Fixed Flange Ass'yFixed Flange Ass'y
-
3417223855 Sliding Flange Ass'y. Includes 3 To 5, Model-600 ACESliding Flange Ass'y. Includes 3 To 5, Model-600 ACE
-
3417223763 Sliding Flange Ass'y. Includes 3 To 5, Model-900 ACESliding Flange Ass'y. Includes 3 To 5, Model-900 ACE
-
4417222758 Journal BearingJournal Bearing
-
5293370037 CirclipCirclip
-
6417223508 Ramp (716). Model-600 ACERamp (716). Model-600 ACE
-
6417223679 Ramp (735). Model-900 ACERamp (735). Model-900 ACE
-
8417223255 Washer. Model-600 ACEWasher. Model-600 ACE
-
8417223660 Washer. Model-900 ACEWasher. Model-900 ACE
-
9417223694 Axle RampAxle Ramp
-
10232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223907 Spring Cover Ass'y. Includes 11 To 13, Model-600 ACESpring Cover Ass'y. Includes 11 To 13, Model-600 ACE
-
11417223650 Spring Cover Ass'y. Includes 11 To 13, Model-900 ACESpring Cover Ass'y. Includes 11 To 13, Model-900 ACE
-
13293370065 CirclipCirclip
-
14417223752 Spring SeatSpring Seat
-
15417223747 Spring (Red / White, 356-600N / 80-135lbs). Model-600 ACESpring (Red / White, 356-600N / 80-135lbs). Model-600 ACE
-
15417224085 Spring (Yellow / Red, 446-690N / 100-155lbs). Model-900 ACESpring (Yellow / Red, 446-690N / 100-155lbs). Model-900 ACE
-
16250000580 Torx Button Head Screw M6 x 30Torx Button Head Screw M6 x 30
-
17417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223767 RollerRoller
-
19417223257 Roller AxleRoller Axle
-
20293300169 O-RingO-Ring
-
21417223919 Slider ShoeSlider Shoe
-
22250200144 Spring WasherSpring Washer
-
23417300432 Drive Pulley BoltDrive Pulley Bolt
-
24516005503 Drive Pulley Bolt DecalDrive Pulley Bolt Decal
-
26417127351 Fixed Flange Ass'y. includes 26 To 30Fixed Flange Ass'y. includes 26 To 30
-
27417127016 RollerRoller
-
28417127294 StudStud
-
29250200009 Lock Washer M8Lock Washer M8
-
30250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
31417127366 Sliding Flange Ass'y. Includes 31 To 32Sliding Flange Ass'y. Includes 31 To 32
-
32293370049 CirclipCirclip
-
33417127391 Cam Ass'y (41/45?). Includes 33 To 35, Model-600 ACECam Ass'y (41/45?). Includes 33 To 35, Model-600 ACE
-
33417127474 Cam Ass'y (47/40?). Includes 33 To 35, Model-900 ACECam Ass'y (47/40?). Includes 33 To 35, Model-900 ACE
-
34417127318 BushingBushing
-
35293370049 CirclipCirclip
-
36417127344 Spring (Pink, 204-367N / 46-83lbs). Model-600 ACESpring (Pink, 204-367N / 46-83lbs). Model-600 ACE
-
36417127467 Spring (Red, 182-313N / 41-70lbs). Model-900 ACESpring (Red, 182-313N / 41-70lbs). Model-900 ACE
-
37250000757 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
38415129604 Pulley Adjuster Ass'y. Includes 38 To 41Pulley Adjuster Ass'y. Includes 38 To 41
-
39205052544 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
40234051410 Flat Washer M5Flat Washer M5
-
41232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
42417127155 WasherWasher
-
43517302322 Strength WasherStrength Washer
-
44207287544 Hex. Cap Screw M8 x 75Hex. Cap Screw M8 x 75
-
45417300252 Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)
-
46417300265 Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)
-
47504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
48417300127 Drive Belt. Model-600 ACEDrive Belt. Model-600 ACE
-
48417300383 Drive Belt. Model-900 ACEDrive Belt. Model-900 ACE
-
49417300382 Belt GuardBelt Guard
-
50516006900 Belt Guard Security DecalBelt Guard Security Decal
-
51417300423 Front BracketFront Bracket
-
52390909200 RivetRivet
-
53417300381 GuideGuide
-
54417300441 CVT Air DuctCVT Air Duct
-
55293150103 Pop Rivet 3/16Pop Rivet 3/16
-
56417300445 StopperStopper
-
57390909200 RivetRivet
-
58417300430 Front SupportFront Support
-
59293150104 Pop Rivet 3/16Pop Rivet 3/16
-
60517225900 Flat WasherFlat Washer
-
61417300421 ReinforcementReinforcement
-
62390909100 RivetRivet
-
63417300448 Belt Guard BracketBelt Guard Bracket
-
64250000742 Torx Truss Screw M5 x 14Torx Truss Screw M5 x 14
-
65114045200 Hair PinHair Pin
