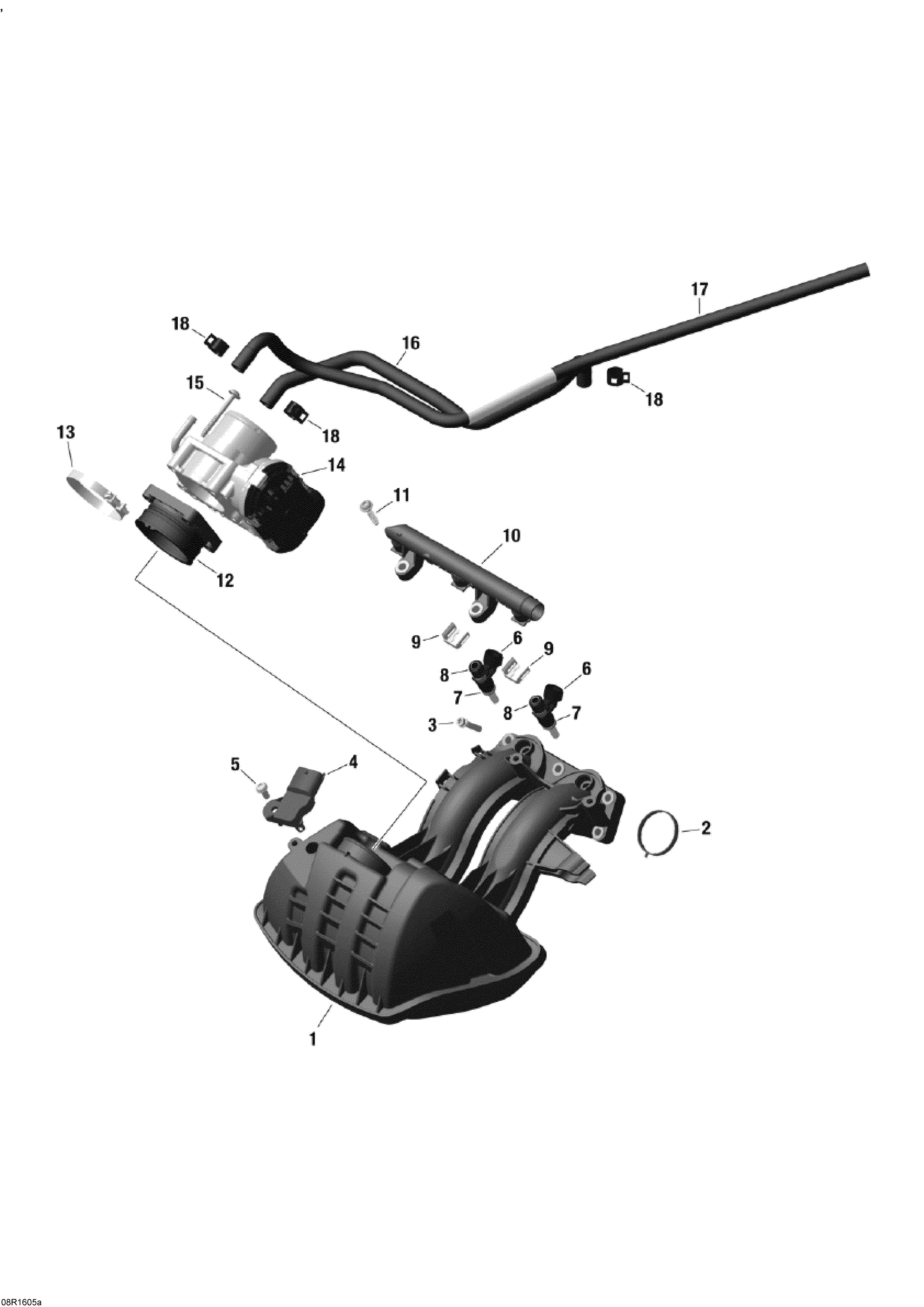

02- Air Intake Manifold And Throttle Body - 600 ACE для BRP Lynx 49 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1420867025 Airbox Ass'y. Includes 1 To 2Airbox Ass'y. Includes 1 To 2
-
2420431660 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
-
4707000995 Pressure/Temp SensorPressure/Temp Sensor
-
5420641588 Torx PT Screw M6 x 16. Tightening Torque 6 Nm +/- 12%Torx PT Screw M6 x 16. Tightening Torque 6 Nm +/- 12%
-
6420874838 Injection Valve (Deka VII Type 0). Includes 6 To 8Injection Valve (Deka VII Type 0). Includes 6 To 8
-
7420431890 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
8420631220 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
9420853030 Injector ClipInjector Clip
-
10420874960 Fuel RailFuel Rail
-
11420441573 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
-
12420867110 Connecting SocketConnecting Socket
-
13420251830 Hose Clamp. Tightening Torque 0,9 Nm +/- 12%Hose Clamp. Tightening Torque 0,9 Nm +/- 12%
-
14420893148 Throttle Body Ass'yThrottle Body Ass'y
-
15420441588 Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%
-
16420201490 Molded HoseMolded Hose
-
17420201495 Molded HoseMolded Hose
-
18420853511 Spring ClampSpring Clamp
