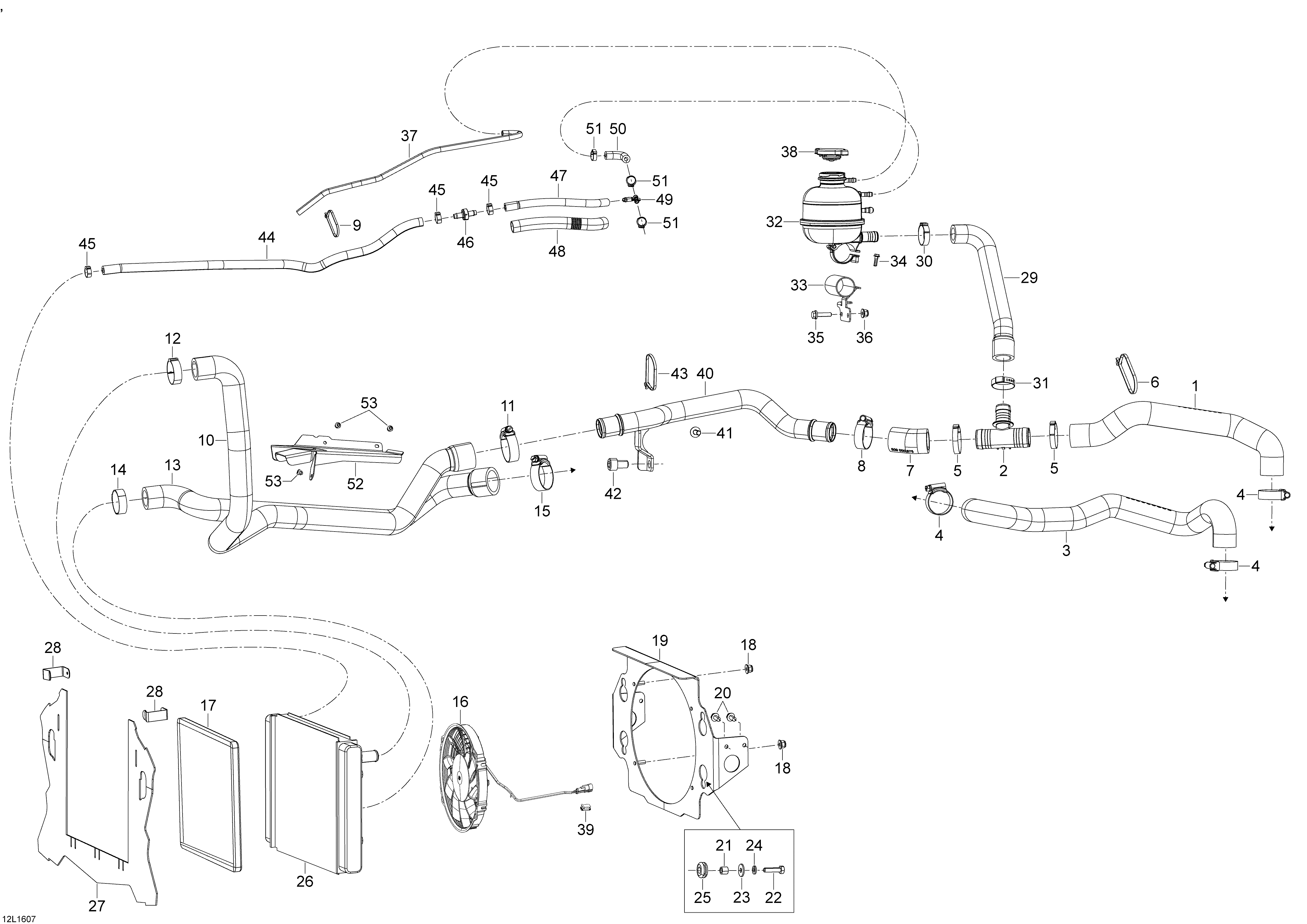

01- Cooling System для BRP Lynx 69 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1509000894 HoseHose
-
2509000372 T-FittingT-Fitting
-
3509000895 HoseHose
-
4509000443 Gear ClampGear Clamp
-
5509000181 Gear ClampGear Clamp
-
6293750008 Tie Rap 350mmTie Rap 350mm
-
7509000675 Radiator HoseRadiator Hose
-
8509000443 Gear ClampGear Clamp
-
9414115200 Tie Rap 180mmTie Rap 180mm
-
10509000780 HoseHose
-
11509000443 Gear ClampGear Clamp
-
12293650165 Crimp ClampCrimp Clamp
-
13509000781 HoseHose
-
14293650165 Crimp ClampCrimp Clamp
-
15509000443 Gear ClampGear Clamp
-
16509000838 Cooling FanCooling Fan
-
17509000718 D-SealD-Seal
-
18233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
19509000791 Radiator SupportRadiator Support
-
20207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
21605453745 BushingBushing
-
22207162044 Hex. Cap Screw M6 x 20Hex. Cap Screw M6 x 20
-
23234062410 Flat WasherFlat Washer
-
24234161431 Lock WasherLock Washer
-
25709000582 GrommetGrommet
-
26509000787 RadiatorRadiator
-
27509000700 Air DeflectorAir Deflector
-
28509000703 Deflector ClipDeflector Clip
-
29509000663 Filling HoseFilling Hose
-
30509000442 Gear ClampGear Clamp
-
31293650099 Crimp ClampCrimp Clamp
-
32509000421 Coolant TankCoolant Tank
-
33509000856 Reservoir SupportReservoir Support
-
34241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
35207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
36233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
37276000048 HoseHose
-
38509000180 Pressure capPressure cap
-
39710000992 ClipClip
-
40509000825 Water PipeWater Pipe
-
41250000717 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
42205501644 Socket Screw M10 x 16Socket Screw M10 x 16
-
43414115200 Tie Rap 180mmTie Rap 180mm
-
44509000407 HoseHose
-
45293650140 Crimp ClampCrimp Clamp
-
46509000153 Check ValveCheck Valve
-
47509000765 HoseHose
-
48415080000 Protector TubeProtector Tube
-
49293710140 Y-ConnectorY-Connector
-
50509000799 HoseHose
-
51293650046 Crimp ClampCrimp Clamp
-
52509000839 DeflectorDeflector
-
53390909200 RivetRivet
