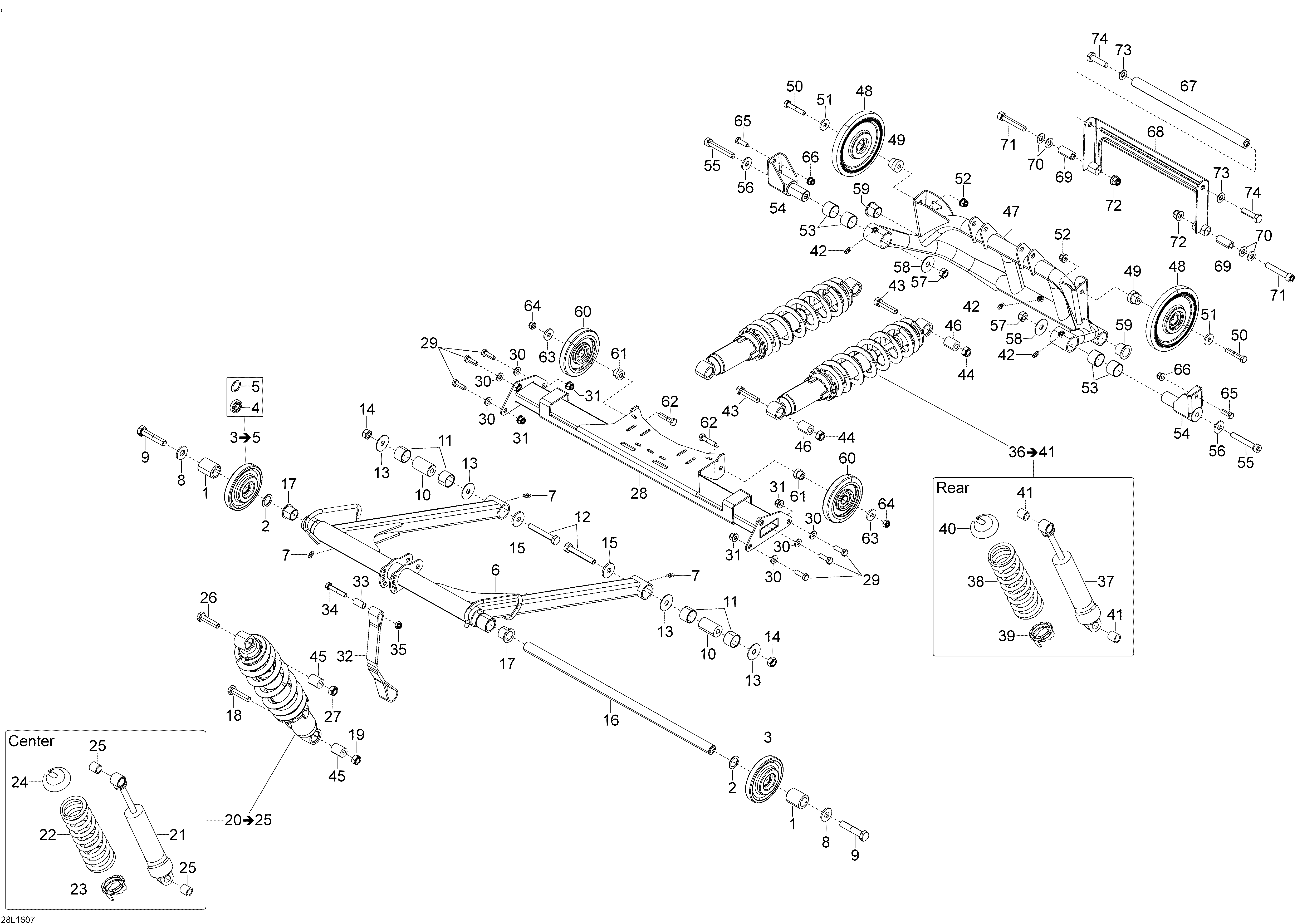

08- Rear Suspension B для BRP Lynx 69 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1503194469 SleeveSleeve
-
231013 ShimShim
-
3503192611 Wheel 100mm. Includes 3 To 5Wheel 100mm. Includes 3 To 5
-
4503190396 Ball BearingBall Bearing
-
6503193092 Front ArmFront Arm
-
7408200700 Grease FittingGrease Fitting
-
8250200131 Spring Conical Washer M12Spring Conical Washer M12
-
9250000555 Hex. Cap Screw M12 x 60Hex. Cap Screw M12 x 60
-
10605354157 ShaftShaft
-
11503193700 BushingBushing
-
12207007044 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
13605355801 WasherWasher
-
14232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15503183300 WasherWasher
-
16503193174 Upper ShaftUpper Shaft
-
1731024 CushionCushion
-
18250000549 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
19232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21503193517 ShockShock
-
22503191848 Spring (237mm - 50-90N/mm)Spring (237mm - 50-90N/mm)
-
23230078 Spring SeatSpring Seat
-
24230076 Spring SeatSpring Seat
-
2531094 Glide BearingGlide Bearing
-
26207004544 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28503193124 Middle BeamMiddle Beam
-
29250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
30503192494 WasherWasher
-
31233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
32503192926 Limiter StrapLimiter Strap
-
33605455335 SleeveSleeve
-
34207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
35232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
37503193521 ShockShock
-
38503193279 Spring (255mm - 50N/mm)Spring (255mm - 50N/mm)
-
39230078 Spring SeatSpring Seat
-
40230076 Spring SeatSpring Seat
-
4131094 Glide BearingGlide Bearing
-
42408200700 Grease FittingGrease Fitting
-
4340134 Socket HD Screw M10 x 45Socket HD Screw M10 x 45
-
44232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
455446652 BushingBushing
-
465446652 BushingBushing
-
47503193877 Rear ArmRear Arm
-
48503193852 Idler Wheel 133mmIdler Wheel 133mm
-
49605454461 SleeveSleeve
-
50207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
5120077 WasherWasher
-
52233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
53503193700 BushingBushing
-
54503193878 Rear Arm SupportRear Arm Support
-
55250000543 Socket HD Screw M10 x 120Socket HD Screw M10 x 120
-
56503191926 WasherWasher
-
57232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
58605355801 WasherWasher
-
5931024 CushionCushion
-
60572043500 Idler WheelIdler Wheel
-
61503193330 SleeveSleeve
-
62207083544 Hex. Cap Screw M8 x 35Hex. Cap Screw M8 x 35
-
6320077 WasherWasher
-
64232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
65250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
66233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
67503192397 ShaftShaft
-
68503194305 Rear SwingRear Swing
-
69503192341 Rear Swing ShaftRear Swing Shaft
-
70234001410 Flat Washer M10Flat Washer M10
-
71205006044 Socket HD Screw M10 x 60Socket HD Screw M10 x 60
-
72233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
73234001410 Flat Washer M10Flat Washer M10
-
74207204044 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
