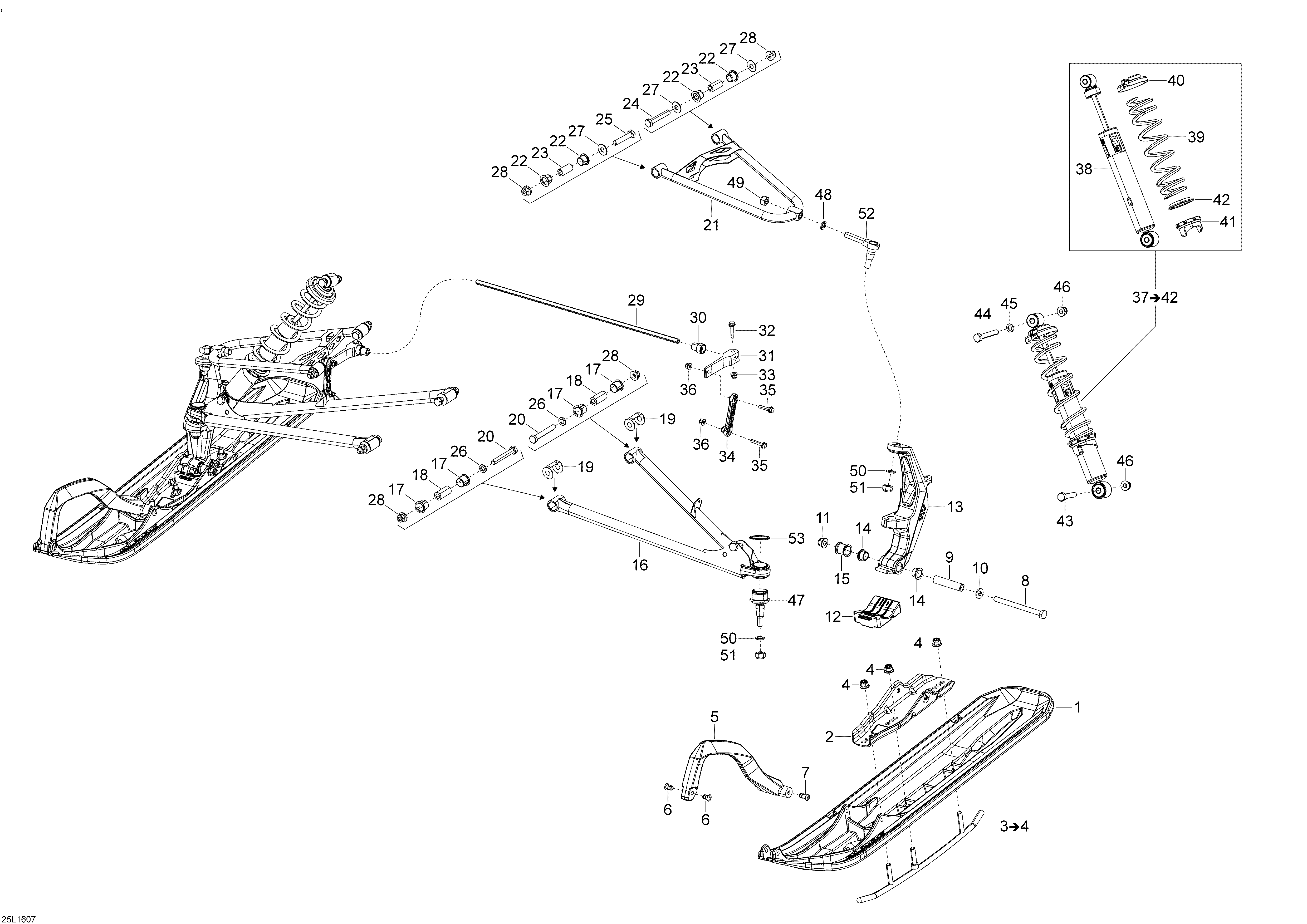

07- Front Suspension and Ski для BRP Lynx 69 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1505073154 Black Blade SkiBlack Blade Ski
-
2505073240 Ski BridgeSki Bridge
-
3860200959 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
5505073108 White HandleWhite Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
9506133300 Ski AxleSki Axle
-
10732900049 WasherWasher
-
11233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
12505073411 Rubber DamperRubber Damper
-
13505072959 Black LH Ski LegBlack LH Ski Leg
-
13505072960 Black RH Ski LegBlack RH Ski Leg
-
14505072690 BushingBushing
-
15505071999 SpacerSpacer
-
16505072664 RH Lower ArmRH Lower Arm
-
16505072665 LH Lower ArmLH Lower Arm
-
17505073330 CushionCushion
-
18505072209 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
21505072374 RH/LH Upper ArmRH/LH Upper Arm
-
22505073329 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
25250000289 Hex. Cap Screw M10 X 50Hex. Cap Screw M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Nut M10Nut M10
-
29505072602 StabilisatorStabilisator
-
30505072064 BushingBushing
-
31505072394 Stabilisator LeverStabilisator Lever
-
32207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
33233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
36233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
38505073342 ShockShock
-
39505072879 Spring (300mm - 18N/mm)Spring (300mm - 18N/mm)
-
40706200881 Spring StopperSpring Stopper
-
41505073625 Adjuster CamAdjuster Cam
-
42503191872 Spring GuideSpring Guide
-
43207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
44207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
45503189564 WasherWasher
-
46233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
47505073636 Ball JointBall Joint
-
48503189276 WasherWasher
-
49250100089 Nut M12Nut M12
-
50234021410 Flat WasherFlat Washer
-
51250100089 Nut M12Nut M12
-
52505072257 Ball JointBall Joint
-
53293370035 CirclipCirclip
