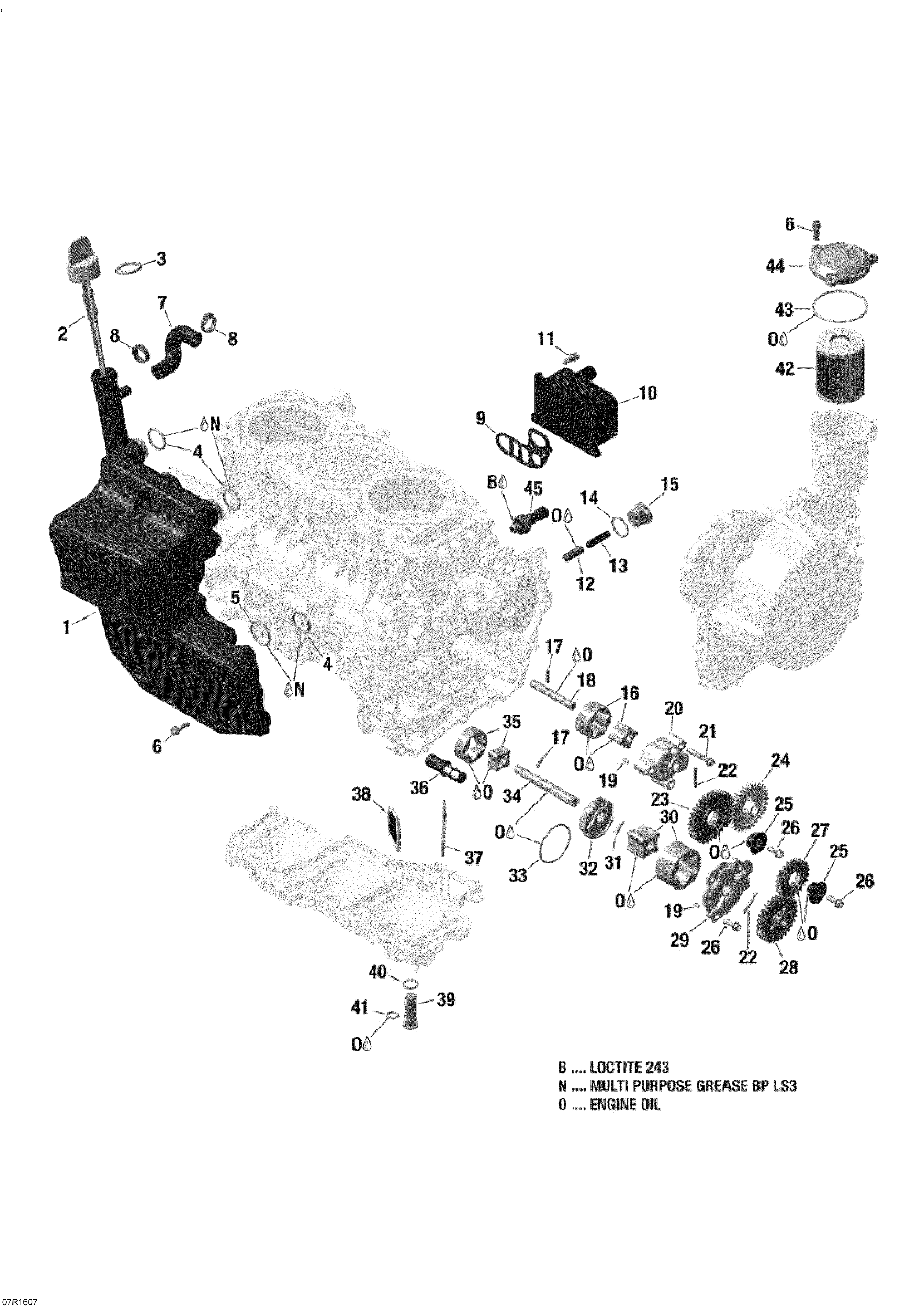

02- Engine Lubrication - 1200 4-TEC для BRP Lynx 69 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1420656386 Oil Tank Ass'y. Includes 1 To 5Oil Tank Ass'y. Includes 1 To 5
-
2420856661 Oil Dipstick. Includes 2 To 3Oil Dipstick. Includes 2 To 3
-
3420431790 Gasket RingGasket Ring
-
4420931634 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
5420430068 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
6420440207 Flanged Torx Screw M6 x 20. Tightening Torque 11 NmFlanged Torx Screw M6 x 20. Tightening Torque 11 Nm
-
7420460021 Air Vent LineAir Vent Line
-
8420951273 ClampClamp
-
9420431283 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
10420891914 Oil RadiatorOil Radiator
-
11420440234 Flange Torx Screw M6 x 25. Tightening Torque 11 NmFlange Torx Screw M6 x 25. Tightening Torque 11 Nm
-
12420256510 Pressure Regulating PistonPressure Regulating Piston
-
13420239445 SpringSpring
-
14420650465 Gasket Ring. Included In Gasket KitGasket Ring. Included In Gasket Kit
-
15420640278 Plug Screw M22 x 1.5. Tightening Torque 45 NmPlug Screw M22 x 1.5. Tightening Torque 45 Nm
-
16420256681 Rotor SetRotor Set
-
17420232731 Needle PinNeedle Pin
-
18420837911 Oil Pump ShaftOil Pump Shaft
-
19420929075 Needle PinNeedle Pin
-
20420611861 Oil Pump HousingOil Pump Housing
-
21420440274 Flanged Torx Screw M6 x 35. Tightening Torque 11 NmFlanged Torx Screw M6 x 35. Tightening Torque 11 Nm
-
22420232431 Needle PinNeedle Pin
-
23420835055 Idle Gear (31 T)Idle Gear (31 T)
-
24420834882 Oil Pump Gear (29 T)Oil Pump Gear (29 T)
-
25420947390 Graduated SpacerGraduated Spacer
-
26420440162 Flanged Torx Screw M6 x 16. Tightening Torque 11 NmFlanged Torx Screw M6 x 16. Tightening Torque 11 Nm
-
27420835051 Idle Gear (22 T)Idle Gear (22 T)
-
28420834887 Oil Pump Gear (28 T)Oil Pump Gear (28 T)
-
29420611980 Oil Pump CoverOil Pump Cover
-
30420256831 Oil Pump RotorOil Pump Rotor
-
31420632220 Needle PinNeedle Pin
-
32420611950 Oil Pump CoverOil Pump Cover
-
33420631830 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
34420837915 Oil Pump ShaftOil Pump Shaft
-
35420256671 Rotor SetRotor Set
-
36420856658 Oil SieveOil Sieve
-
37420856650 Oil SieveOil Sieve
-
38420856655 Oil SieveOil Sieve
-
39420941841 Screw Plug M14 x 1.5. Tightening Torque 30 NmScrew Plug M14 x 1.5. Tightening Torque 30 Nm
-
40420230500 Gasket Ring. Included In Gasket KitGasket Ring. Included In Gasket Kit
-
41420430115 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
42420956123 Oil FilterOil Filter
-
43420650500 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
44420612132 Oil Filter CoverOil Filter Cover
-
45420256915 Oil Pressure Switch. Tightening Torque 12 NmOil Pressure Switch. Tightening Torque 12 Nm
