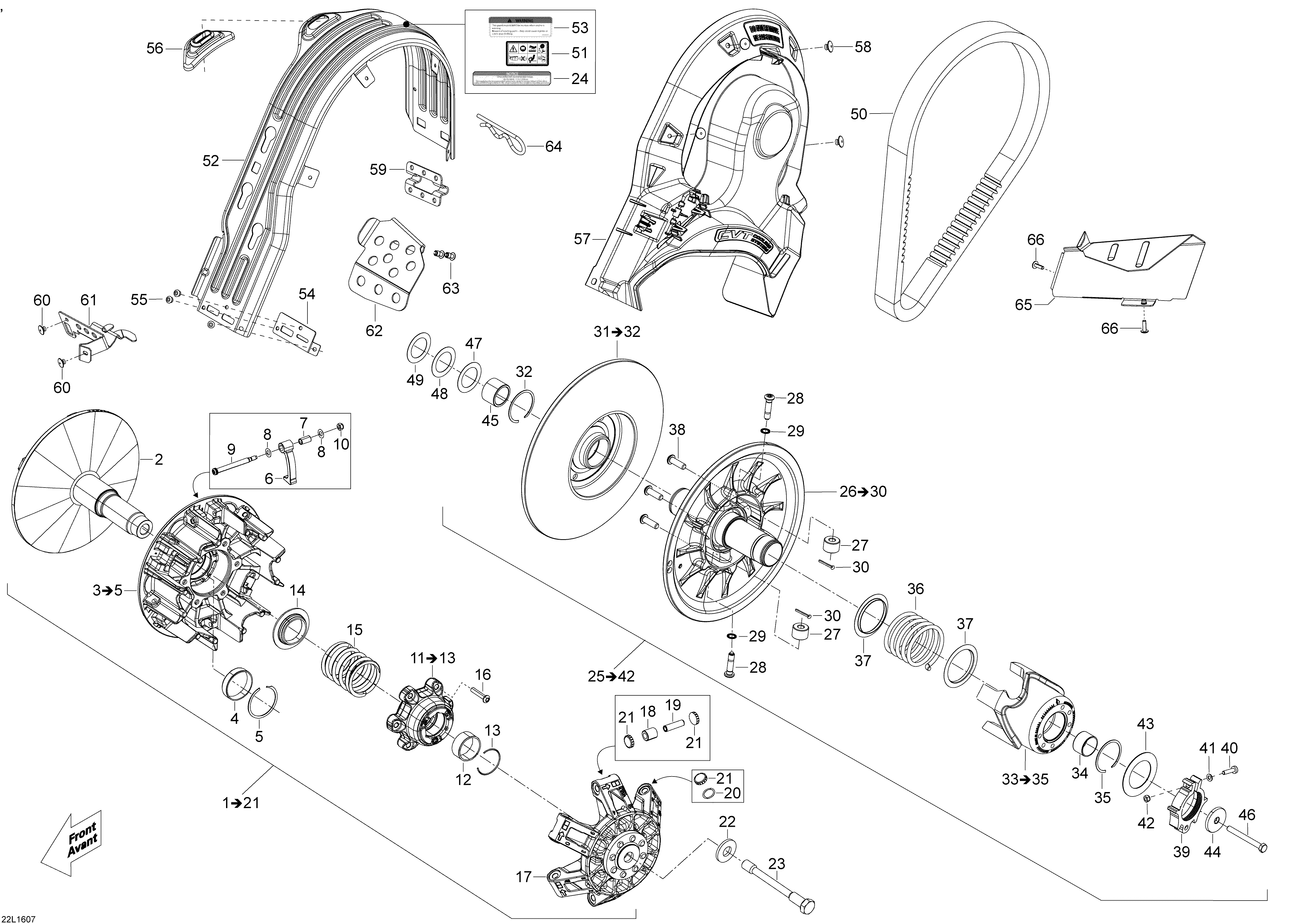

05- Pulley System для BRP Lynx 69 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
2417223867 Fixed Flange Ass'yFixed Flange Ass'y
-
3417224044 Sliding Flange Ass'y. Includes 3 To 5Sliding Flange Ass'y. Includes 3 To 5
-
4417222758 Journal BearingJournal Bearing
-
5293370037 CirclipCirclip
-
6417224228 Ramp (748)Ramp (748)
-
8417223660 WasherWasher
-
9417223694 Ramp AxleRamp Axle
-
10232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223650 Spring Cover Ass'y. Includes 11 To 13Spring Cover Ass'y. Includes 11 To 13
-
13293370065 CirclipCirclip
-
14417223752 Spring SeatSpring Seat
-
15417223745 Spring (Red / Red, 356-667N / 80-150lbs)Spring (Red / Red, 356-667N / 80-150lbs)
-
16250000580 Torx Button Head Screw M6 x 30Torx Button Head Screw M6 x 30
-
17417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223767 RollerRoller
-
19417223257 Roller AxleRoller Axle
-
20293300169 O-RingO-Ring
-
21417223919 Slider ShoeSlider Shoe
-
22250200144 Spring WasherSpring Washer
-
23417300432 Drive Pulley BoltDrive Pulley Bolt
-
24516005503 Drive Pulley Bolt DecalDrive Pulley Bolt Decal
-
26417127466 Fixed Flange Ass'y. includes 26 To 30Fixed Flange Ass'y. includes 26 To 30
-
27417127189 RollerRoller
-
28417127294 StudStud
-
29250200009 Lock WasherLock Washer
-
30250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
31417127366 Sliding Flange Ass'y. Includes 31 To 32Sliding Flange Ass'y. Includes 31 To 32
-
32293370049 CirclipCirclip
-
33417127477 Cam Ass'y (44/40°). Includes 33 To 35Cam Ass'y (44/40°). Includes 33 To 35
-
34417127318 BushingBushing
-
35293370049 CirclipCirclip
-
36417127039 Spring (Black, 700-1350N / 157-303lbs)Spring (Black, 700-1350N / 157-303lbs)
-
37417127116 SwivelSwivel
-
38250000784 Torx Screw M8 x 50, Scotch GripTorx Screw M8 x 50, Scotch Grip
-
39415129604 Pulley Adjuster Ass'yPulley Adjuster Ass'y
-
40205052544 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
41234051410 Flat Washer M5Flat Washer M5
-
42232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
43417127155 WasherWasher
-
44517302322 Strength WasherStrength Washer
-
45417300453 SleeveSleeve
-
46207287544 Hex. Cap Screw M8 x 75Hex. Cap Screw M8 x 75
-
47417300252 Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)
-
48417300265 Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)
-
49504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
50417300383 Drive BeltDrive Belt
-
51516003919 Warning DecalWarning Decal
-
52417300382 Belt GuardBelt Guard
-
53516006900 Belt Guard Security DecalBelt Guard Security Decal
-
54417300380 ReinforcementReinforcement
-
55390909200 RivetRivet
-
56417300381 GuideGuide
-
57417300441 CVT Air DuctCVT Air Duct
-
58293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
59417300413 Belt Guard BracketBelt Guard Bracket
-
60293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
61417300373 Belt Guard BracketBelt Guard Bracket
-
62518327035 Brake Hose CoverBrake Hose Cover
-
63293150163 RivetRivet
-
64114045200 Hair PinHair Pin
-
65417300464 Air DuctAir Duct
-
66250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
