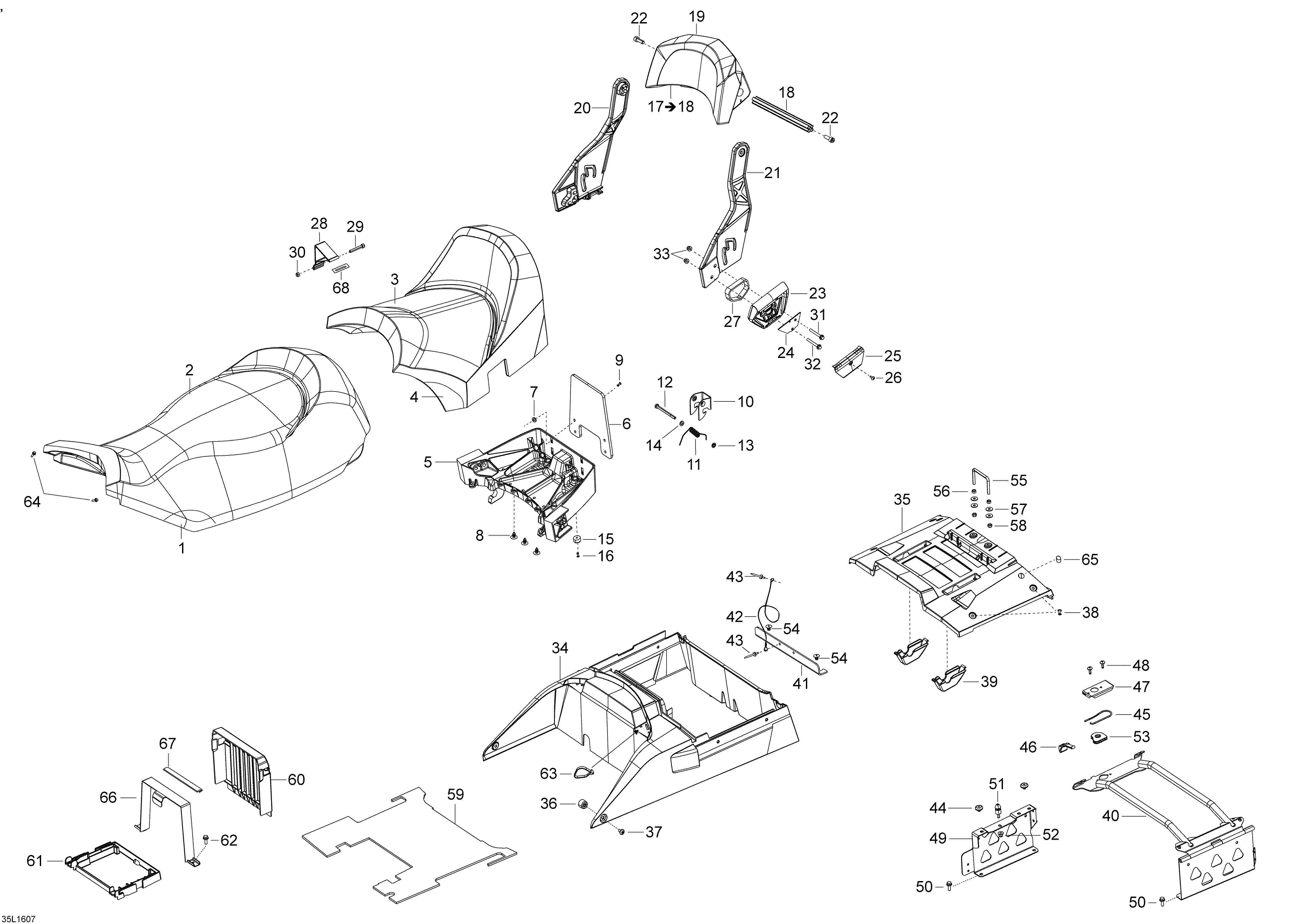

09- Seat для BRP Lynx 69 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1510005999 Front Seat FoamFront Seat Foam
-
2510005722 Black Front Seat CoverBlack Front Seat Cover
-
3510005320 Black Rear Seat CoverBlack Rear Seat Cover
-
4510006094 Rear Seat FoamRear Seat Foam
-
5510004816 Seat BaseSeat Base
-
6510005330 Backrest PlateBackrest Plate
-
7234062410 Flat WasherFlat Washer
-
8414644300 DartDart
-
9293150067 Tri-Fast RivetTri-Fast Rivet
-
10708000144 LatchLatch
-
11708000369 SpringSpring
-
12207068044 Hex. Cap Screw M6 x 80Hex. Cap Screw M6 x 80
-
13732610072 Push NutPush Nut
-
14234061410 Flat Washer M6Flat Washer M6
-
15510006005 Stopper RubberStopper Rubber
-
16293150015 Pop Rivet 1/8''Pop Rivet 1/8''
-
17510006205 Backrest Foam. Includes 17 To 18Backrest Foam. Includes 17 To 18
-
19510005259 Backrest CoverBackrest Cover
-
20510005420 RH ArmRH Arm
-
21510005419 LH ArmLH Arm
-
22250000553 Forming Screw M10 x 25Forming Screw M10 x 25
-
23510005409 HandleHandle
-
24510005936 Support PlateSupport Plate
-
25510005444 Handle CoverHandle Cover
-
26250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
27510005613 AdapterAdapter
-
28510005139 Security LockSecurity Lock
-
29205064044 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
30232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
31207689044 Hex. Flange Screw M8 x 90Hex. Flange Screw M8 x 90
-
32207688544 Hex. Flange Screw M8 x 85Hex. Flange Screw M8 x 85
-
33233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
34510005525 White Storage BoxWhite Storage Box
-
35510005606 White Storage Box CoverWhite Storage Box Cover
-
36510005147 BushingBushing
-
37250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
38293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
39510004999 CoverCover
-
40510005714 Fastening TubeFastening Tube
-
41510005156 Cable Support PlateCable Support Plate
-
42293750070 Seat Retainer CableSeat Retainer Cable
-
43390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
44605452114 Rubber PlugRubber Plug
-
45269700017 Latch SpringLatch Spring
-
46510005072 PullerPuller
-
47510005698 Lock Pin CoverLock Pin Cover
-
48250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
49510005845 Locking PlateLocking Plate
-
50207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
51605452035 Lock PinLock Pin
-
52233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
53510005044 Lock Pin GuideLock Pin Guide
-
54293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
55510004876 Fastener PinFastener Pin
-
56250000135 Nut M6Nut M6
-
5720117 WasherWasher
-
58232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
59510005043 FoamFoam
-
60510005079 Battery CoverBattery Cover
-
61515176804 Battery SupportBattery Support
-
62207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
63605627000 Tie RapTie Rap
-
64250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
65572051500 CapCap
-
66510005250 Battery Strap (30Ah Battery)Battery Strap (30Ah Battery)
-
67605356094 Strap Cover (30Ah Battery)Strap Cover (30Ah Battery)
-
68510005480 Screen PlateScreen Plate
