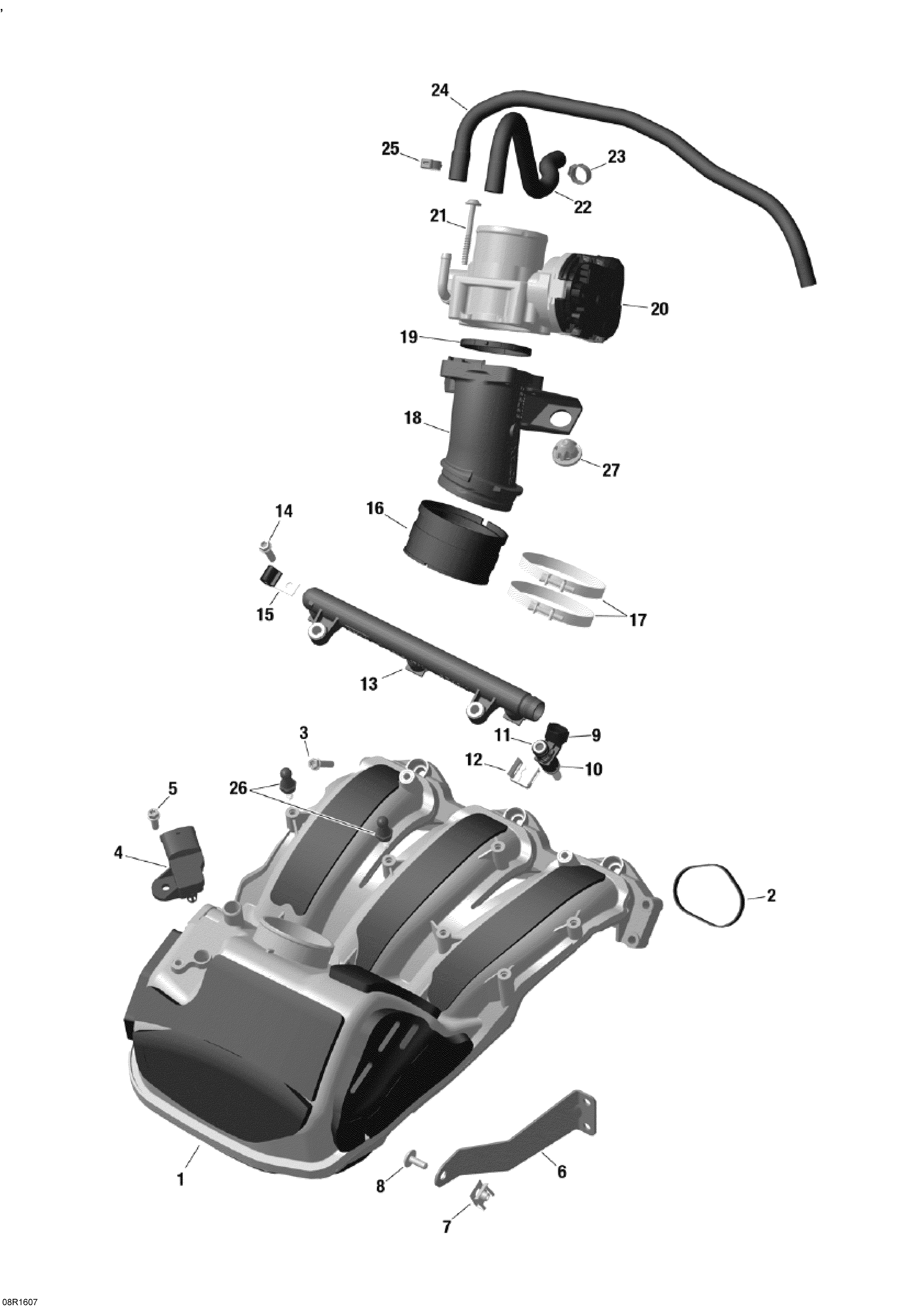

02- Air Intake Manifold And Throttle Body - 1200 4-TEC для BRP Lynx 69 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1420667446 Air Intake Manifold. Includes 1 To 2Air Intake Manifold. Includes 1 To 2
-
2420950745 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420440647 Flange Torx Screw M6 x 30. Tightening Torque 11 NmFlange Torx Screw M6 x 30. Tightening Torque 11 Nm
-
4707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420440162 Flange Torx Screw M6 x 16. Tightening Torque 5,5 NmFlange Torx Screw M6 x 16. Tightening Torque 5,5 Nm
-
6420951011 SupportSupport
-
7420942108 Nut M6Nut M6
-
8420241524 Torx Screw M6 x 16. Tightening Torque 9 NmTorx Screw M6 x 16. Tightening Torque 9 Nm
-
9420874841 Injection Valve. Includes 12 To 14Injection Valve. Includes 12 To 14
-
10420431890 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
11420631220 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
12420853030 ClipClip
-
13420874810 Fuel RailFuel Rail
-
14420440234 Flange Torx Screw M6 x 25. Tightening Torque 11 NmFlange Torx Screw M6 x 25. Tightening Torque 11 Nm
-
15420253150 Cable ClampCable Clamp
-
16420460490 Connecting SocketConnecting Socket
-
17420251209 ClampClamp
-
18420867560 Connecting TubeConnecting Tube
-
19420850130 GasketGasket
-
20420893148 Throttle BodyThrottle Body
-
21420441588 Torx Screw M6 x 50. Tightening Torque 9 NmTorx Screw M6 x 50. Tightening Torque 9 Nm
-
22420460483 Molded HoseMolded Hose
-
23420851458 ClampClamp
-
24420822666 Molded HoseMolded Hose
-
25420853303 ClampClamp
-
26420441840 Distance Screw. Tightening Torque 5 NmDistance Screw. Tightening Torque 5 Nm
-
27420201630 Rubber CapRubber Cap
