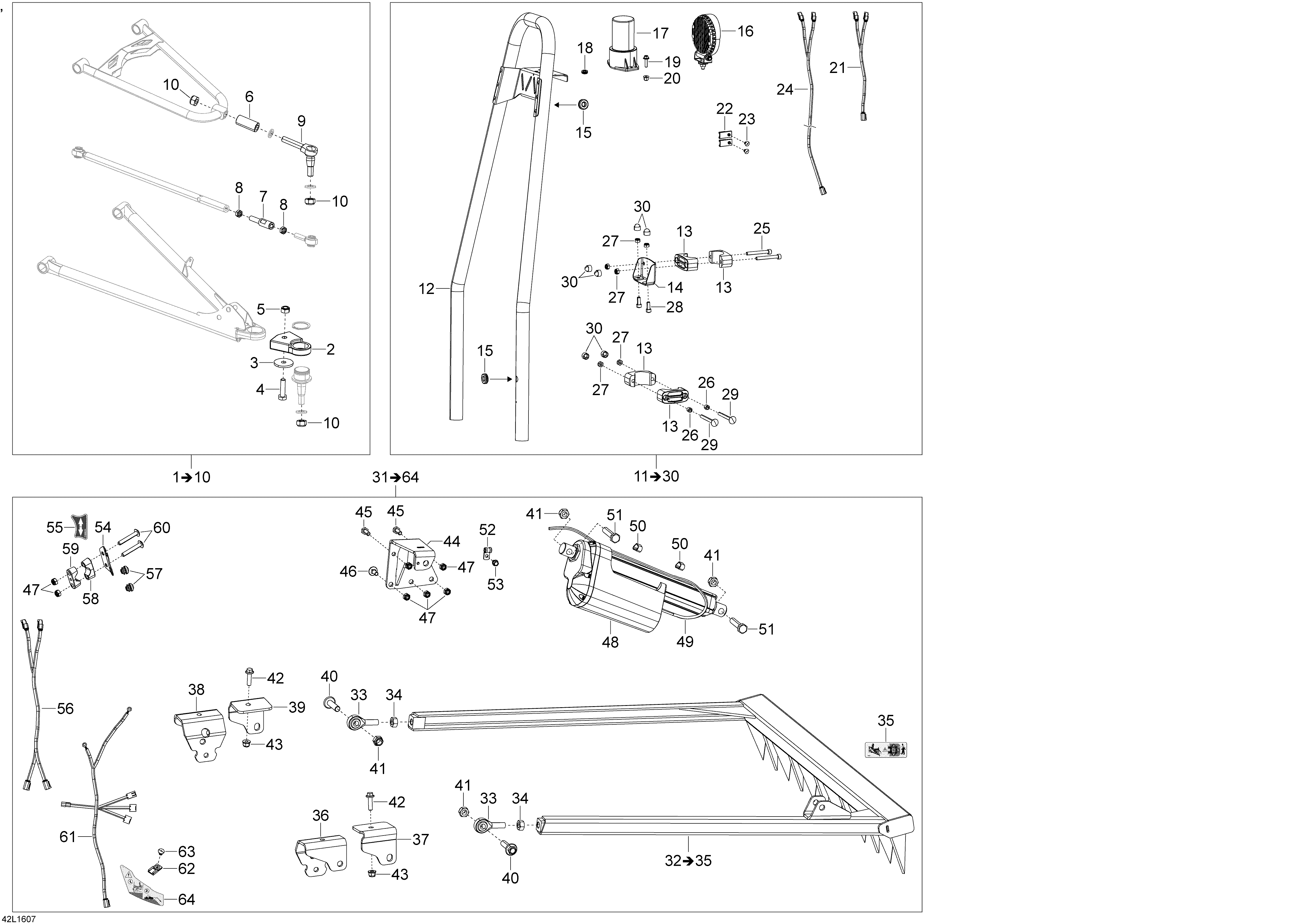

11- Optional для BRP Lynx 69 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1860200835 MS Kit. Includes 1 To 10MS Kit. Includes 1 To 10
-
2505073304 Lower Arm ExtensionLower Arm Extension
-
3505073305 WasherWasher
-
440014 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
5232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
6505073306 Upper Arm ExtensionUpper Arm Extension
-
7506152609 Tierod ExtensionTierod Extension
-
8732610010 RH Hex. Jam Nut M12RH Hex. Jam Nut M12
-
9505073308 Ball JointBall Joint
-
10250100089 Hex. Nut M12Hex. Nut M12
-
11860200755 Light Bar Kit. Includes 11 To 30Light Bar Kit. Includes 11 To 30
-
12520001337 Beacon Bar Ass'yBeacon Bar Ass'y
-
13520001141 Beacon Bar Half FastenerBeacon Bar Half Fastener
-
14520001202 Beacon Bar Fastening PlateBeacon Bar Fastening Plate
-
15517303756 GrommetGrommet
-
16520001293 Working LED LightWorking LED Light
-
17520001294 Beacon Orange LED LightBeacon Orange LED Light
-
18605628001 GrommetGrommet
-
19207652044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
20233251434 Hex. Flange Elastic Nut M5Hex. Flange Elastic Nut M5
-
21515177364 Accessory HarnessAccessory Harness
-
22270000141 ClipClip
-
23293150144 RivetRivet
-
24515177455 Beacon / Light HarnessBeacon / Light Harness
-
25207788044 Carriage Bolt M8 x 80Carriage Bolt M8 x 80
-
26510005735 SleeveSleeve
-
27232581434 Elastic Stop Nut M8Elastic Stop Nut M8
-
28205082044 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
29250000654 Socket Head Screw M8 x 70Socket Head Screw M8 x 70
-
3028056 CoverCover
-
31860200716 Slope Brake Kit. Includes 31 To 64Slope Brake Kit. Includes 31 To 64
-
32520001166 Brake Assy. Includes 32 To 35Brake Assy. Includes 32 To 35
-
33520001200 Rod EndRod End
-
34250100099 Nut M12Nut M12
-
36520001198 LH Brake Fastening BracketLH Brake Fastening Bracket
-
36520001547 LH Brake Fastening Bracket (MY2015)LH Brake Fastening Bracket (MY2015)
-
37520001320 LH Brake Fastening Bracket SupportLH Brake Fastening Bracket Support
-
38520001199 RH Brake Fastening BracketRH Brake Fastening Bracket
-
38520001548 RH Brake Fastening Bracket (MY2015)RH Brake Fastening Bracket (MY2015)
-
39520001321 RH Brake Fastening Bracket SupportRH Brake Fastening Bracket Support
-
4040099 Hex. Screw M12 x 45Hex. Screw M12 x 45
-
41232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
42207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
43233281434 Hex. Flange Nut M8Hex. Flange Nut M8
-
44520001177 Engine Upper BracketEngine Upper Bracket
-
45207182034 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
46207782044 Carriage Bolt M8 x 20Carriage Bolt M8 x 20
-
47232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
48520001201 Linear ActuatorLinear Actuator
-
49520001291 Linear Actuator CableLinear Actuator Cable
-
50520001235 Cable HolderCable Holder
-
51207125534 Hex. Screw M12 x 55Hex. Screw M12 x 55
-
52715900250 Hose ClipHose Clip
-
53210261040 Hex. Flange Screw M6 x 10Hex. Flange Screw M6 x 10
-
54520001197 Switch BracketSwitch Bracket
-
55516006255 Switch DecalSwitch Decal
-
56515177489 Slope Control Accessory HarnessSlope Control Accessory Harness
-
57515177436 Push Button Rubber CoverPush Button Rubber Cover
-
58506152395 Steering Bar SupportSteering Bar Support
-
59506152610 Steering Bar SupportSteering Bar Support
-
60250000298 Torx Truss Screw M8 x 50Torx Truss Screw M8 x 50
-
61515177365 Accessory HarnessAccessory Harness
-
62270000141 ClipClip
-
63293150144 RivetRivet
-
64516006254 Preadjust Warning DecalPreadjust Warning Decal
