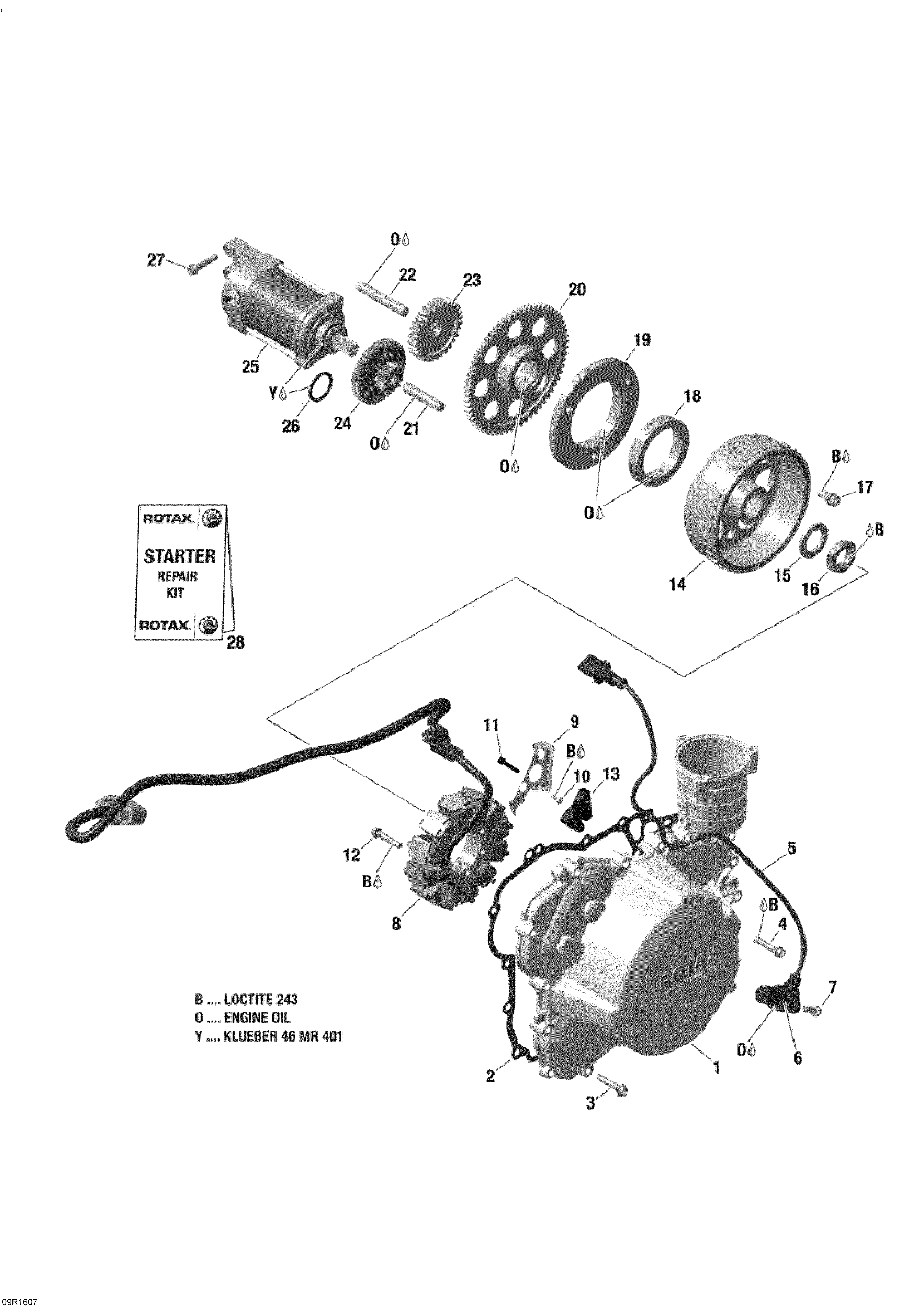

03- Magneto And Electric Starter - 1200 4-TEC для BRP Lynx 69 Ranger (4-Stroke) - 2016
-
№АртикулНазвание
-
1420611833 Ignition CoverIgnition Cover
-
2420430750 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420440647 Flange Torx Screw M6 x 30. Tightening Torque 11 NmFlange Torx Screw M6 x 30. Tightening Torque 11 Nm
-
4420440647 Flange Torx Screw M6 x 30. Tightening Torque 11 NmFlange Torx Screw M6 x 30. Tightening Torque 11 Nm
-
5420966570 Crankshaft Position Sensor. Includes 5 To 6Crankshaft Position Sensor. Includes 5 To 6
-
6420431580 O-RingO-Ring
-
7420440162 Flanged Torx Screw M6 x 16. Tightening Torque 11 NmFlanged Torx Screw M6 x 16. Tightening Torque 11 Nm
-
8420892378 Stator Ass'y (490W, 14V). Includes 8 To 11Stator Ass'y (490W, 14V). Includes 8 To 11
-
9420951192 Cable HolderCable Holder
-
10420640085 Torx Screw 3.5 x 8. Tightening Torque 4 NmTorx Screw 3.5 x 8. Tightening Torque 4 Nm
-
11420651397 Tie RapTie Rap
-
12420440649 Hex./ Torx Flange Screw M6 x 30. Tightening Torque 11 NmHex./ Torx Flange Screw M6 x 30. Tightening Torque 11 Nm
-
13420860052 Rubber SpacerRubber Spacer
-
14420892361 Magneto FlywheelMagneto Flywheel
-
15420945759 Lock WasherLock Washer
-
16420842239 Hex. Nut M22. Tightening Torque 150 NmHex. Nut M22. Tightening Torque 150 Nm
-
17420440854 Flange Torx Screw M8 x 16. Tightening Torque 25 NmFlange Torx Screw M8 x 16. Tightening Torque 25 Nm
-
18420659113 Sprag ClutchSprag Clutch
-
19420659266 Housing Sprag ClutchHousing Sprag Clutch
-
20420434235 Free Wheel Gear (64 T)Free Wheel Gear (64 T)
-
21420229302 Location PinLocation Pin
-
22420229475 Cylindrical Pin M10 x 65Cylindrical Pin M10 x 65
-
23420634606 Gear (30 T)Gear (30 T)
-
24420634741 Double Gear (11/49 T)Double Gear (11/49 T)
-
25420893531 Starter Ass'y. Includes 25 To 26Starter Ass'y. Includes 25 To 26
-
26420250145 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
27420440647 Flange Torx Screw M6 x 30. Tightening Torque 11 NmFlange Torx Screw M6 x 30. Tightening Torque 11 Nm
-
28420881140 Repair KitRepair Kit
