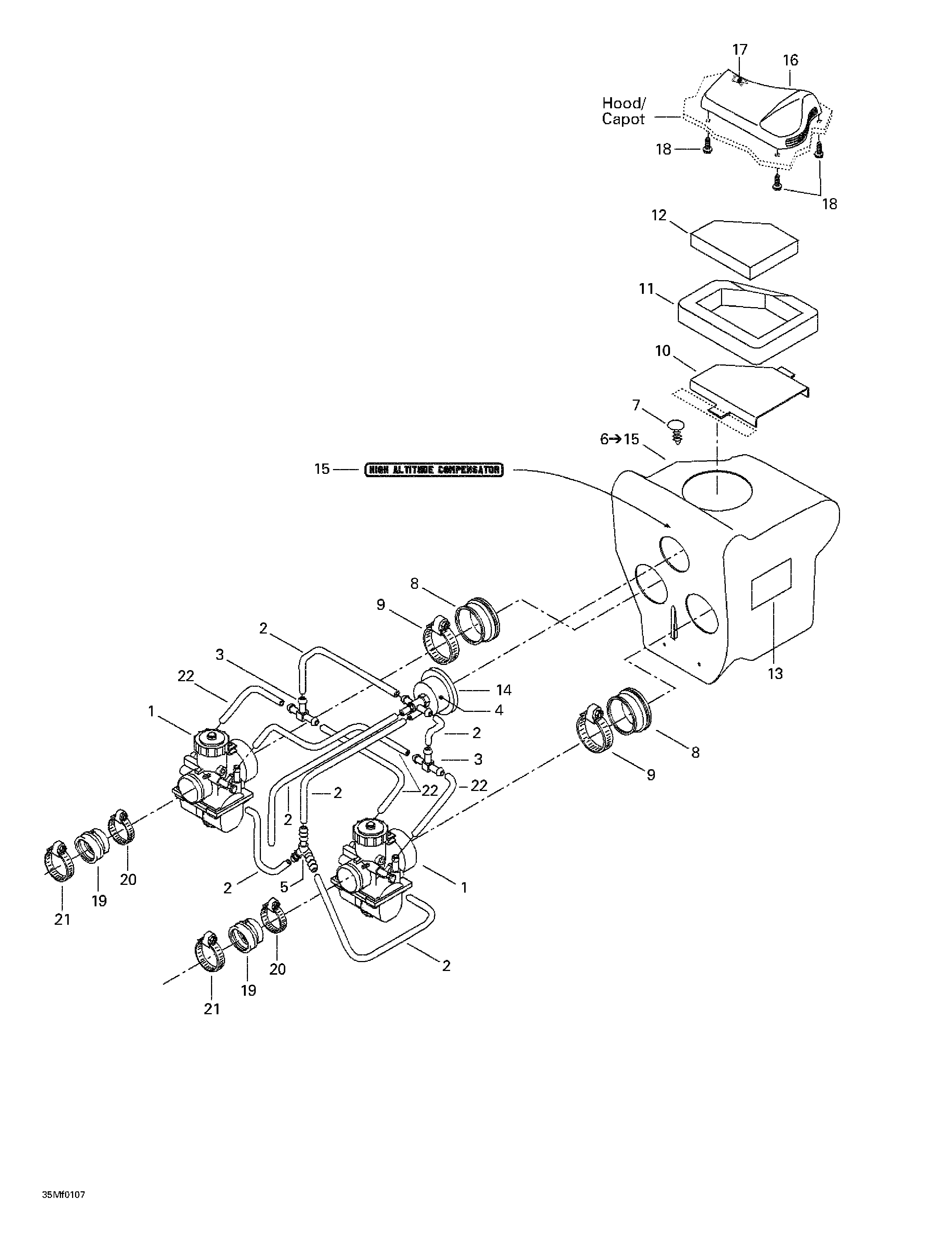

01- High Altitude Compensator (h.a.c.) для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
1403138654 Carburetor VM 34-565 (PTO)Carburetor VM 34-565 (PTO)
-
403138655 Carburetor VM 34-566 (MAG)Carburetor VM 34-566 (MAG)
-
2415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
3572045500 T-FittingT-Fitting
-
4420996468 High Altitude CompensatorHigh Altitude Compensator
-
5420974835 Y-FittingY-Fitting
-
6508000142 Air Intake Ass'y. Includes 6 - 15.Air Intake Ass'y. Includes 6 - 15.
-
7414644300 DartDart
-
8570043600 Adaptor 34 mmAdaptor 34 mm
-
9408801600 Gear ClampGear Clamp
-
10517285900 Intake GrillIntake Grill
-
11415106000 Lower FoamLower Foam
-
12415037600 Air FilterAir Filter
-
13516000130 Caution LabelCaution Label
-
14570044000 H.A.C. AdaptorH.A.C. Adaptor
-
15414857500 H.A.C. DecalH.A.C. Decal
-
16572077900 Intake CoverIntake Cover
-
17414972600 Air FilterAir Filter
-
18243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
19570066800 AdaptorAdaptor
-
20408803800 Gear ClampGear Clamp
-
21414532700 ClampClamp
-
22404161880 Air Vent TubeAir Vent Tube
