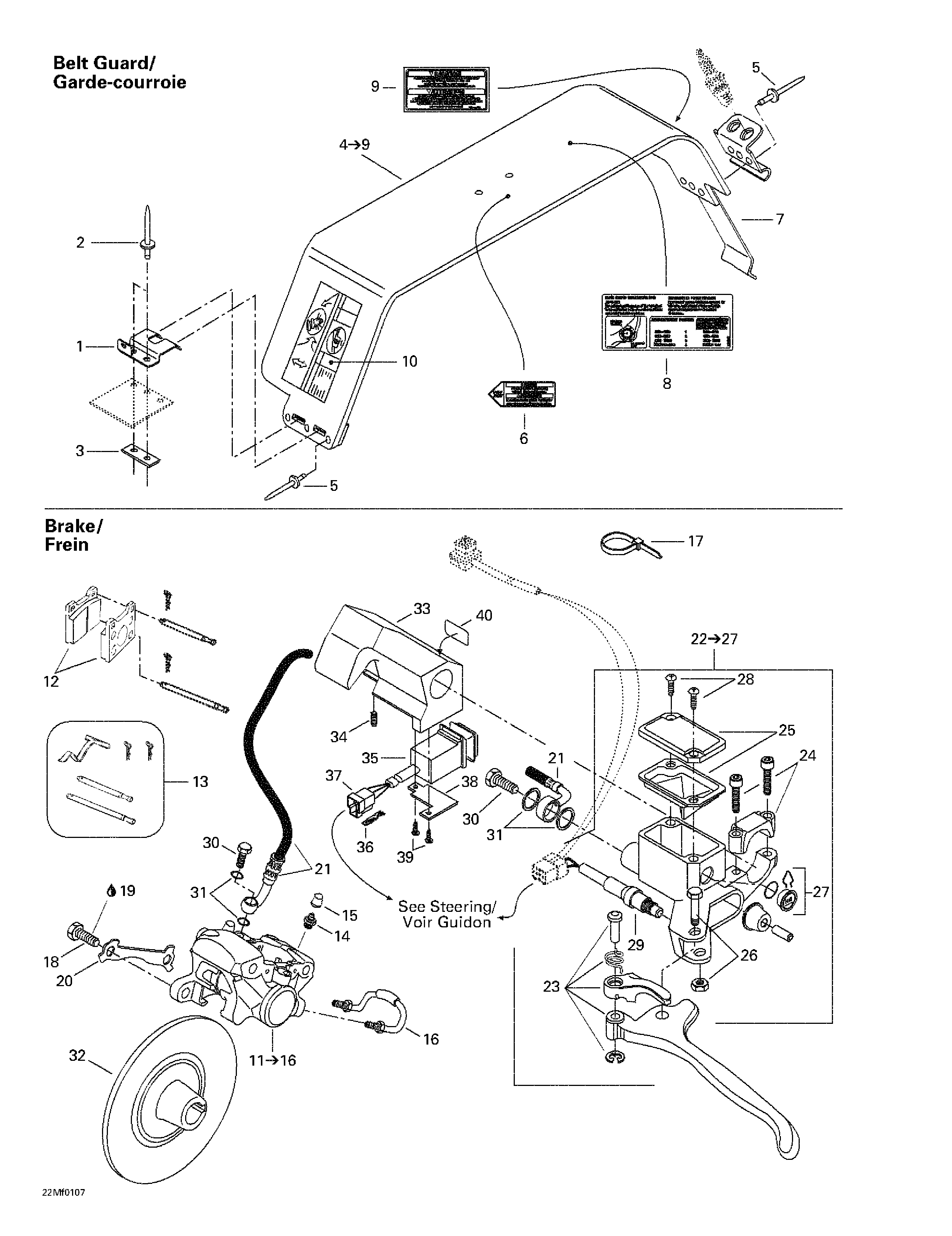

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
1518314200 Pulley Guard BracketPulley Guard Bracket
-
2390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3518207500 ReinforcementReinforcement
-
4417300177 Belt Guard Ass'y. Includes 4 - 9.Belt Guard Ass'y. Includes 4 - 9.
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6516000132 Warning LabelWarning Label
-
7414941800 Tool Box SpringTool Box Spring
-
8516001202 Label CalibrationLabel Calibration
-
9516000681 Label CautionLabel Caution
-
10418001706 Decal Adjustment SuspensionDecal Adjustment Suspension
-
11415034500 Caliper. Includes 11 - 16.Caliper. Includes 11 - 16.
-
12415053600 Brake Pads KitBrake Pads Kit
-
13414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
14414989800 Screw-BleederScrew-Bleeder
-
15414989700 BootBoot
-
16414989900 TubeTube
-
17414115200 Tie RapTie Rap
-
18207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20507029900 Locking TabLocking Tab
-
21507032219 HoseHose
-
22507032294 Master Cylinder. Includes 22 - 27.Master Cylinder. Includes 22 - 27.
-
23415075300 LeverLever
-
24415029800 ClampClamp
-
25415029900 CapCap
-
26415030000 PinPin
-
27414990600 WindowWindow
-
28216141260 ScrewScrew
-
29507032284 Microswitch Ass'yMicroswitch Ass'y
-
30414920500 BoltBolt
-
31414920600 WasherWasher
-
32507032203 Brake DiskBrake Disk
-
33572079500 Dimmer HousingDimmer Housing
-
34414440800 Set Screw M8 x 10Set Screw M8 x 10
-
35515175371 Light SwitchLight Switch
-
36409210000 Male TerminalMale Terminal
-
37409204200 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
38517283800 BracketBracket
-
39414473200 Phillips ScrewPhillips Screw
-
40415025500 Switch DecalSwitch Decal
